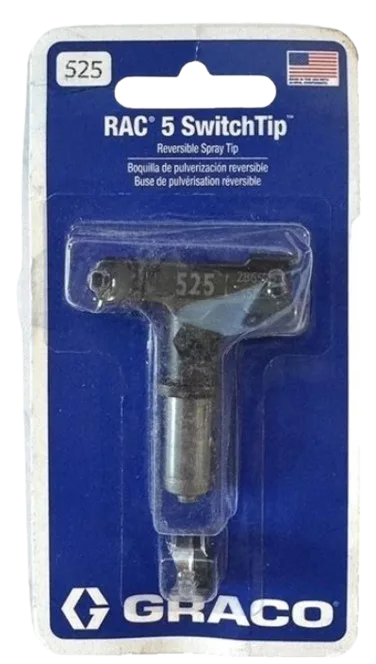

Graco 286525 RAC 5 SwitchTip, 525
5/5
(1 review)
$41.11
$62.75
Save 34%
Available to Order
The Graco 286525 RAC 5 SwitchTip, 525 is a reversible airless spray tip designed for medium-to-wide spray patterns and fast clog clearing on Graco RAC 5 systems.
- Tip Size: 525 (0.025" orifice, approx. 10–12" fan)
- Reverse-A-Clean feature for easy blockage removal
- Compatible with Graco sprayers using RAC 5 HandTite Tip Guard
- Suitable for latex, oil-based paints, stains, and sealers
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatible Machines for Graco 286525 RAC 5 SwitchTip, 525
- Graco Magnum X5 Airless Paint Sprayer
- Graco Magnum X7 Airless Paint Sprayer
- Graco ProX17 Airless Paint Sprayer
- Graco ProX19 Airless Paint Sprayer
- Graco Ultra Max II 390 (and similar Ultra/Ultra Max series)
- Graco Ultra Max II 490 / 495 / 595 models
- Graco Mark V, Mark VII, Mark X Series
- Other airless sprayers using the RAC 5 HandTite Tip Guard
Product Overview
The Graco 286525 RAC 5 SwitchTip, 525 is a reversible airless paint spray tip designed for professional and DIY spray applications. Manufactured with robust materials, this tip produces a consistent spray pattern and is ideal for medium-to-large surface painting tasks.
Key Features
- Reverse-A-Clean design for fast clog clearing
- Produces approximately 10-12" fan width*
- Suitable for many coatings including latex, stain and lacquers
- Operates effectively at high pressures up to ~4050 psi
- Designed for use with the RAC 5 HandTite Tip Guard
Technical Specifications
| Part Number | 286525 |
|---|---|
| Tip Series | RAC 5 SwitchTip |
| Orifice Size | 0.025" |
| Spray Fan Width | Approx. 10-12" |
| Max Pressure | Up to ~4050 psi |
| Guard Compatibility | RAC 5 HandTite Tip Guard |
How It Works
The RAC 5 SwitchTip family uses a reversible nozzle that allows you to clear clogs simply by rotating the tip 180° while spraying. This means less downtime and a more continuous spraying experience during painting jobs.
Frequently Asked Questions
The “525” indicates the tip size: the first digit “5” corresponds to a ~10-inch fan width, and “25” refers to the orifice opening of 0.025 inches. Larger numbers generally mean a higher material flow rate.
This tip is compatible with Graco sprayers that accept the RAC 5 HandTite Tip Guard. Always check your sprayer manual to confirm tip compatibility before use.
This tip works well with a range of coatings, including flat and satin latex paints, stains, sealers, and many oil-based coatings. Always follow coating manufacturer guidance and sprayer recommendations.
Spray tips wear over time. If the spray pattern becomes uneven or narrow at normal pressure, it’s time to replace the tip to maintain finish quality.
