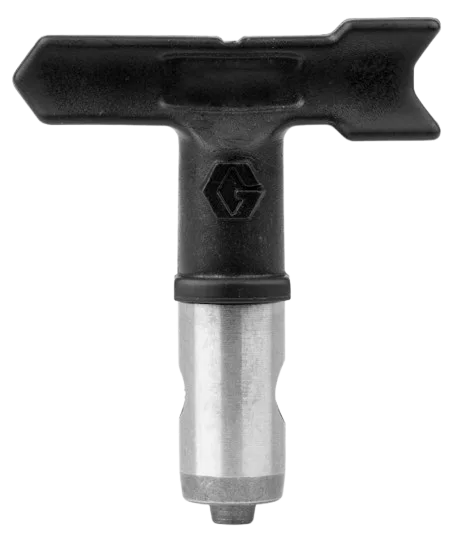

Graco 286543 RAC 5 SwitchTip, 543

Graco 286543 RAC 5 SwitchTip, 543 is a reversible airless spray tip with a 0.043" orifice, delivering a wide, even fan pattern and quick clog-clearing by simply flipping the tip.

Tip Size: 543 (0.043" orifice)
Fan Width: Approx. 10–12 inches
Type: RAC 5 Reverse-A-Clean SwitchTip
Max Pressure: 4050 PSI
Fits: Graco airless guns using RAC 5 tip guards

List Price: $62.75

You save: $21.64 (34.49%)

Sale Price: $41.11

Based on 0 reviews

Description

Compatible Machines & Overview

Graco 286543 RAC 5 SwitchTip, 543 is a reversible airless spray tip that produces a fan pattern of ~10–12 inches and features a 0.043" orifice. The design allows you to flip the tip to quickly clear clogs without tools. It is engineered for use with machines that accept the RAC 5 HandTite Tip Guard. It sprays a wide range of coatings, from lacquer to mastic and latex paints with high working pressures (up to 4050 psi).

Compatible Machines

Graco Ultra Max II 490 Airless Sprayer
Graco Ultra Max II 495 Airless Sprayer
Graco Ultra Max II 595 Airless Sprayer
Graco Ultra Max II 650 PC Pro Lo-Boy & Hi-Boy
Graco Gas-Powered Airless Sprayers (RAC 5 guard compatible)
Graco Contractor Series Airless Sprayers with RAC 5 guards

Technical Specifications

Specification	Details
Part Number	286543
Orifice Diameter	0.043"
Maximum Fan Width	~10–12"
Maximum Working Pressure	4050 psi
Pattern Type	Fan (Airless)
Compatible Materials	Lacquer to Mastic, Latex Paint
Tip Style	Reversible SwitchTip

Key Features

Reverse-A-Clean design lets you clear tip clogs simply by flipping the tip.
Includes OneSeal for reliable sealing with common coatings.
Widely used reversible spray tip with black handle.
Suitable for both residential and commercial spraying.
Hard-wearing design for extended service life.

Frequently Asked Questions

This switch tip is designed to be used with the RAC 5 HandTite Tip Guard, which fits on the end of Graco airless spray guns that accept RAC 5 tips.

Yes — you can flip the tip around to clear blockages without disassembly, making cleanup quicker and easier.

It is suitable for a wide range of coatings including lacquer to mastic and most latex paints, thanks to its design and OneSeal compatibility.
