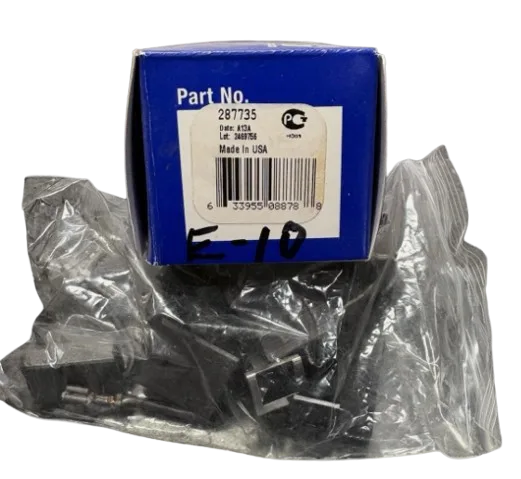

Graco 287735 Brush Repair Kit

Graco 287735 Brush Kit is the OEM motor carbon brush set that restores RPM and stops sparking on popular Ultra/Ultra Max II sprayers. Includes two matched brushes for quick, reliable service.

Fits: Ultra 395/495/595; Ultra Max II 490/495/595; Ultimate Nova 395; Ultimate Super Nova 495/595; FinishPro 395 (AAA)
Solves: intermittent power, low pressure, excessive motor sparking
Includes: (2) brushes with springs/leads
OEM quality: correct composition & spring tension for long motor life

Retail Price: $262

You save: $32.75 (12.50%)

Our Price: $229.25

Based on 0 reviews

Description

Restore Motor Performance with OEM Carbon Brushes

Compatible Machines

This Graco 287735 Brush Repair Kit is the OEM motor carbon brush kit for the following sprayers (all common Stand / Lo-Boy / Hi-Boy / PC variants included):

Ultra 395
Ultra 495
Ultra 595
Ultra Max II 490
Ultra Max II 495
Ultra Max II 595
Ultimate Nova 395
Ultimate Super Nova 495
Ultimate Super Nova 595
FinishPro 395 (AAA)

Product Overview

The Graco 287735 Brush Kit replaces worn motor brushes to restore proper contact, reduce arcing/sparking, and maintain full RPM under load. Using a genuine Graco OEM kit ensures correct brush composition and spring tension for long motor life.

Key Benefits

Fixes intermittent power, surging, or reduced pressure caused by worn brushes.
OEM materials match factory spec for reliable performance and longer service life.
Simple service - no special tools required in most cases.

Specifications

Part Number	287735
Type	Motor carbon brush kit (OEM)
Quantity	Set of two brushes with springs/leads
Compatibility	For Graco electric airless sprayers listed above
Typical Symptoms	Sparking at the motor, loss of pressure/RPM, intermittent start/stop

What's in the Box

(2) OEM carbon brushes with pre-attached springs/leads
Installation guidance (refer to model service manual)

Installation Notes

Unplug sprayer and allow components to cool before service.
Access the motor brush caps, remove old brushes, and install new ones in the same orientation.
Inspect commutator for heavy scoring; clean lightly if required per manual.
After replacement, run the sprayer without load for a short period to seat the brushes.

Frequently Asked Questions

Common signs are increased sparking at the motor, intermittent power, tripping breakers, or reduced pressure/RPM. Visual inspection often shows brushes worn short or unevenly.

Yes - Graco 287735 is an OEM brush kit designed for the Ultra 395/495/595, Ultra Max II 490/495/595, and related Nova/Super Nova models listed above. Using OEM parts ensures proper fit and performance.

Typically no. Most models use removable brush caps. A screwdriver and clean workspace are sufficient. Always disconnect power and follow the model’s service manual.

If the issue is caused by worn brushes or poor motor contact, replacing them usually restores performance. If problems persist, inspect the pressure control, transducer, pump, or power supply per the service manual.
