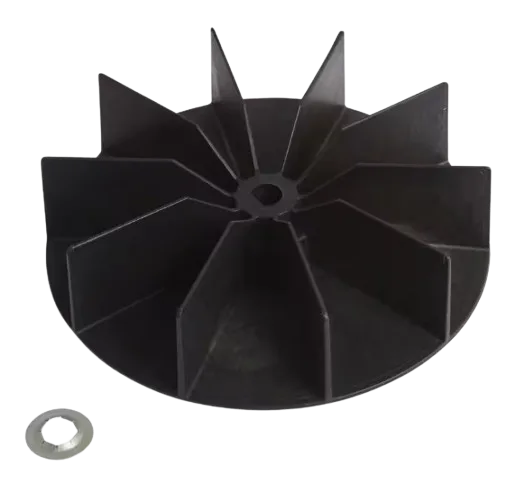

Graco 287770 Magnum ProX Motor Fan Kit

The Graco 287770 Motor Fan Kit keeps your sprayer’s motor cool and running efficiently. Designed for ProX and Magnum series, it helps prevent overheating and ensures smooth operation.

OEM replacement cooling fan kit
Includes fan and push-nut retainer
Fits ProX7, ProX9, ProX17, ProX19, XR, SR7 & ProLTS models
Restores airflow for better motor protection

Retail Price: $68.75

You save: $5.22 (7.59%)

Our Price: $63.53

Based on 0 reviews

Description

Keep Your ProX Motor Running Cool & Reliable

Compatible Machines

The Graco 287770 Motor Fan Kit fits the following Magnum / ProX families and related units:

Magnum ProX7 (Series A–D)
Magnum ProX9 (Series A–D)
Magnum ProX17 — Stand (17G177) & Cart (17G178)
Magnum ProX19 — Stand (17G179) & Cart (17G180)
XR Series (select models referenced in Graco service documentation)
SR7 Series (select models referenced in Graco service documentation)
ProLTS 170 / 190 (retail equivalents of ProX17 / ProX19)
GX Electric (select models; e.g., 17H211 120V / 17H214 230V)

Tip: Check your sprayer’s model/series label to confirm version (A–E, etc.) before ordering.

What is the Graco 287770 Motor Fan Kit?

A genuine motor cooling fan repair kit for select Graco airless sprayers. If the fan is cracked, missing fins, or its retainer loosens, the motor may overheat and the sprayer can shut down. Replacing the fan restores airflow and extends motor life.

What’s Included & Key Benefits

Item	Details
Kit Contents	Motor cooling fan, push-nut/retainer, basic installation guidance.
Type	OEM repair kit for motor cooling (fan replacement).
Use Case	Replace broken/worn fan, resolve overheating, maintain steady performance on longer spray runs.
Fit Families	Magnum ProX7 / ProX9 / ProX17 / ProX19, plus select XR, SR7, ProLTS, and GX Electric models (see list above).

When Should You Replace the Fan?

Sprayer shuts down or feels unusually hot near the motor housing.
Fan blades are chipped, warped, or wobble on the shaft.
Audible rubbing/scraping from the motor endbell area.

Basic Installation Notes

Disconnect power and relieve pressure per Graco safety procedures.
Remove rear cover/endbell as required to access the motor shaft.
Pull off the damaged fan; press on the new fan and secure with the push-nut.
Reassemble shroud/cover; confirm free rotation before power-up.

Frequently Asked Questions

Yes—ProX17 (17G177 Stand, 17G178 Cart) and ProX19 (17G179 Stand, 17G180 Cart) are supported.

Yes—Magnum ProX7 and ProX9 (Series A–D) use this fan kit. Always confirm your series letter on the unit label.

Graco service literature references 287770 as the motor fan kit for select XR, SR7, ProLTS, and GX Electric models. Check your exact model/series (e.g., ProLTS 170/190, GX 17H211/17H214) before ordering.

Overheating near the motor, thermal shutdowns, damaged or missing fan blades, or scraping noises at the motor endbell typically point to a failing fan.

Disconnect power, relieve pressure, remove the rear shroud, swap the fan and push-nut, then verify free rotation before reassembly. If the shaft won’t turn by hand, diagnose motor/gear issues before running.

Related Products

Graco 17J874 Pump Assembly Kit

Retail Price: $476.00

You save: $69.5 (14.60%)

Our Price: $406.50

QTY:

Graco 288716 Inlet Filter 3/4-Inch (Strainer)

Retail Price: $14.10

You save: $3.32 (23.55%)

Our Price: $10.78

QTY:

Graco 115099 Garden Hose Washer Inlet Seal

$0.42

QTY:

Graco 115478 Torx Machine Screw

$0.98

QTY:

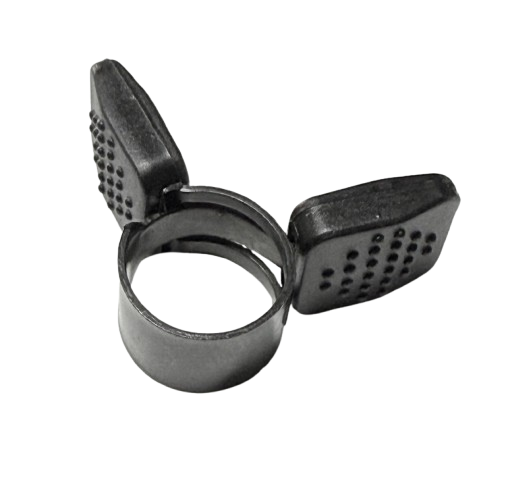

Graco 115489 Drain Tube Clamp

$3.27

QTY:

Graco 115498 Slot Hex Washer Screw

$6.30

QTY:

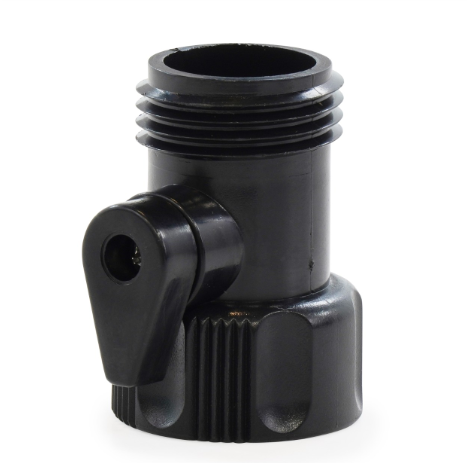

Graco 115648 Power Flush Valve

$8.32

QTY:

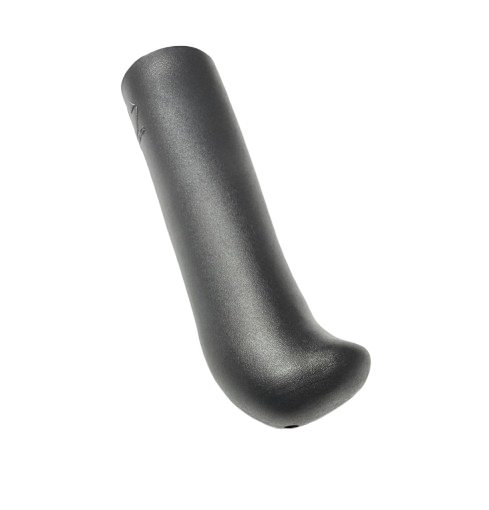

Graco 116139 Handle Grip

$6.50

QTY:
