Graco 243347 Pump Cylinder Repair Q Kit
$386.64
$537.00
Save 28%
In Stock

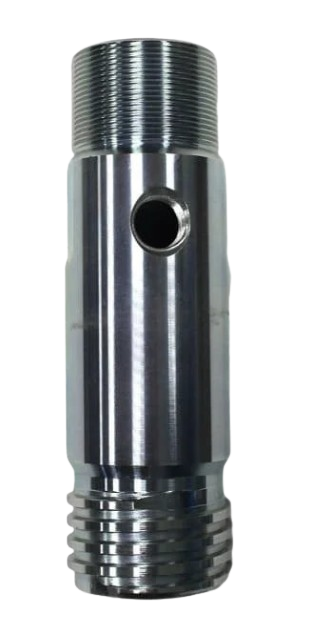

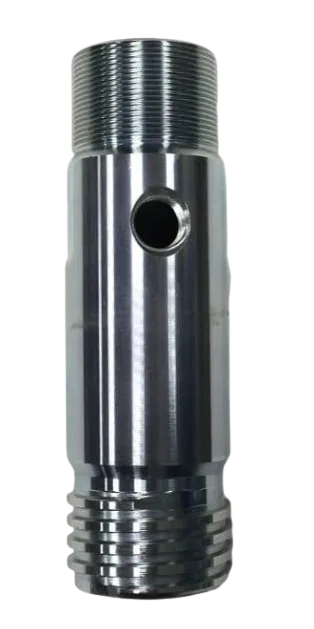

The Graco 243347 Pump Cylinder Repair Q Kit is a genuine OEM repair solution that restores pressure and spray performance by replacing the worn cylinder in professional airless sprayers.
- OEM Part Number: 243347
- Designed for UltraMax II 1095 / 1595 and GMax II 5900 series
- Includes precision-machined cylinder and sealing components
- Ideal fix for pressure loss, pulsation, or worn cylinder surfaces
- Ensures long-lasting, factory-quality spray performance
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatible Machines
This list highlights the primary pro-grade units commonly using the Graco 243347 Pump Cylinder Repair Q Kit. Always confirm by model/serial in your parts manual.
- Graco UltraMax II 1095 (Standard / Hi-Boy)
- Graco UltraMax II 1595 (Standard / Hi-Boy)
- Graco GMax II 5900 (Hi-Boy / Convertible)
- Graco LineLazer 5900 Series
- Graco TexSpray Mark V (Standard)
- Graco Reactor 2 E-XP2
- Graco Reactor 3 E-XP2
Product Overview
The Graco 243347 Pump Cylinder Repair Q Kit restores the displacement pump’s cylinder section to OEM performance on high-output Graco sprayers. Use it to address wear that causes pressure loss, pulsation, or inconsistent spray patterns.
| Key Detail | What You Need to Know |
|---|---|
| OEM Part # | 243347 – Pump Cylinder Repair “Q” Kit |
| Function | Rebuilds the cylinder section of the displacement pump to recover pressure and smooth performance |
| Typical Contents | Hardened/polished cylinder component(s) with precision sealing elements (contents vary by revision/model) |
| Use Case | Pressure drop, blow-by, pulsation, or visible cylinder wear in pro airless / texture / plural-component rigs listed above |
| Fit Guidance | Confirm against your machine’s parts list (model, series, and pump assembly version) |
When to Choose This Kit
- Sprayer struggles to reach/hold working pressure despite good packings and check balls
- Notable scoring or wear in the cylinder bore
- Pulsation at the gun with otherwise healthy filters, tips, and hose
Install Tips (Service-Friendly)
- Depressurize, flush, and lock out power/fuel per manual
- Follow the specific pump assembly diagram for your model/serial
- Lubricate seals per instructions; observe stack orientation
- Torque fasteners to specification and verify alignment
- Prime, test at low pressure, then verify performance at working pressure
Frequently Asked Questions
Match the pump assembly and cylinder callout in your parts manual by model/serial. If your manual lists 243347 (or the cylinder kit supersession), it’s the correct choice.
The cylinder kit targets the cylinder/seal section only, reusing healthy hardware. A complete pump includes the entire displacement pump (rod, seats, balls, housing), costing more but replacing all wear areas at once.
Contents vary by revision. If your manual calls for a packing kit separately, order it together so all wear components are refreshed in one service session.
Many variants share the same pump family, but confirm by serial-based parts list. If your pump’s cylinder callout references 243347, you’re covered regardless of trim package.
Flush properly after use, keep filters/tips sized correctly, and avoid running dry. Periodically check for leaks and re-torque per the service manual after initial hours of use.
