Graco 244224 Pump Repair Kit
$1,192.80
$1,420.00
Save 16%
In Stock
The Graco 244224 Pump Repair Kit restores your sprayer’s pumping performance and pressure consistency. Ideal for professionals maintaining Ultra Max and GMax units.
- Fits Ultra Max / Ultimate MX 1595
- Fits GMax 5900 & 5900 Convertible
- 3600 PSI rated pressure
- Includes packings, valves, seals & sleeve parts
- Ensures OEM performance and long service life
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns

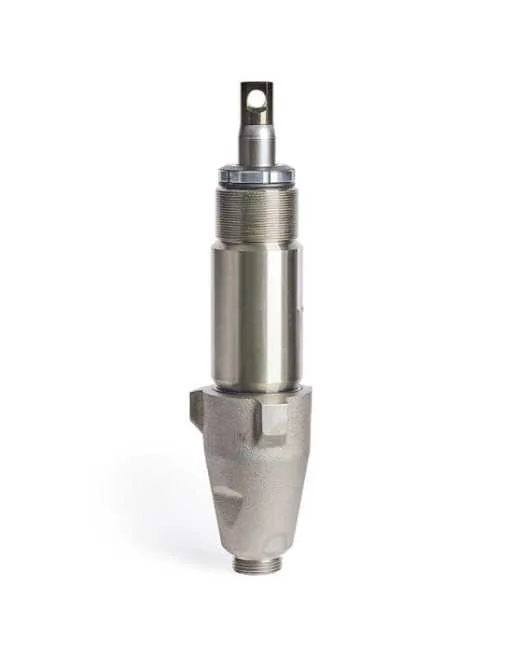

Graco 244224 Pump Repair Kit
The Graco 244224 Pump Repair Kit (displacement-pump rebuild/replacement kit) refreshes the pump section on select professional airless sprayers. It’s ideal when performance drops due to worn packings, valves, or sleeve surfaces.
Compatible Machines
- Ultra Max / Ultimate MX 1595
- GMax 5900
- GMax 5900 Convertible
Key Specifications
| Kit Number | 244224 |
|---|---|
| Pump Type | Displacement pump repair/replacement kit |
| Max Working Pressure | 3600 psi (250 bar) |
| Fluid Inlet | 3/4 in. NPT (Male) |
| Typical Contents | Upper/lower packings, ball & seats/valves, sleeve/cylinder-related wear parts, seals, retainers, assembly lube (contents may vary by series) |
| Use Case | Restore pressure/output, fix leaks or surge, reduce pulsation, improve prime/finish |
Why Choose the 244224 Kit
- OEM fit & performance for the listed machines
- Cost-effective vs. replacing the entire pump
- Restores pressure stability and spray pattern quality
- Includes core wear components to address common pump failures
Fit Confirmation Checklist
- Confirm sprayer model (e.g., Ultra Max/Ultimate MX 1595, GMax 5900).
- Check your pump model/series on the machine ID plate or parts manual.
- Match threads and inlet configuration (3/4" NPT(M)).
- If unsure, compare your current pump’s bill of materials to 244224 contents.
Installation Notes
- Follow the sprayer’s pressure-relief procedure before any service.
- Inspect rod and sleeve for scoring; replace if excessive wear is present.
- Lubricate packings during assembly; torque components to spec.
- Prime with compatible fluid and check for leaks before spraying material.
Frequently Asked Questions
Common signs include loss of pressure, difficulty priming, material bypass into the wet cup, or pulsation at the gun. If packings/valves are worn, a pump rebuild typically restores performance.
The repair kit replaces core wear components (packings/valves/seals). A full pump assembly includes the complete displacement pump body and is used when internal surfaces or the rod/sleeve are damaged beyond service limits.
It fits the models listed above. Some series/region variants differ—always verify your pump model/series in your manual or by the machine ID plate before purchase.
Mostly standard hand tools plus pick tools for seals, thread sealant where specified, and a torque wrench. Keep the area clean to protect new packings. Follow the service manual procedures closely.
The pump is designed for typical architectural coatings (latex, acrylics, primers). Always check your material’s data sheet and ensure filters/tips are sized appropriately for viscosity and solids content.
