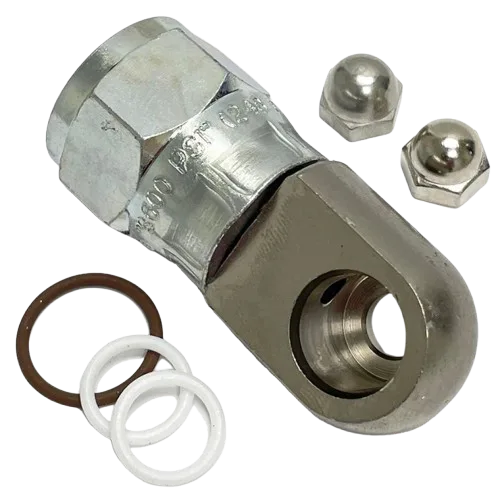

Graco 244363 Swivel Repair Kit
$32.02
$44.10
Save 27%
In Stock
The Graco 244363 Swivel Repair Kit restores smooth swivel performance and fixes leaks in CleanShot™ Shut-Off Valve assemblies used on extension poles and tip attachments.
- Fits CleanShot™ Series A & B
- Rated up to 3600 psi (248 bar)
- Includes swivel body, O-rings, and nuts
- Compatible with Magnum, Ultra Max II, and GMAX II systems
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 244363 Swivel Repair Kit — CleanShot Valve & Extension Systems
Compatible Machines
Fits Graco airless sprayers that use the CleanShot™ Shut-Off Valve and tip/extension poles, up to 3600 psi (248 bar). Commonly used with (examples, not exhaustive):
- Magnum series: X5, X7, ProX17, ProX19, ProX21
- Ultra / Ultra Max II professional series: 395, 490, 495, 595, 695, 795, 1095, 1595 (Standard / ProContractor / IronMan)
- GMAX II gas airless: 3900, 5900, 7900
- Airless rigs outfitted with CleanShot™ valves and tip extensions/pole guns up to 3600 psi
Product Overview
The Graco 244363 Swivel Repair Kit is a genuine replacement kit for the CleanShot™ swivel assembly used on spray tip extensions and pole gun setups. It restores smooth rotation and seals leaks at the swivel, helping maintain even fan patterns and reducing wrist fatigue during cutting-in and high-reach work.
Kit Contents & Key Specs
| Attribute | Details |
|---|---|
| Part Number | 244363 |
| Application | Swivel repair for CleanShot™ Shut-Off Valve used with tip extensions/pole guns |
| Pressure Rating | Up to 3600 psi (248 bar) |
| Series Compatibility | CleanShot™ Series A & Series B |
| Typical Use | Refurbishes leaking or binding swivel to restore smooth rotation and sealing |
| Included Parts | Swivel body/assembly, O-ring(s), nuts (as specified for CleanShot™) |
| Notes | For the swivel section only; not a full CleanShot™ valve replacement |
How to Confirm Fit
- Check your accessory: if you have a CleanShot™ Shut-Off Valve on your gun/extension, this is the specified swivel kit.
- Verify Series A or B on the valve body; both are supported.
- Ensure your system operates at or below 3600 psi.
- Match the swivel’s location (between valve and extension/tip) with your assembly diagram before ordering.
Frequently Asked Questions
Yes—if your X7 setup uses a CleanShot™ valve with a tip extension/pole. This kit services the swivel on that valve, not the sprayer pump itself. Keep system pressure ≤ 3600 psi.
The swivel assembly plus the required O-ring(s) and nuts for servicing the CleanShot™ swivel. It does not include the entire CleanShot™ valve body.
In most cases, yes. The kit replaces the sealing components and swivel body to stop leaks and restore rotation. Inspect mating surfaces and replace damaged extensions or valve parts as needed.
Depressurize and lock-out the sprayer. Clean threads and sealing areas. Lubricate O-rings lightly with compatible fluid. Tighten to manufacturer guidance—do not over-torque. Test at low pressure before returning to service.
It is specific to Graco CleanShot™ assemblies (Series A/B) and rated to 3600 psi. For other valves or higher-pressure rigs, check the corresponding Graco parts list.
