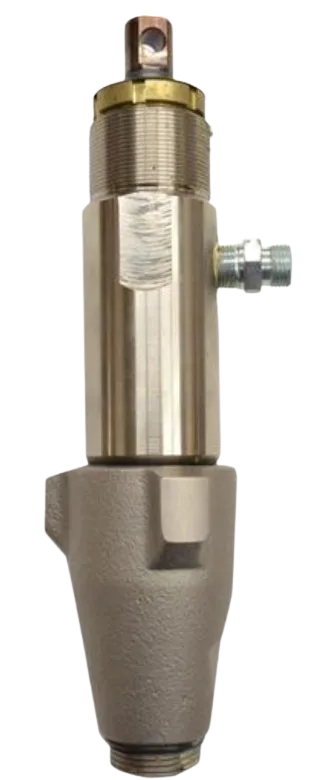

Graco 246257 Displacement Pump

Graco 246257 Displacement Pump is a high-pressure OEM fluid section built for consistent performance and long service life. Ideal for large-scale paint and coating jobs.

  • Max Pressure: 3,600 psi (250 bar)
  • Inlet: 1 npsm (m)
  • Outlet: 3/8 npt (f)
  • Fits: GMax 7900, GH 200, LineLazer IV 250SPS, LineLazer III 200HS

Retail Price: $1965
You save: $314.4 (16.00%)
Our Price: $1650.6
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Premium Replacement Pump for Pro-Grade Airless Units

Compatible Machines

  • Graco GMax 7900
  • Graco GH 200
  • Graco LineLazer IV 250SPS
  • Graco LineLazer III 200HS

What is the Graco 246257 Displacement Pump?

The Graco 246257 Displacement Pump is a complete fluid section designed to restore prime, pressure, and performance on heavy-duty Graco sprayers. It is engineered for high-output, high-pressure coating applications and installs as a direct service replacement on the machines listed above.

Key Specifications

Part Graco 246257 Displacement Pump
Maximum Working Pressure 3,600 psi (250 bar)
Fluid Inlet 1 npsm (male)
Fluid Outlet 3/8 npt (female)
Typical Application High-production airless spraying of paints, primers, and coatings

Features & Benefits

  • Direct-fit replacement for listed machines—minimizes downtime.
  • High-pressure performance to maintain consistent spray pattern and finish quality.
  • Serviceable design for easier maintenance, packing replacement, and longer life.
  • Graco OEM quality and compatibility.

Fitment & Ordering Notes

  • Verify unit model, series (e.g., Series A/B), and serial range before purchase.
  • Do not exceed the maximum working pressure of the lowest-rated system component.
  • Confirm inlet/outlet thread types match your existing hoses and manifold.

Frequently Asked Questions

Yes. It is listed as a replacement fluid section for both GMax 7900 and GH 200, as well as the LineLazer IV 250SPS and LineLazer III 200HS.

The pump is rated up to 3,600 psi (250 bar). Fluid inlet is 1 npsm (male) and fluid outlet is 3/8 npt (female).

Check your machine’s model, series (e.g., Series A), and serial range. Compare the fluid section number on your existing pump or consult the parts manual for your unit’s bill of materials.

In most cases yes, provided they match the listed inlet/outlet thread sizes and are rated above your operating pressure. Inspect and replace worn seals and filters during installation.

Flush with compatible solvent after use, keep filters clean, use recommended packings/lubricants, and avoid running the pump dry. Replace worn check balls and seats as needed.
