Graco 246341 Pump Repair Kit
5/5
(1 review)
$124.79
$181.50
Save 31%
In Stock

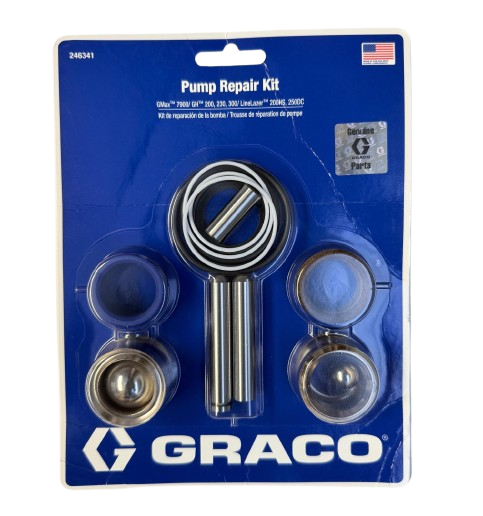

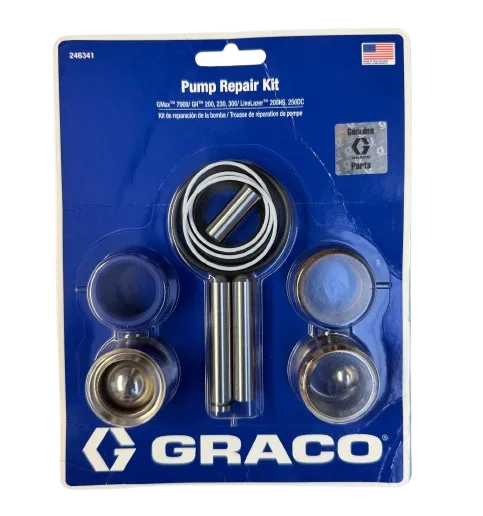

The Graco 246341 Pump Repair Kit rebuilds the fluid section of professional Graco sprayers, restoring pressure, prime, and performance. Ideal for heavy-duty models like GMax and GH Series.
- OEM Part: 246341
- Type: Pump Repair / Packing Kit
- Fits: GMax 7900, HydraMax 225, GH 200/230/300, LineLazer 200HS
- Purpose: Fixes leaks & pressure loss by replacing worn packings and seals
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 246341 Pump Repair Kit — Compatibility & Key Details
Compatible Machines
The Graco 246341 Pump Repair Kit (packing kit) is used to rebuild the fluid section on the following sprayers/pumps. Verify your exact pump/series before ordering.
- GMax 7900 (various configurations)
- HydraMax 225
- GH 200
- GH 230
- GH 300
- LineLazer IV 200HS (select pump assemblies)
- LineLazer 200HS / 250SPS / 250DC (where equipped with the matching pump)
What is the Graco 246341 Pump Repair Kit?
The 246341 is a factory Pump Repair / Packing Kit for high-output Graco airless pumps. It replaces the fluid-section wear parts—typically upper/lower packings, O-rings, seals, and check balls/glands—restoring prime, pressure, and sealing performance without replacing the entire pump.
At-a-Glance
| OEM Part | Graco 246341 |
|---|---|
| Type | Pump Repair / Packing Kit (fluid-section rebuild) |
| Purpose | Fixes leaks, loss of pressure/prime, and poor atomization caused by worn packings and seals. |
| Typical Installation | Disassemble fluid section, replace packings/O-rings/balls/glands per service manual, re-lube, and reassemble. |
| Verify Fit By | Machine model and actual pump assembly/series (best via parts manual or serial number lookup). |
When Should You Use This Kit?
- Sprayer won’t hold prime or frequently loses prime
- Visible fluid leakage from the pump throat or lower
- Pressure drop, pulsation, or poor atomization at normal tip sizes
- Routine overhaul after heavy use or abrasive coatings
Frequently Asked Questions
Check your pump assembly number/series in the parts manual for your sprayer (or provide the machine serial number). Many models (e.g., GMax 7900, GH 200/230/300, HydraMax 225, LineLazer 200HS) use this kit, but some variants use different packings.
Contents vary by pump, but typically include upper/lower packings, O-rings, seals, and related check-valve components (balls/glands). It’s the standard set to rebuild the fluid section.
Basic hand tools, a clean bench, compatible lubricant for packings, and the model-specific service manual are recommended. A soft-jaw vise and torque references help ensure proper reassembly.
Yes—replacing worn packings and seals restores seal integrity, helping the pump build and hold pressure, maintain prime, and reduce pulsation for more consistent atomization.
Keep the pump clean and lubricated, use proper filtration, flush compatible solvents after use, and avoid running the pump dry. Replace worn inlet/outlet checks if you see repeated loss of prime.
