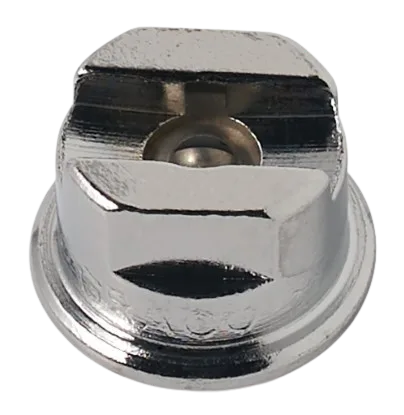

Graco 163861 Silver Flat Tip, 861

The Graco 163861 Silver Flat Tip (861) is a high-flow, flat (non-reversible) airless tip for production use. Verify your gun uses a flat-tip guard and standard 7/8"-14 UNF thread.

Orifice: 0.061 in (861)
Fan: ~16–18 in (typical)
Max Pressure: 5,000 psi (345 bar)
Guard Needed: 220251 Flat Tip Guard (or equivalent)
Thread: 7/8"-14 UNF
Tip Style: Flat, non-reversible (not RAC)

List Price: $54.25

You save: $18.71 (34.49%)

Sale Price: $35.54

Based on 0 reviews

Description

Overview & Compatibility

Compatible Machines

This Graco 163861 Silver Flat Tip (861) is generally compatible when the spray gun/tip guard meets the following requirements:

Uses a 7/8"-14 UNF flat-tip guard (e.g., Graco 220251 Flat Tip Guard).
Airless sprayer system rated up to 5,000 psi (345 bar).
Applications suited for a flat (non-reversible) tip rather than RAC reversible tips.

Key Specifications

Part Number	163861
Name	Silver Flat Tip, 861
Orifice Size	0.061 in (861)
Typical Fan Width	Approx. 16–18 in (at standard spray distance)
Max Working Pressure	5,000 psi (345 bar)
Max Flow	Up to ~3.99 GPM (15.1 L/min)
Thread / Interface	7/8"-14 UNF (flat tip + guard)
Required Guard	Graco 220251 Flat Tip Guard (or equivalent flat-tip guard)
Tip Style	Flat, non-reversible (not a RAC reversible tip)
Series	Graco Silver Flat Tips

When to Use This Tip

High-build or industrial coatings where a robust, high-flow flat tip is preferred.
Architectural production work needing wide coverage and consistent pattern.
Systems configured with a flat-tip guard (not RAC), and operating at ≤ 5,000 psi.

Tip Selection Notes

Code	Meaning
861	“8” ≈ fan width family; “61” = 0.061 in orifice (larger flow for heavier materials)
Flat Tip	Non-reversible; requires a Flat Tip Guard (e.g., 220251). Not for RAC X/IV/V guards.

Frequently Asked Questions

It will fit when your spray gun/guard uses 7/8"-14 UNF and your system is rated to ≤ 5,000 psi. Check your gun manual to confirm the guard type. This is a flat (non-reversible) tip and needs a flat-tip guard (e.g., 220251).

No—this is a flat tip. RAC tips are reversible and require a RAC guard. Use the correct guard type for your system. If you currently have a RAC guard, you would need to switch to a flat-tip guard to use 163861.

The 0.061" orifice and wide fan are suited to heavier coatings and high-production work. Always test pattern/pressure with your coating and follow manufacturer recommendations.
