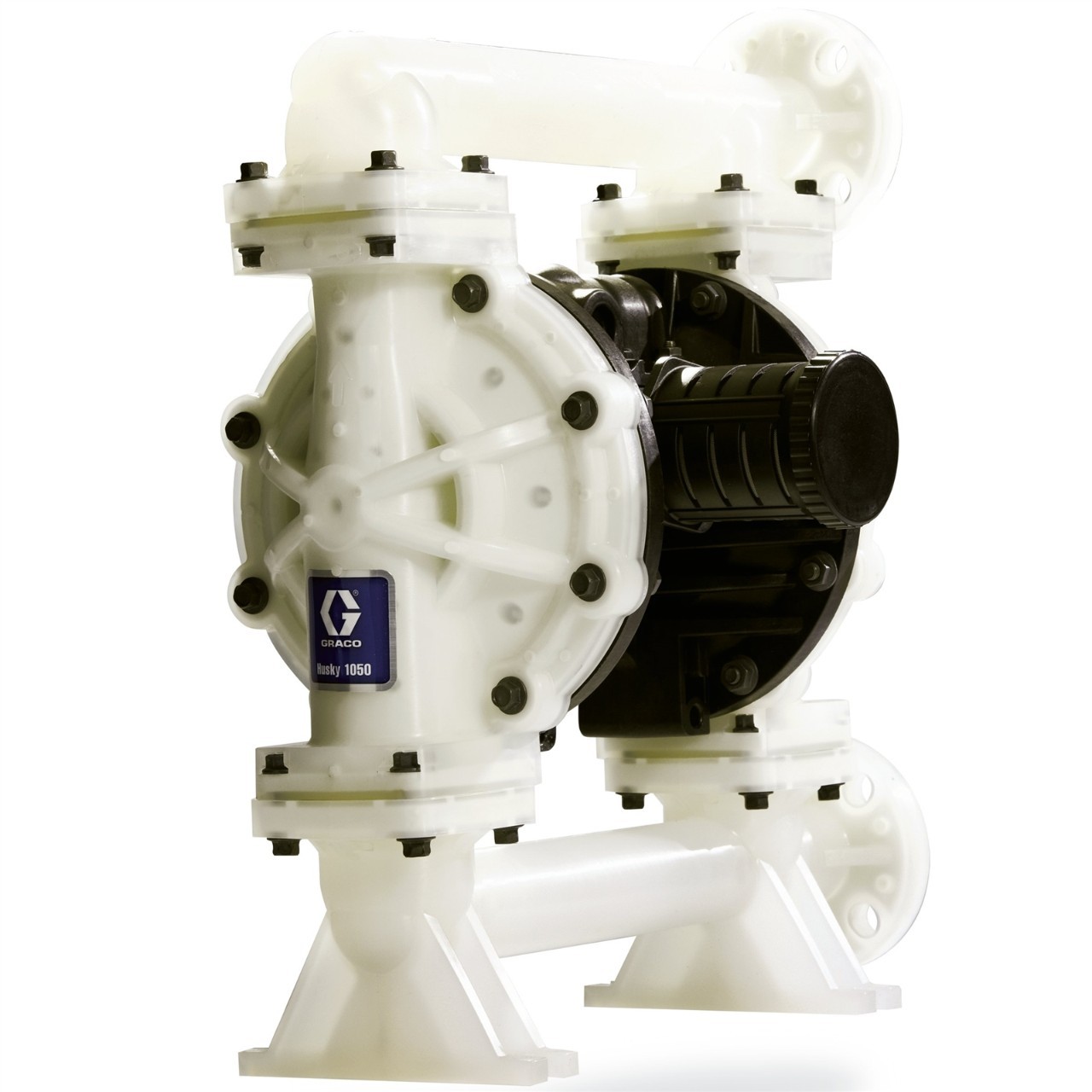

The Graco 649356 Husky 1050C Air-Operated Diaphragm Pump is a durable, air-powered pump designed for efficient and reliable fluid transfer in industrial applications. It offers smooth, stall-free operation and excellent chemical resistance.
The Graco 649356 Husky 1050C Air-Operated Diaphragm Pump is a robust, industrial-grade fluid transfer pump designed for reliable performance in demanding environments. It uses compressed air to deliver consistent, stall-free operation and is well suited for transferring a wide range of low- to medium-viscosity fluids, including chemicals, coatings, water-based materials, and industrial liquids.
This model features a conductive polypropylene fluid section, making it suitable for applications where static dissipation and chemical resistance are important. Its modular design allows easy maintenance while reducing downtime.
| Pump Type | Air-operated double diaphragm (AODD) |
|---|---|
| Port Size | 1 inch inlet / outlet |
| Maximum Flow Rate | Up to 50 GPM (189 L/min) |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Fluid Section Material | Conductive Polypropylene |
| Diaphragm & Seal Configuration | PTFE diaphragms with chemically resistant seals |
| Operation | Stall-free, low-pulsation air valve |
The Husky 1050C is designed for long service life, reduced air consumption, and minimal maintenance. Its air-powered design eliminates the need for electrical connections, making it suitable for hazardous or sensitive environments. The conductive construction also helps support safer operation in static-sensitive applications.
