Compatible Machines & Systems
This pump is supplied as a stand-alone pumping unit and is not restricted to a single OEM machine. It is commonly installed as part of larger fluid-handling systems and industrial setups.
- Chemical transfer and dosing systems
- Water and wastewater treatment skids
- Industrial process pumping stations
- Paint, coatings, and adhesive supply systems
- Bulk fluid transfer and circulation systems
- Manufacturing and production line fluid feed units
Key Features & Benefits
- Air-operated design for safe use in hazardous or explosive environments
- Double diaphragm construction for smooth, low-pulsation flow
- Excellent chemical resistance due to PVDF fluid sections
- Self-priming capability with reliable suction lift
- Handles abrasive, corrosive, and shear-sensitive fluids
- Low maintenance design with reduced downtime
Technical Specifications
| Pump Type | Air-Operated Double Diaphragm |
| Model Series | Husky 1050 |
| Wetted Material | PVDF |
| Maximum Flow Rate | Up to 50 GPM (189 LPM) |
| Maximum Fluid Pressure | 125 PSI (8.6 bar) |
| Port Size | 1 inch |
Applications

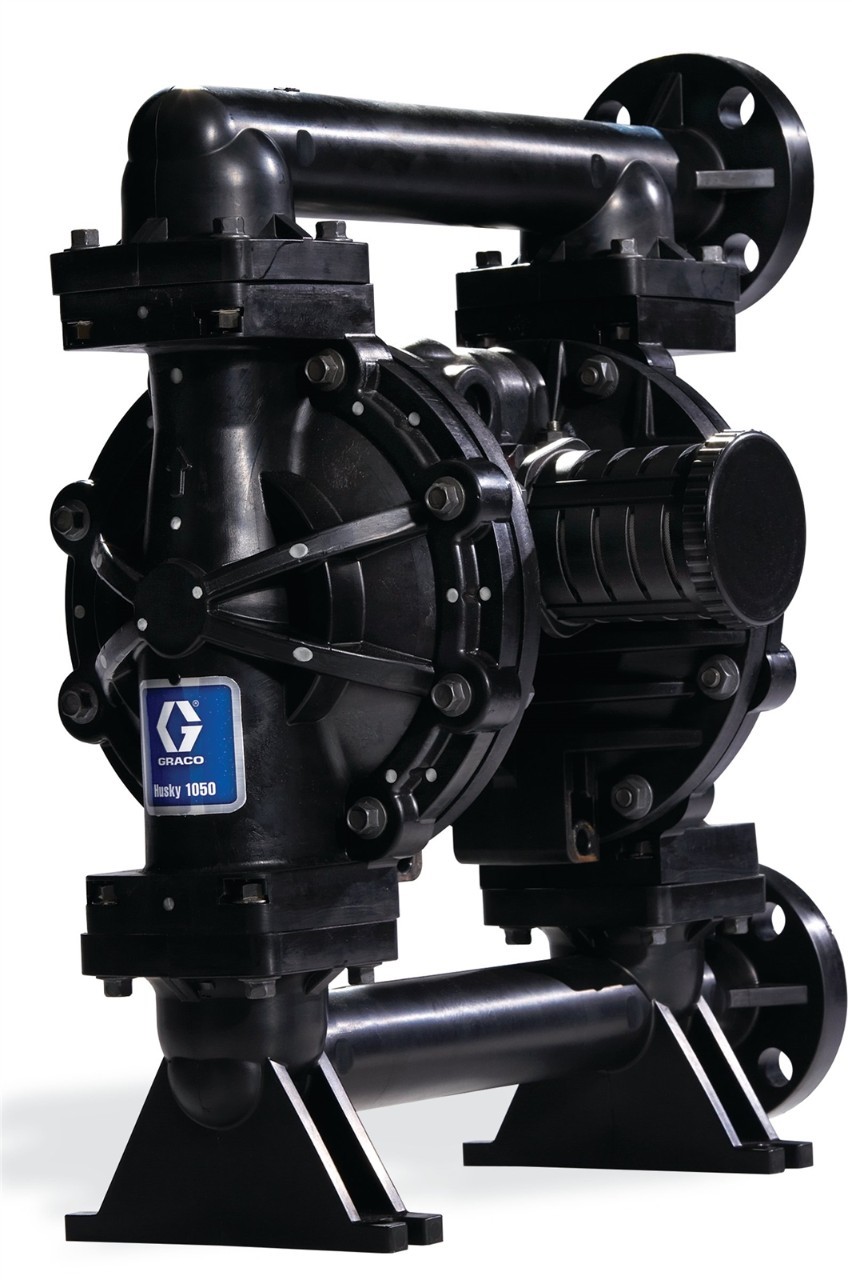

The Graco 649396 Husky 1050 PVDF Pump is widely used across industries where chemical compatibility and consistent performance are essential. Typical applications include transferring acids, solvents, process chemicals, coatings, and industrial fluids in continuous or intermittent operations.
Frequently Asked Questions
Yes. The PVDF wetted components provide excellent resistance to a wide range of corrosive and aggressive chemicals.
No. This pump operates using compressed air, making it suitable for environments where electrical power is limited or unsafe.
Yes. It is commonly installed into existing piping, hose assemblies, or skid-mounted systems with compatible air and fluid connections.
