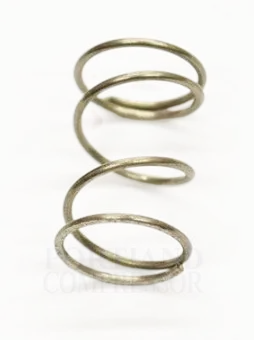

Graco 114069 Compression Spring

The Graco 114069 Compression Spring ensures proper trigger and valve return in HVLP guns, supporting reliable spray performance. Key features:

  • Genuine OEM part for Graco HVLP Edge, Edge II, and Edge II Plus guns
  • Provides consistent trigger/valve return force
  • Durable spring steel for long-lasting operation
  • Prevents misfires and soft trigger issues
  • Essential for maintaining original gun performance

$20.46
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 114069 Compression Spring – OEM Replacement Part

Compatible Machines

  • Graco HVLP Edge Gun – Models 256855, 257092, 256856
  • Graco HVLP Edge II Gun – all variants per parts diagram
  • Graco HVLP Edge II Plus Gun – all variants per parts diagram

Key Specifications

Part Number 114069
Type Compression Spring
Usage Provides trigger/valve return force in HVLP spray guns
Material Durable spring steel per OEM specification

Overview

The Graco 114069 Compression Spring is a genuine OEM component designed to maintain proper trigger and valve return in Graco HVLP guns. It ensures consistent operation, prevents misfires, and supports reliable spray performance.

Installation Notes

  • Check your gun’s exploded parts diagram before installation.
  • Install in the correct orientation to maintain proper valve or trigger function.
  • Replace any worn or weak springs to ensure reliable gun performance.

Benefits of Using OEM 114069

  • Ensures proper trigger and valve return in HVLP guns
  • Prevents misalignment or soft trigger issues
  • Durable OEM steel for long service life
  • Maintains original gun performance and reliability

Frequently Asked Questions

The 114069 Compression Spring provides the necessary trigger or valve return force in Graco HVLP guns, ensuring proper function and preventing misfires.

No. The 114069 spring is designed for specific HVLP gun models such as Edge, Edge II, and Edge II Plus. Always verify with your gun's exploded parts diagram before installation.

Replace the 114069 Compression Spring if it becomes weak, worn, or fails to provide proper trigger/valve return, as this can affect gun performance and consistency.
