Industrial Air Operated Diaphragm Pump Overview

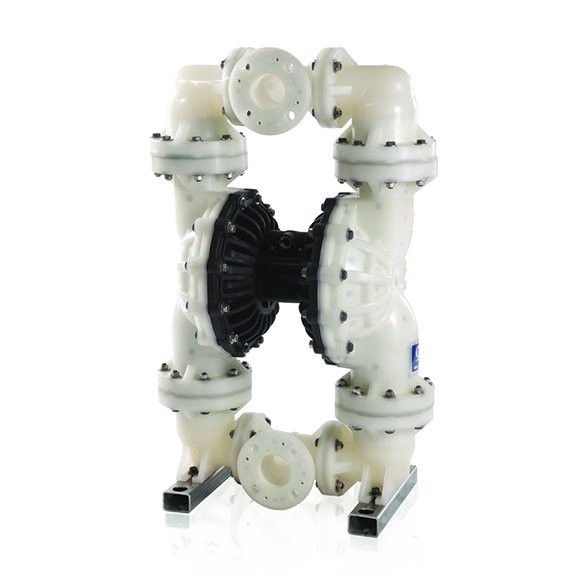

The Graco 652462 Pump 3300P GE/BN/BN/PT is a heavy-duty Husky 3300 air-operated double diaphragm pump designed for high-volume industrial fluid transfer. Built for reliability and efficiency, this pump uses compressed air to move liquids through dual diaphragms, making it suitable for hazardous environments where electric pumps are not ideal.
This configuration includes durable internal materials such as Geolast seats, Buna-N balls, Buna-N diaphragms, and PTFE seals, allowing the pump to handle a wide range of industrial fluids including oils, chemicals, coatings, inks, and wastewater.
Compatible Machines
The Graco 652462 Husky 3300 pump is a standalone industrial fluid transfer pump and is commonly integrated into the following equipment and systems:
- Chemical transfer systems
- Industrial fluid transfer skids
- Bulk tank unloading systems
- Drum transfer and dispensing systems
- Wastewater and sludge pumping units
- Paint, coating, and ink circulation systems
- Oil and lubricant transfer stations
- Industrial processing and batching systems
Key Features
| Feature | Details |
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Series | Husky 3300 |
| Port Size | 3 inch inlet and outlet |
| Operation | Powered by compressed air |
| Seat Material | Geolast |
| Ball Material | Buna-N |
| Diaphragm Material | Buna-N |
| Seal Material | PTFE |
| Applications | Chemicals, oils, coatings, inks, wastewater and industrial fluids |
Performance Benefits
- High flow capability suitable for large volume fluid transfer
- Air-operated design ideal for hazardous environments
- Durable diaphragm construction for extended service life
- Efficient air valve system for reliable operation
- Capable of handling viscous fluids and suspended solids
- Minimal maintenance compared to many mechanical pumps
Frequently Asked Questions
The pump is used for transferring industrial liquids such as chemicals, oils, coatings, inks, and wastewater in manufacturing, processing, and fluid handling systems.
The pump operates using compressed air to move two diaphragms back and forth. This motion creates suction and discharge cycles that move fluid through the pump without the need for electric motors.
With its Geolast seats and Buna-N elastomers, the pump can handle many industrial fluids including oils, light chemicals, coatings, inks, and other compatible process liquids.
Industries such as chemical processing, manufacturing, wastewater treatment, coatings production, and industrial fluid transfer operations commonly use this pump.
