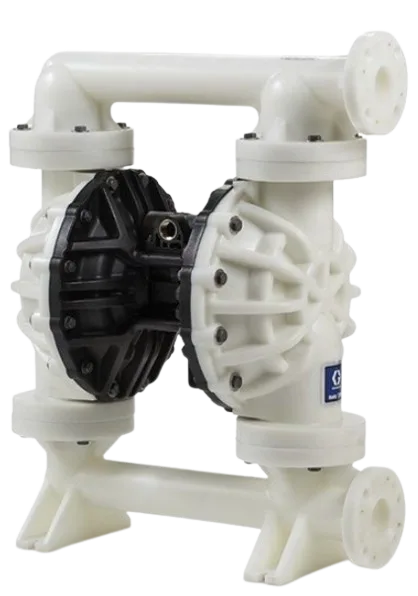

Graco 653528 Husky 2200P P2 Polypropylene Diaphragm Pump
The Graco 653528 Husky 2200P P2 Polypropylene Diaphragm Pump is a high-capacity air-operated pump designed for reliable transfer of chemicals, coatings, wastewater, and other industrial fluids.
- Model: 653528
- Pump Series: Husky 2200
- Pump Type: Air-Operated Double Diaphragm (AODD)
- Material: Polypropylene Fluid Section
- Port Size: 2 in (50.8 mm)
- Max Flow Rate: Up to 200 GPM (757 L/min)
- Max Operating Pressure: 125 psi (8.6 bar)
- Power Source: Compressed Air
- Common Use: Chemical, coating, oil, and wastewater transfer
The Graco 653528 Husky 2200P P2 Polypropylene Diaphragm Pump is a high-performance air-operated double diaphragm (AODD) pump designed for demanding industrial fluid transfer applications. Built with a durable polypropylene fluid section, this pump is ideal for handling corrosive chemicals, coatings, wastewater, and other process fluids while maintaining reliable operation and long service life.
Powered by compressed air, the Husky 2200 pump provides consistent flow and efficient performance without the need for electric motors. Its robust diaphragm design allows it to safely move abrasive or viscous materials, making it suitable for a wide range of industrial pumping systems.
Compatible Machines
The Graco 653528 Husky 2200P P2 pump is commonly integrated into industrial fluid handling systems and process equipment, including:
- Chemical transfer systems
- Industrial coating and paint supply systems
- Bulk fluid transfer skids
- Drum and tote unloading systems
- Water and wastewater treatment equipment
- Industrial process manufacturing lines
- Oil and lubricant transfer systems
- Chemical dosing and fluid circulation systems
Key Features
- Durable polypropylene pump housing for chemical resistance
- Reliable air-operated diaphragm technology for consistent pumping
- Capable of transferring viscous, abrasive, and corrosive fluids
- Energy-efficient pneumatic operation with no electric motor required
- Designed for continuous industrial operation
- Simple maintenance with accessible internal components
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Graco 653528 Husky 2200P P2 Diaphragm Pump |
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Series | Husky 2200 |
| Material | Polypropylene Fluid Section |
| Port Size | 2 Inch (50.8 mm) |
| Maximum Flow Rate | Up to 200 GPM (757 L/min) |
| Maximum Operating Pressure | 125 psi (8.6 bar) |
| Maximum Solids Handling | Up to 3/8 inch (9.5 mm) |
| Power Source | Compressed Air |
| Typical Applications | Chemicals, coatings, wastewater, oils, industrial fluids |
Applications
The Graco Husky 2200P P2 Polypropylene Pump is engineered for high-volume fluid transfer in industrial environments. It is widely used where reliable pumping of aggressive or viscous fluids is required. Its pneumatic operation ensures safe performance in hazardous or explosive environments where electric pumps may not be suitable.
- Chemical processing plants
- Paint and coating production facilities
- Industrial manufacturing operations
- Water treatment and wastewater facilities
- Bulk fluid handling systems
- Lubricant and oil transfer operations
