Compatible Machines
The Graco 653533 Husky 2200 Pump is a high-capacity air-operated double diaphragm (AODD) pump designed primarily as a stand-alone industrial pump. Instead of fitting into a single dedicated machine, it is commonly installed in fluid transfer and process systems used across many industries.
- Chemical transfer systems
- Industrial fluid handling equipment
- Paint and coating circulation systems
- Adhesive and resin supply systems
- Drum and tote fluid transfer systems
- Bulk liquid pumping systems
- Wastewater treatment and chemical dosing systems
- Mining and industrial process fluid transfer systems
- Lubricant and coolant circulation equipment
- Manufacturing process fluid supply systems

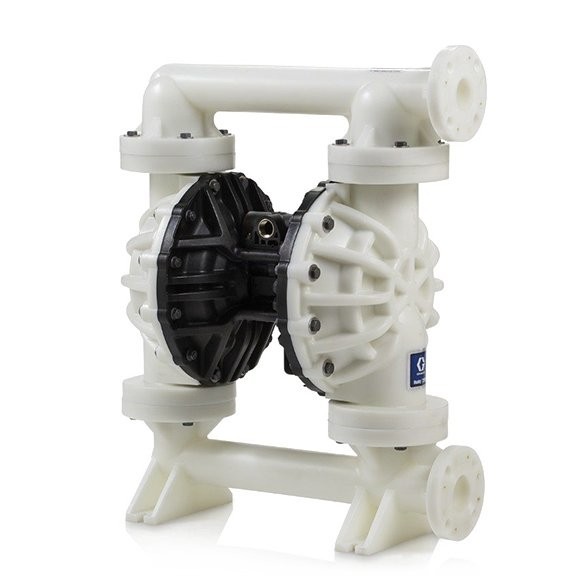

Overview of the Graco 653533 Husky 2200 Pump
The Graco 653533 Husky 2200 is a heavy-duty air-operated diaphragm pump designed for reliable fluid transfer in demanding industrial environments. Powered by compressed air, the pump moves diaphragms back and forth to efficiently move liquids without the need for electric motors.
This pump configuration is designed for durability and chemical compatibility, making it suitable for handling aggressive fluids, solvents, and industrial chemicals. The design provides smooth fluid flow, high efficiency, and easy maintenance in continuous production environments.
Key Features
- Air-operated double diaphragm (AODD) design for safe and reliable pumping
- High flow capacity suitable for large-scale industrial transfer systems
- 2-inch fluid ports for efficient movement of high volumes of liquid
- Durable polypropylene construction for corrosion resistance
- PTFE over-molded diaphragms designed for chemical compatibility
- Energy-efficient air valve system for smooth operation
- Lubrication-free air system that reduces maintenance requirements
Technical Specifications
| Product Name | Graco 653533 Husky 2200 Pump |
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Port Size | 2 in (50.8 mm) |
| Maximum Flow Rate | Up to 200 GPM (757 L/min) |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Air Inlet Size | 3/4 in |
| Center Section Material | Polypropylene |
| Seat Material | PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE Over-molded |
Typical Applications
The Graco Husky 2200 diaphragm pump is widely used in industrial applications where reliable fluid transfer is required. Its chemical-resistant construction and large flow capacity make it suitable for continuous-duty operations.
- Chemical processing and transfer
- Industrial coating and paint systems
- Adhesive and resin distribution
- Water and wastewater treatment facilities
- Manufacturing fluid supply systems
- Mining slurry and process fluid transfer
- Bulk liquid transfer from tanks, drums, and totes
Frequently Asked Questions
The Graco 653533 Husky 2200 Pump is used for transferring industrial fluids such as chemicals, water-based liquids, oils, and solvents in manufacturing plants, chemical facilities, and processing systems.
The Husky 2200 Pump is not limited to a single machine model. It is typically integrated into industrial fluid transfer systems, chemical processing equipment, coating circulation systems, and other large-scale fluid handling setups.
The Graco Husky 2200 is an air-operated double diaphragm (AODD) pump. It uses compressed air to move diaphragms that pump fluid efficiently without requiring electricity.
This pump can handle a wide range of industrial fluids including chemicals, solvents, detergents, water-based liquids, cutting oils, and other compatible process fluids depending on material compatibility.
