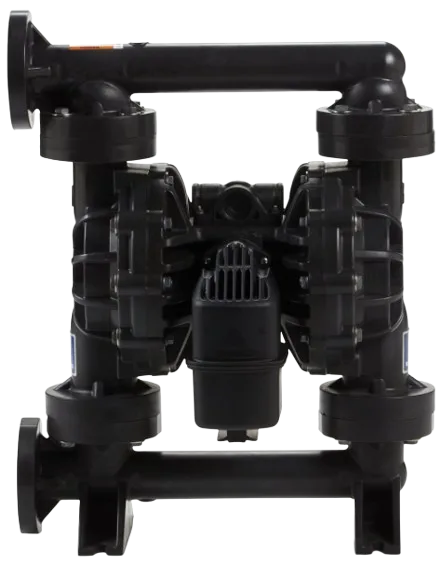

Graco 654541 Husky 15120F Pump SS/PT/PT/PT
The Graco 654541 Husky 15120F Pump SS/PT/PT/PT is a high-capacity air-operated double diaphragm pump designed for reliable industrial fluid transfer, handling chemicals, coatings, and other demanding liquids with durable PTFE components.
- Pump Type: Air-Operated Double Diaphragm (AODD)
- Port Size: 1-1/2 inch fluid inlet and outlet
- Max Flow Rate: Up to 120 GPM (454 L/min)
- Max Pressure: 125 psi (8.6 bar)
- Seat Material: Stainless Steel
- Ball / Diaphragm / Seals: PTFE (SS/PT/PT/PT configuration)
- Use: Chemical transfer, coatings, wastewater, industrial fluid handling
Compatible Machines
The Graco 654541 Husky 15120F Pump SS/PT/PT/PT is a stand-alone industrial air-operated double diaphragm (AODD) pump designed for integration into various fluid transfer and processing systems. It is commonly installed in the following machines and equipment:
- Chemical transfer and dosing systems
- Industrial fluid transfer skids
- Drum and tote fluid transfer units
- Paint and coating circulation systems
- Ink and adhesive transfer equipment
- Wastewater treatment processing systems
- Chemical batching and mixing systems
- Industrial manufacturing process lines
- Oil and lubricant transfer stations
- General industrial fluid handling equipment
Overview
The Graco 654541 Husky 15120F Pump SS/PT/PT/PT is a high-performance 1-1/2 inch air-operated double diaphragm pump designed for reliable fluid handling in demanding industrial environments. Powered by compressed air, this pump transfers a wide range of liquids including chemicals, oils, coatings, and water-based fluids.
The material configuration SS/PT/PT/PT indicates stainless steel seats combined with PTFE balls, PTFE diaphragms, and PTFE seals. This construction provides excellent chemical resistance, improved durability, and reliable operation when handling aggressive fluids or harsh processing conditions.
Key Features
- Efficient air-operated double diaphragm design for smooth and reliable fluid transfer
- Durable internal components including stainless steel seats and PTFE diaphragms
- Handles aggressive chemicals and industrial fluids with high corrosion resistance
- Capable of running dry without damage to internal components
- Designed for continuous industrial operation with minimal maintenance
- Energy-efficient air valve system that reduces air consumption
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | Graco 654541 Husky 15120F Pump SS/PT/PT/PT |
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Port Size | 1-1/2 inch fluid inlet and outlet |
| Maximum Flow Rate | Up to 120 gallons per minute (454 L/min) |
| Maximum Operating Pressure | 125 psi (8.6 bar) |
| Seat Material | Stainless Steel (SS) |
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| Seal Material | PTFE |
| Air Inlet Size | 1/2 inch NPT |
Industrial Uses
The Graco Husky 15120F diaphragm pump is widely used in industries that require dependable fluid transfer. Its corrosion-resistant construction and high flow capacity make it suitable for demanding applications such as chemical processing, coating circulation, wastewater handling, and manufacturing operations.
Because it operates using compressed air, the pump can be safely used in hazardous or explosive environments where electric pumps may not be suitable. This makes it a reliable solution for facilities requiring safe and efficient fluid movement.
