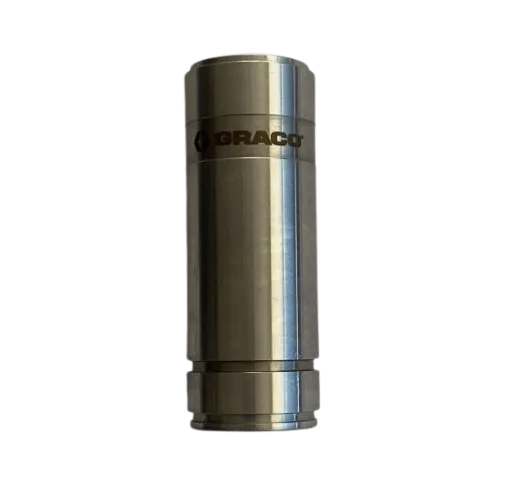

Graco 248209 Stainless Steel Cylinder Sleeve
5/5
(1 review)
$262.79
$359.00
Save 27%
In Stock
The Graco 248209 Stainless Steel Cylinder Sleeve provides a durable and corrosion-resistant pump chamber for professional airless sprayers. It ensures smoother operation, consistent pressure, and extended pump life.
- OEM Part: 248209
- Material: Stainless Steel
- Replaces: 240521
- Fits: Ultra Max II 695/795, GMax 3900, GMax II 3900, TexSpray Mark IV, LineLazer 3900
- Use: For paint, primer, and coating applications
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Key Details
Compatible Machines
The Graco 248209 Stainless Steel Cylinder Sleeve fits the following sprayers (verify by model/series generation and serial where applicable):
- Ultra Max II 695
- Ultra Max II 795
- Ultra Max 795
- Ultra Max 1095
- GMax 3900
- GMax II 3900
- TexSpray Mark IV
- LineLazer 3900
What is the Graco 248209?
The Graco 248209 Stainless Steel Cylinder Sleeve (pump sleeve) is the precision-machined inner pump cylinder that the piston/rod travels in. Its stainless construction improves wear and corrosion resistance for consistent pressure, longer seal life, and smoother operation on larger Graco airless sprayers.
Quick Specs
| OEM Part | Graco 248209 |
|---|---|
| Material | Stainless Steel |
| Function | Forms the pump sleeve/cylinder for the displacement pump; guides piston/rod and supports packings. |
| Supersedes / Replaces | 240521 (also cross-referenced by some aftermarket listings such as Bedford 57-2273). |
| Typical Applications | Medium–heavy duty professional spraying of paints, primers, and coatings on contractor and line-striping rigs. |
Why choose this sleeve?
- Durability: Stainless steel resists corrosion and scoring compared to plain/plated sleeves.
- Pressure consistency: Maintains tight clearances for steady pump output and finish quality.
- Service friendly: Designed to be cleaned/inspected during packings replacement and routine maintenance.
Fit Notes
- Confirm your exact model variant (Standard / ProContractor / IronMan / TexSpray) and serial range before ordering.
- If your manual lists 240521, this sleeve is the updated/superseding part in many cases.
- Replace worn packings, check ball/seat condition, and follow torque/assembly steps per Graco service manual.
Frequently Asked Questions
Yes—248209 is widely listed as the superseding sleeve for 240521. Always verify against your unit’s parts list for your serial range.
Common listings include Ultra Max II 695, Ultra Max II 795, and Ultra Max 795/1095. Check the pump section of your parts manual to confirm.
Yes—commonly listed for GMax 3900, GMax II 3900, and TexSpray Mark IV, as well as LineLazer 3900-based pump sections. Verify your exact build.
Inspect/replace packings, check piston rod for scoring, and inspect ball/seat faces. Clean all parts and lubricate per Graco procedures before assembly.
Relieve pressure completely before disassembly. Use proper tools, follow torque specs, and test for leaks at low pressure before returning to service.
