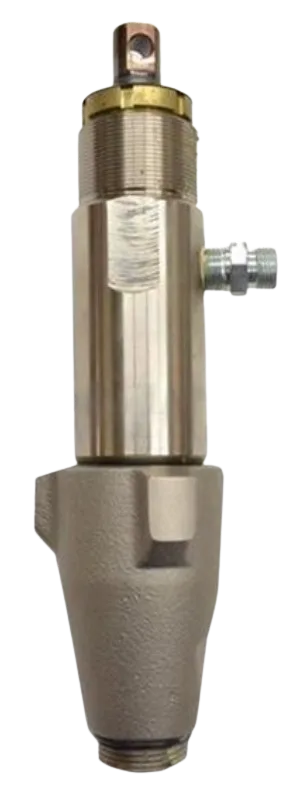

Graco 248736 Pump Assembly for GH 230, GH 300, Series A

The Graco 248736 Pump Assembly is a complete OEM fluid section for GH-series hydraulic sprayers. Designed for professional durability and direct fit replacement on Series A units.

  • Part Number: 248736
  • Fits Models: GH 230 Series A and GH 300 Series A
  • Type: Displacement Pump Assembly / Fluid Section
  • Purpose: Restores pressure and spray performance to factory spec
  • Compatibility Note: Not for Series B or later units

Retail Price: $1630
You save: $260.8 (16.00%)
Our Price: $1369.2
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Compatibility & Fitment – Quick View

Compatible Machines

This Graco 248736 Pump Assembly (Displacement Pump) is engineered for the following Series A gas hydraulic units:

  • GH 230 – Series A (e.g., model ref. 248561 Series A)
  • GH 300 – Series A (e.g., model ref. 248563 Series A)

Graco 248736 Pump Assembly – Displacement Pump Kit for GH 230 / GH 300 (Series A)

The Graco 248736 Pump Assembly is the complete displacement pump (fluid section) for GH 230 and GH 300 Series A sprayers. It restores prime, pressure, and spray consistency in demanding commercial use. Built with OEM tolerances and materials for durability and reliable sealing under high pressure.

Key Specifications

Part Number 248736
Item Type Displacement Pump / Fluid Section (complete pump assembly)
Primary Fit GH 230 (Series A), GH 300 (Series A)
Generation / Series Series A only (check nameplate/parts manual)
Typical Symptoms Replaced For Loss of pressure, poor prime/hold, internal wear, leaking or scored pump components
Installation Direct OEM swap of the fluid section; follow torque and lubrication procedures in the service manual

Why Choose This OEM Pump

  • OEM precision – correct tolerances and finishes for proper sealing and long life.
  • Restores performance – returns prime, output, and pattern quality to spec.
  • Drop-in assembly – designed as a complete fluid section for faster turnaround.
  • Built for heavy duty – withstands the pressures and duty cycle of GH-series sprayers.

Important Fit Notes

  • For Series A machines only
  • Verify model tag (e.g., GH 230 / GH 300 Series A)
  • Different kit used on Series B or later—do not interchange

Pro Tips for Longer Pump Life

  • Always flush with compatible solvent after use and store with pump protector.
  • Replace intake/outlet checks and packings at the first sign of bypass or chatter.
  • Use clean, strained materials and proper mesh filters to reduce wear.

Frequently Asked Questions

Check the machine nameplate and parts manual. GH-series tags list model and series. If it is Series A, 248736 is the correct pump assembly. If your tag shows Series B (or no match), use the series-specific kit for that generation instead.

Persistent loss of pressure, difficulty priming or holding prime, pulsation, material bypass into the wet cup, or visible scoring on pump components typically point to fluid-section wear. If adjustments and packings don’t resolve it, a complete pump assembly replacement is recommended.

Yes—many technicians perform a direct swap following the Graco service manual. Support the sprayer safely, depressurize, isolate fuel/hydraulics as instructed, and follow torque specs and lubrication steps. If you’re unfamiliar with GH-series service, consult an authorized center.

This is a complete fluid section. Depending on wear, you may also service intake/outlet checks, filters, and seals. Replace any damaged gaskets/O-rings and use fresh throat seal liquid after installation and during storage.

The GH-series is used for high-output coatings. Follow your sprayer’s material compatibility chart. Always strain materials and match tip/mesh to the coating to minimize wear on the pump and checks.
