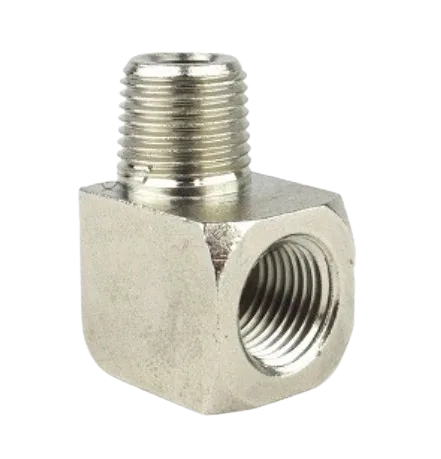

Graco 115764 90 Degree Elbow Fitting

The Graco 115764 90° Elbow Fitting lets you redirect fluid/air hoses by 90°, helping route lines cleanly around corners or tight spaces in your sprayer or pump system.

OEM 90° elbow fitting for angled fluid/air connections
Ideal for compact hose routing in spray or pump equipment
Helps avoid kinks or stress on hoses while maintaining flow direction

$19.96

Based on 0 reviews

Description

Compatible Systems for Graco 115764 90° Elbow Fitting

The Graco 115764 90 Degree Elbow Fitting is a factory-specified angled fitting designed to redirect fluid or air lines by 90°, enabling neat hose/piping routing in spray, pump or coating equipment — especially where straight runs are impractical or space is constrained.

Graco spray- or coating-machines and fluid-handling pumps where line routing requires a 90° bend to fit within frame or housing :contentReference[oaicite:4]{index=4}
Systems where hoses or tubes must bend around obstacles, valves or panels, avoiding sharp kinks while maintaining flow direction :contentReference[oaicite:5]{index=5}
Any assembly module in Graco equipment where parts-list or diagram specifies 90° elbow (part #115764) for proper fluid/air routing :contentReference[oaicite:6]{index=6}

Frequently Asked Questions

Because 90° elbows redirect fluid flow around corners or obstacles, enabling compact layout — useful in spray and pump equipment where space is limited or hose routing must avoid interference. :contentReference[oaicite:7]{index=7}

Yes — changing direction introduces some flow resistance or possible turbulence, so it’s good to ensure that the fitting, hose and pump are rated for required pressure and flow. :contentReference[oaicite:8]{index=8}
