Graco 277069 Pump Repair Kit
5/5
(1 review)
$663.60
$790.00
Save 16%
In Stock

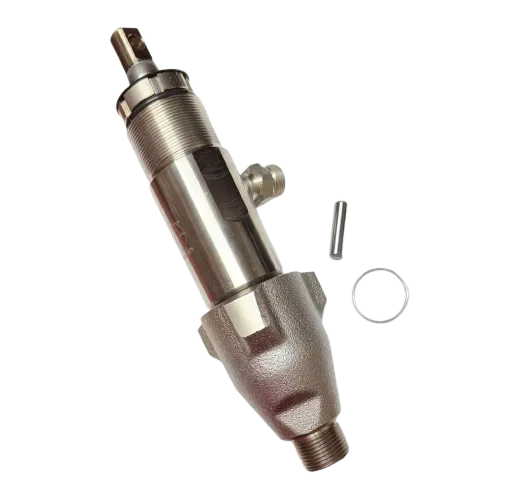

The Graco 277069 Pump Repair Kit restores pump pressure and performance for LineLazer and FieldLazer models. Ideal for rebuilding worn fluid sections.
- Part Number: 277069
- Fits: LineLazer IV/V 3900, ES2000, FieldLazer R300
- Max Pressure: Up to 3300 PSI
- Includes: Packings, valves, seats & wear parts
- Purpose: Restores smooth spray and reduces pulsation
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 277069 Pump Repair Kit — Compatibility & Specs
Compatible Machines
This Graco 277069 Pump Repair Kit (pump fluid section) fits the following LineLazer / FieldLazer models:
- LineLazer IV 3900
- LineLazer V 3900
- LineLazer ES2000
- LineLazer V ES2000
- FieldLazer R300
Product Overview
The Graco 277069 Pump Repair Kit restores the fluid section of your striping sprayer to factory performance. It includes critical wear parts (packings, valves, seats, and related components) to recover pressure, reduce pulsation, and improve priming on LineLazer/FieldLazer platforms listed above.
- OEM quality components for durability and fit.
- Designed to recover pressure and flow when your pump shows wear.
- Helps reduce pattern inconsistency and hard-start/priming issues.
Technical Specifications
| Part Number | 277069 |
|---|---|
| Product Type | Pump Repair Kit / Fluid Section (for compatible LineLazer/FieldLazer models) |
| Typical Application | Airless striping (road/field marking) — LineLazer & FieldLazer pumps |
| Max Working Pressure | Up to 3300 psi (model-dependent; follow your machine manual) |
| Included | Packings, checks/valves, seats/rings, and related wear parts (contents may vary by revision) |
| Compatibility Check | Confirm model, series (IV/V/ES) and serial range in your parts manual |
What You Get / Key Benefits
- Complete wear set to refresh the fluid section
- Improved priming and steadier spray pattern
- Reduced downtime vs. chasing leaks or low pressure
- OEM fit — no guesswork on dimensions or materials
Fitment Notes
- Match your exact LineLazer/FieldLazer model from the list above.
- For older pumps or mixed-history units, compare the fluid section assembly number in the parts schematic.
- If your unit isn’t listed, contact support with your model & serial for confirmation.
Frequently Asked Questions
It includes the core wear parts for the fluid section (packings, checks/valves, seats/rings, related hardware). Contents can vary by revision—refer to your model’s parts schematic for an exact contents list.
Verify your exact model and series (e.g., LineLazer IV 3900, V 3900, ES2000, V ES2000, FieldLazer R300) and cross-check the fluid section assembly in your parts manual. If unsure, share your model & serial for confirmation.
Expect low/unstable pressure, surging, hard or failed priming, inconsistent fan pattern, and possible packing leakage. Rebuilding restores seal integrity and check-valve performance.
Lubricate packings as specified, prime slowly with compatible fluid, check for leaks, and re-torque fasteners after initial run. Always follow the official service manual for torque specs and pressure testing.
If you’re comfortable with pump service and have the proper tools, it’s straightforward. Otherwise, use a qualified technician. Always relieve pressure, lockout power, and follow safety procedures.
