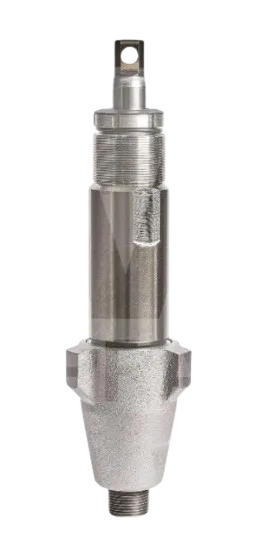

Graco 277070 Pump Repair Kit

The Graco 277070 Pump Repair Kit is a genuine OEM rebuild set designed for restoring pump performance on LineLazer 5900 models. Ideal for maintaining consistent pressure and spray quality.

Part Number: 277070
Type: Pump / Fluid Section Repair Kit
Compatible Models: LineLazer IV 5900, LineLazer V 5900
Includes: Seals, valves, packings, and wear components
Purpose: Restores pressure, eliminates leaks, improves flow stability

Retail Price: $1050

You save: $168 (16.00%)

Our Price: $882

Based on 0 reviews

Description

Graco 277070 Pump Repair Kit – Overview & Compatibility

Compatible Machines

This OEM kit is engineered for the following Graco line stripers:

Graco LineLazer IV 5900
Graco LineLazer V 5900

What is the Graco 277070 Pump Repair Kit?

The Graco 277070 Pump Repair Kit (also referred to as a fluid-section rebuild kit) includes OEM components to restore your pump’s sealing and valving performance on the 5900 series line stripers. Rebuilding with genuine parts helps recover prime, pressure stability, and spray pattern quality without replacing the full pump.

Key Details

Part Number	277070
Type	Pump Repair Kit / Fluid-Section Rebuild
Fits	LineLazer IV 5900, LineLazer V 5900
Purpose	Restore pressure, reduce pulsation, fix leaks, improve prime/flow consistency.
Typical Contents	Packings/seals, valve components, wear items for the fluid section.
Common Symptoms That Indicate Rebuild	Loss of pressure, frequent cycling, material bypass to wet cup, hard-to-prime, irregular spray pattern.

Why Choose Genuine

Factory tolerances for reliable sealing and valve seating.
Improved durability in high-duty line striping environments.
Lower downtime versus full pump replacement.

Compatibility Notes

Match your machine model (LineLazer IV 5900 or LineLazer V 5900) and verify the pump assembly shown in your parts manual.
If your unit has been retrofitted with a different pump, confirm component series before purchase.

Frequently Asked Questions

It fits the LineLazer IV 5900 and LineLazer V 5900. Always confirm against your serial plate and parts manual, as mid-series revisions can change internal components.

Replacing worn packings and valve parts restores pressure control, prime, and spray pattern consistency—addressing leaks, surging, and hard-to-prime conditions.

Basic hand tools typically suffice. Follow the pump repair section in your Graco manual for torque specs, assembly order, and safety procedures.

Frequency depends on usage, materials, and maintenance. High-duty striping or abrasive paints may require more frequent service. Inspect packings and seats at regular service intervals.

Yes—this is a genuine Graco OEM kit for the specified models, ensuring proper fit and performance.
