Graco 288479 Pump Piston Rod Repair Kit
$437.04
$607.00
Save 28%
In Stock

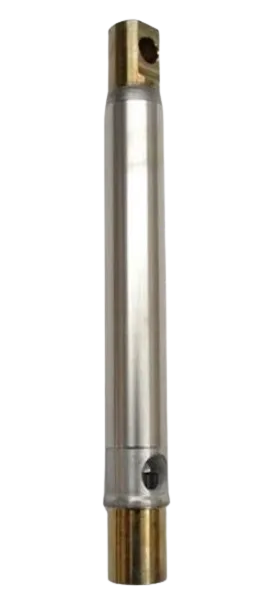

Graco 288479 Pump Piston Rod Repair Kit restores smooth pump performance and ensures reliable fluid transfer in GH 130-series sprayers. Built with a Chromex-hard surface for superior wear resistance.
- Fits Graco GH 130 & LineLazer 130HS
- Durable Chromex piston rod for long life
- Replaces worn or leaking pump rod assemblies
- Maintains consistent pressure and spray quality
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 288479 Pump Piston Rod Repair Kit — Overview
Compatible Machines
- Graco GH 130 (all common variants)
- Graco GH 130 Convertible (e.g., pump ref. 253957)
- LineLazer 130HS (select configurations that share the GH 130 pump)
What It Is
The Graco 288479 Pump Piston Rod Repair Kit restores the core motion link between the drive system and the fluid section. The piston rod transfers the up-down stroke that loads and displaces coating material. This kit is commonly used when the original rod is worn, scored, bent, or leaking.
- Direct fit for GH 130-series pumps (and related LineLazer 130HS configurations)
- Chromex-type hard surface for improved wear and corrosion resistance
- Supports proper sealing and pressure consistency after service
Key Specifications
| Part Number | 288479 |
|---|---|
| Type | Pump Piston Rod Repair Kit (piston rod) |
| Material / Finish | Chromex / hard-chrome style wear surface |
| Primary Application | Restores piston motion & sealing performance in GH 130 pumps |
| Typical Symptoms Indicating Replacement | Score marks on rod, packing leaks, pressure fluctuation, rod runout/bend |
| Related Service Items (Often Replaced Together) | Packing set, seals/wipers, pump lubricant, thread sealant |
What’s Included & Service Notes
- Includes the piston rod for the pump’s fluid section.
- Packings and seals may be sold separately depending on your pump configuration.
- Inspect cylinder, ball/seat, packings and lower seals; replace worn parts during rod service for best results.
- Follow the official Graco service manual for torque specs, orientation and safe pressure relief.
Frequently Asked Questions
Check the pump model stamped on your unit (e.g., GH 130) and match it in the parts manual. If your LineLazer uses a GH 130-derived pump, 288479 typically applies. For serial-range questions, consult the manual or contact support with your model & serial.
It’s strongly recommended. Packings, seals, and wipers are wear items; renewing them with the rod helps restore pressure, reduce leaks, and extend service life.
The hard-chrome/Chromex surface is designed for durability and corrosion resistance, benefiting both waterborne and solvent-borne coatings. Always follow coating manufacturer and Graco guidelines.
Use proper pressure relief, keep components clean, lubricate packings as specified, align the rod carefully to avoid scoring, and tighten to the correct torque. Replace any damaged seats/balls at the same time.
Persistent packing leaks, visible rod scoring, irregular pressure, or bent/runout conditions. If these appear, replacing with 288479 can restore performance.
