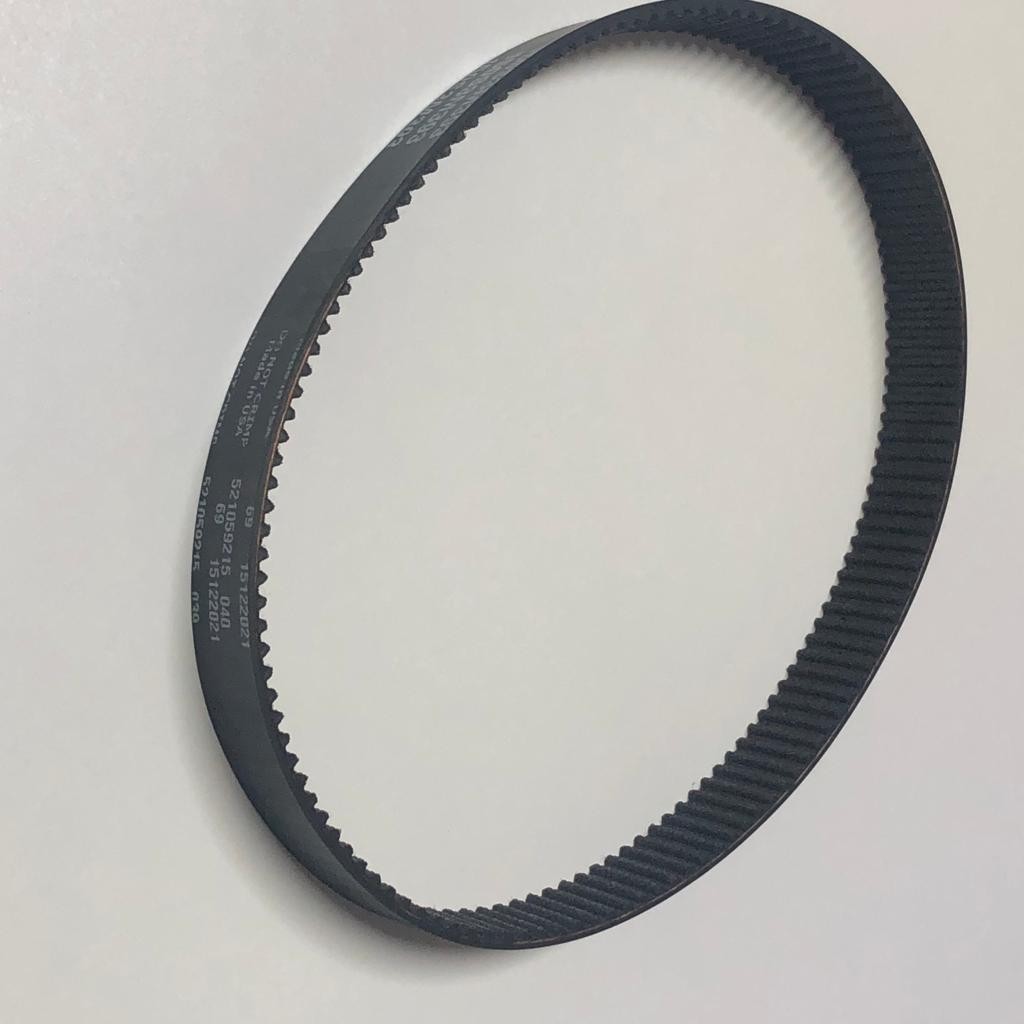

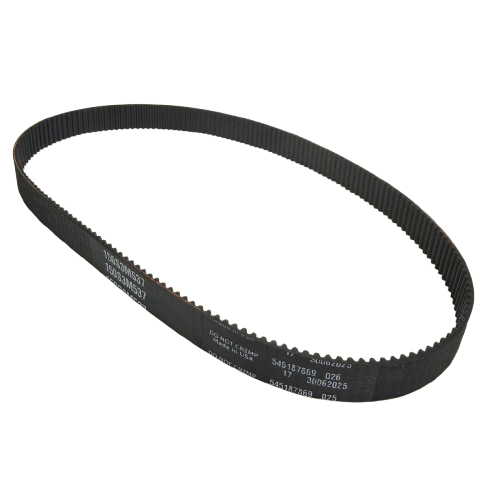

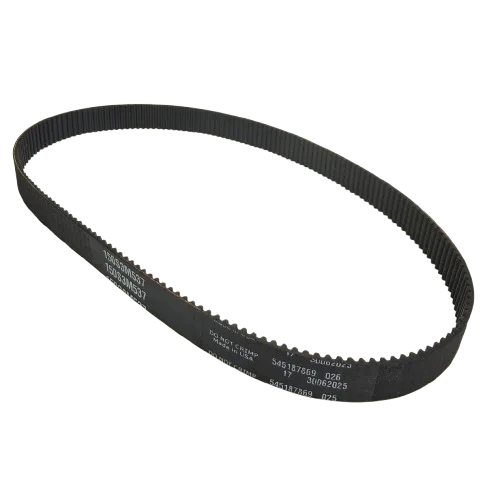

Graco 120233 3mm Timing Belt
$20.50
In Stock
The Graco 120233 3mm Timing Belt ensures precise synchronization of moving parts in Graco spray equipment for reliable operation.
- Maintains accurate timing of pumps and motors
- Durable rubber with reinforced construction resists wear and stretching
- OEM precision fit for GH 130, GH 200, GH 230, GH 300
- Easy to install and replace without affecting other components
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 120233 3mm Timing Belt — Product Overview
The Graco 120233 3mm Timing Belt is a precision-engineered belt designed to synchronize moving components in Graco spray equipment. Its durable construction ensures reliable performance under high-speed and high-pressure operations.
Compatible Machines
- Graco GH 130 — drives pump assemblies and internal modules
- Graco GH 200 — ensures precise timing for valve and piston systems
- Graco GH 230 — maintains synchronization of moving parts
- Graco GH 300 — supports high-pressure pump and motor coordination
Key Features & Benefits
- Durable material: High-quality rubber and reinforcement resist wear and stretching
- Precise tooth profile: Ensures accurate synchronization of pumps and motors
- OEM fit: Compatible with Graco models for exact replacement
- Maintenance-friendly: Easy to install and replace without affecting other components
- Reliable operation: Handles high-speed and high-pressure cycles without slippage
Applications
The 120233 timing belt is used to synchronize pump pistons, valve assemblies, and motor drives in Graco airless sprayers, ensuring smooth, reliable operation and preventing misalignment or component wear.
Installation & Maintenance Tips
- Ensure proper alignment with pulleys before tensioning the belt.
- Do not overtighten; follow Graco's recommended tension specifications.
- Inspect periodically for fraying, cracking, or stretching.
- Replace immediately if any signs of wear are detected to maintain timing accuracy.
Frequently Asked Questions
No. This belt is designed for specific models such as GH 130, GH 200, GH 230, and GH 300. Always check your equipment manual for compatibility before installation.
Inspect the belt every 500 operating hours or during scheduled maintenance. Replace it if there is visible wear, cracking, or stretching to prevent misalignment.
Using non-OEM belts may result in incorrect tooth spacing, slippage, or premature wear. OEM Graco belts are designed for precise fit and reliable operation in specific models.
