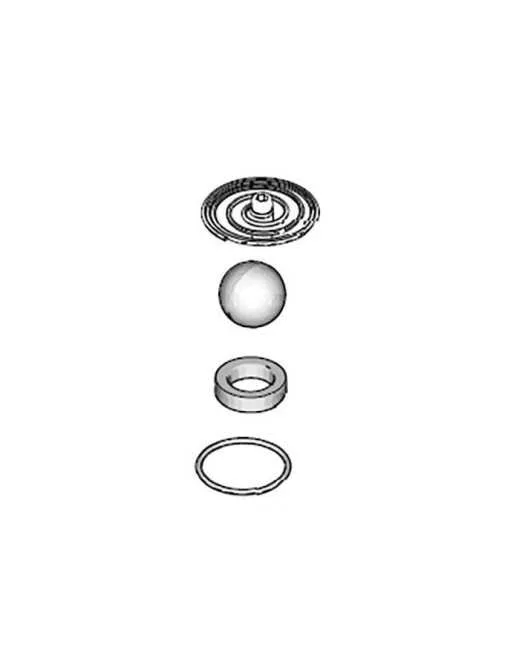

Graco 16X467 Foot Valve Carbide Seat Kit

  • Part: Graco 16X467 Foot Valve Carbide Seat Kit
  • Fits: GMax II 7900 models — 16W884, 16W885, 16W887
  • Includes: Carbide seat, valve ball, spring components
  • Purpose: Restores inlet sealing, improves priming and pressure stability
  • Material: Tungsten carbide for maximum wear resistance

Retail Price: $443
You save: $116.07 (26.20%)
Our Price: $326.93
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Overview & Compatibility for Graco 16X467 Foot Valve Carbide Seat Kit

Compatible Machines

  • GMAX II 7900 – Standard Lo-Boy 16W884
  • GMAX II 7900 – ProContractor Hi-Boy 16W885
  • GMAX II 7900 – IronMan Hi-Boy 16W887

What is the 16X467 Kit?

Graco 16X467 Foot Valve Carbide Seat Kit is an OEM repair set for the pump’s lower foot valve. It refreshes the sealing surface with a durable carbide seat to restore prime, reduce leakage, and maintain consistent spray performance on heavy-duty GMAX II 7900 sprayers.

Why choose a carbide seat?

  • Excellent wear resistance for high-pressure, abrasive coatings.
  • Improved sealing for reliable priming and steady pressure.
  • OEM fit and finish—compatible with the listed GMAX II 7900 models.

Quick Facts

Brand Graco
OEM Part # 16X467
Kit Type Foot Valve Carbide Seat Kit
Primary Fit GMAX II 7900 (Standard Lo-Boy 16W884, ProContractor Hi-Boy 16W885, IronMan Hi-Boy 16W887)
GTIN/UPC 633955427778

Installation & Use Tips

  • Match the sprayer model and part number before ordering.
  • Inspect the lower ball/guide and packings during service; replace worn parts together for best results.
  • Torque components to spec and verify prime/pressure after reassembly.

Frequently Asked Questions

Verify your exact sprayer model/series. This kit fits GMAX II 7900 variants: 16W884, 16W885, 16W887. If your label matches one of these, the 16X467 kit is the OEM choice.

A worn foot-valve seat can cause hard priming, pressure fluctuation, and leaks. Replacing it with a carbide seat restores sealing and extends service life in demanding applications.

Yes. 16X467 is an OEM Graco repair kit designed specifically for the listed GMAX II 7900 models.

Inspect related wear parts (ball, guides, packings, o-rings). If they show wear, replace them at the same time to minimize downtime and rework.

Tip: Keep your parts diagram handy to confirm orientation and torque during reassembly.
