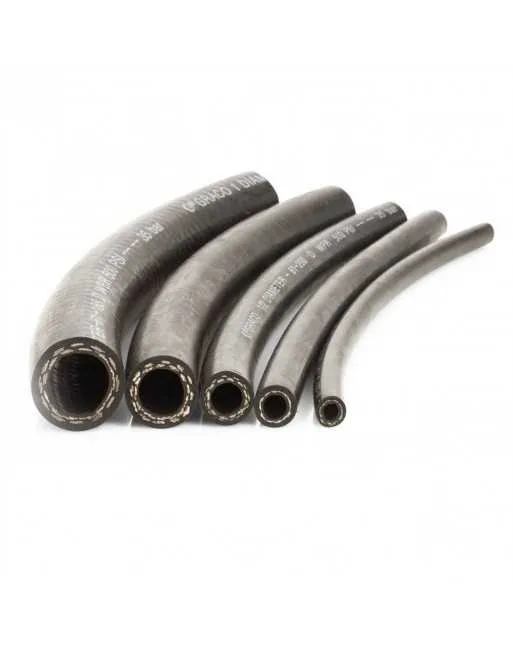

Graco 061205 Nylon Braided Fluid Hose 1/4 in ID 500 psi (35 bar)
$2.95
Available to Order
Graco 061205 Nylon Braided Fluid Hose delivers reliable fluid transfer for low-pressure coating and finishing systems. Ideal for waterborne and catalyst materials with a durable neoprene cover.
- Inside Diameter (ID): 1/4 inch (6.35 mm)
- Max Pressure: 500 psi (35 bar)
- Material: Nylon braid with neoprene cover
- Use: Suitable for catalyst and waterborne coatings
- Applications: Finishing, coating, and in-plant systems
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Key Specifications
Compatible Machines
This fluid hose is used across multiple Graco finishing and in-plant systems. Compatibility is specification-based rather than tied to a single model line. Confirm by part number and specs in your machine manual.
- Graco finishing/coating systems that specify ¼ in ID fluid hose and ≤ 500 psi (35 bar) working pressure
- Supply lines between proportioners, pressure pots, transfer pumps, and spray guns where nylon braided hose with neoprene cover is approved
- Systems handling catalyst and waterborne materials (per chemical compatibility listings)
- Installations using reusable 3-piece style hose fittings or adapters that match the hose ends
Key Specs (Graco 061205)
| Part Number | Graco 061205 |
|---|---|
| Hose Type | Nylon braided fluid hose with neoprene cover |
| Inside Diameter (ID) | 1/4 in (≈ 6.35 mm) |
| Max Working Pressure | 500 psi (35 bar) |
| Fluid Compatibility | Compatible with catalyst and waterborne materials (verify chemical compatibility for your specific fluid) |
| Typical Use | In-plant finishing, coating supply/return, and pump-to-gun fluid lines within the rated pressure |
Why Choose This Hose
- Balanced flow with ¼ in ID for many finishing workflows
- Reliable pressure rating up to 500 psi (35 bar)
- Chemical versatility for waterborne and catalyst materials (check SDS/compatibility)
- Durable cover (neoprene) for abrasion protection in production environments
Fitment & Selection Guidance
- Match ID and pressure: Your machine must specify ¼ in ID and operate at or below 500 psi.
- Confirm fluid compatibility with nylon inner and neoprene cover (consult your coating’s SDS).
- Check fittings: Ensure your equipment’s threads/seal type match the hose ends or use the correct adapters.
- Consider length and pressure drop if running longer lines or higher viscosities.
Frequently Asked Questions
Fitment is based on specs. If your equipment calls for a ¼ in ID fluid hose, operates ≤ 500 psi (35 bar), and permits a nylon braided hose with neoprene cover, 061205 is suitable. Always confirm the part number and fitting type in your machine manual or parts list.
It is listed as compatible with catalyst and waterborne materials. For solvent-rich or aggressive chemistries, verify compatibility against nylon/neoprene or consult material SDS and Graco guidelines.
No. Choose a hose with a higher working-pressure rating if your process exceeds 500 psi (35 bar). Also respect burst pressure and safety factors specified by the manufacturer.
Ensure your fittings match the hose’s required end style, size, and thread. Many setups use reusable 3-piece hose fittings; otherwise, adapters may be required. Mismatched threads or seals can cause leaks or failure.
It can be used in longer runs if the process allows, but consider pressure drop and viscosity. For high-flow or viscous applications, a larger ID or shorter path may be preferable.
