Graco 100206 Bushing Pipe
5/5
(1 review)
$24.90
In Stock

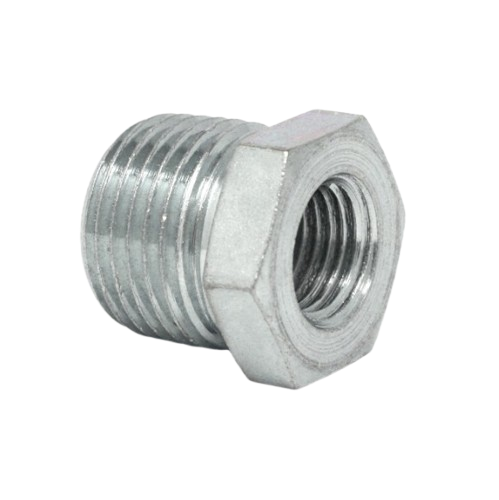

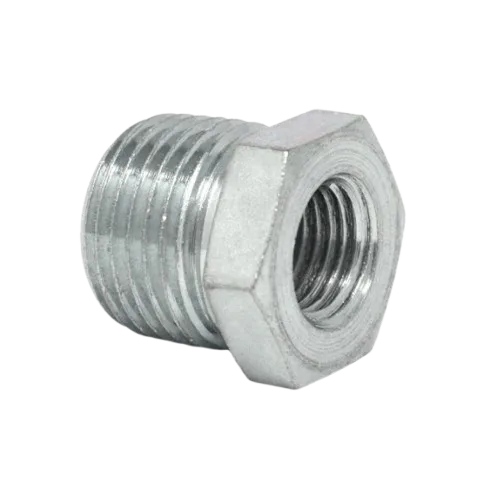

Graco 100206 Bushing, Pipe is a durable steel fitting designed to adapt 1/2" NPT male to 1/4" NPT female connections in Graco spray and fluid systems.
- Thread Size: 1/2" MNPT × 1/4" FNPT
- Material: Steel
- Use: Adapts ports, manifolds, or gauges
- Fits: Reactor H-20/25/35 Pro, S100, U100, P100
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
About the Graco 100206 Bushing, Pipe
Compatible Machines
This part is a thread adapter used across multiple Graco systems. It is commonly found wherever a 1/2" NPT male port must accept a 1/4" NPT female fitting.
- Graco Reactor H-20 Pro proportioners
- Graco Reactor H-25 Pro proportioners
- Graco Reactor H-35 Pro proportioners
- Graco S100 base machines
- Graco U100 base machines
- Graco P100 base machines
- Other Graco fluid/spray systems requiring 1/2" MNPT → 1/4" FNPT
Key Specifications
| Graco Part Number | 100206 |
|---|---|
| Official Name | Bushing, Pipe |
| Thread / Size | 1/2" NPT Male to 1/4" NPT Female |
| Material | Steel |
| Typical Use | Adapts larger manifold/pipe ports to smaller hoses, gauges, or accessories |
| Category | Fittings & Adapters |
Why Choose Graco 100206?
- Correct fit for machines transitioning from 1/2" MNPT to 1/4" FNPT.
- Leak-resistant NPT thread design when installed with proper sealant/tape.
- Durable steel construction suitable for high-duty spray and fluid systems.
- Versatile—works on manifolds, gauge ports, pump blocks, and accessory tees.
Frequently Asked Questions
It fits when your machine has a 1/2" NPT male port and you need to attach a component with a 1/4" NPT female thread. Many Graco systems use this combination, including Reactor H-20/25/35 Pro proportioners and S100/U100/P100 base machines. Always confirm against your parts diagram for the exact location and count used on your unit.
Use PTFE tape or a manufacturer-approved pipe dope suitable for your sprayed materials. Apply sparingly and keep sealant out of the fluid path. Do not over-torque—tighten to specification to avoid cracking ports or distorting threads.
Functionally, yes—it reduces from 1/2" NPT male down to 1/4" NPT female. Graco lists it as a Bushing, Pipe. In use, it adapts a larger threaded port to a smaller accessory or hose.
Look under fittings or manifold assemblies. On some models it appears near pump blocks, gauge tees, or return manifolds. Search the manual for 100206 and confirm the thread callouts before ordering.
