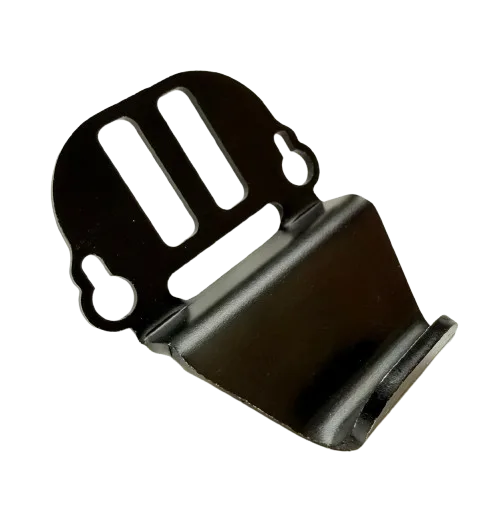

Graco 15C146 Pail Hook Bracket

Graco 15C146 Pail Hook Bracket is a durable OEM hook that keeps your paint pail stable on hi-boy sprayers for clean and steady material flow.

Fits multiple Graco Hi-Boy models including Ultra, Ultra Max II, and GMAX 3400
Secures 5-gallon pail to prevent spills and movement
Easy frame mount — installs using existing hardware

$13.09

Based on 0 reviews

Description

Secure 5-Gallon Pails to Your Hi-Boy Frame

Graco 15C146 Pail Hook Bracket is an OEM frame-mounted hook that safely holds a paint/fluids pail on compatible hi-boy sprayers. Durable steel construction keeps the pail steady while you spray.

Compatible Machines

This part fits the following Graco hi-boy sprayers and series:

Nova 395 Hi-Boy
Super Nova 495 Hi-Boy
Super Nova 595 Hi-Boy
Ultimate MX II 490 / 495 / 595 (Hi-Boy)
Ultra 395 / 495 / 595 (Hi-Boy)
Ultra Max II 490 / 495 / 595 (Hi-Boy)
GMAX 3400
Proformance Max Hi-Boy 425 (233982)
Proformance Max Hi-Boy 595 (234590)

What This Part Does

The Pail Hook secures a 5-gallon pail to the sprayer frame so material can feed cleanly into the inlet without tipping or shifting during transport or operation.

Key Benefits

OEM fit - designed by Graco for the models listed above.
Stable pail position - helps prevent spills and hose strain.
Quick install - mounts to existing frame points (no custom fab).
Durable construction for jobsite use.

Specifications

Part Number	15C146
Item Name	Pail Hook Bracket
Type	Frame-mounted pail support/hook
Compatibility	See Compatible Machines list above
Origin	Genuine Graco OEM
Typical Use	Secures 5-gal material pail on hi-boy sprayers

Install & Notes

Mounts to the sprayer frame using existing holes/hardware (varies by model).
Verify your sprayer’s model and frame style before ordering.
If your unit is not listed, contact support with your model number and serial.

Frequently Asked Questions

It’s designed for the models listed above. Some frames share mounting points across series, but you should confirm by checking your frame for the hook mount location or provide your exact model to verify fit.

Hardware availability may vary by kit and model year. Reuse of existing frame hardware is common. If you need new hardware, check your sprayer’s parts list for the correct fasteners.

Yes - 15C146 is an OEM Graco component engineered for proper fit and durability.

It’s typically used with 5-gallon material pails common to hi-boy sprayer setups. Always secure the pail fully on the hook before operation.
