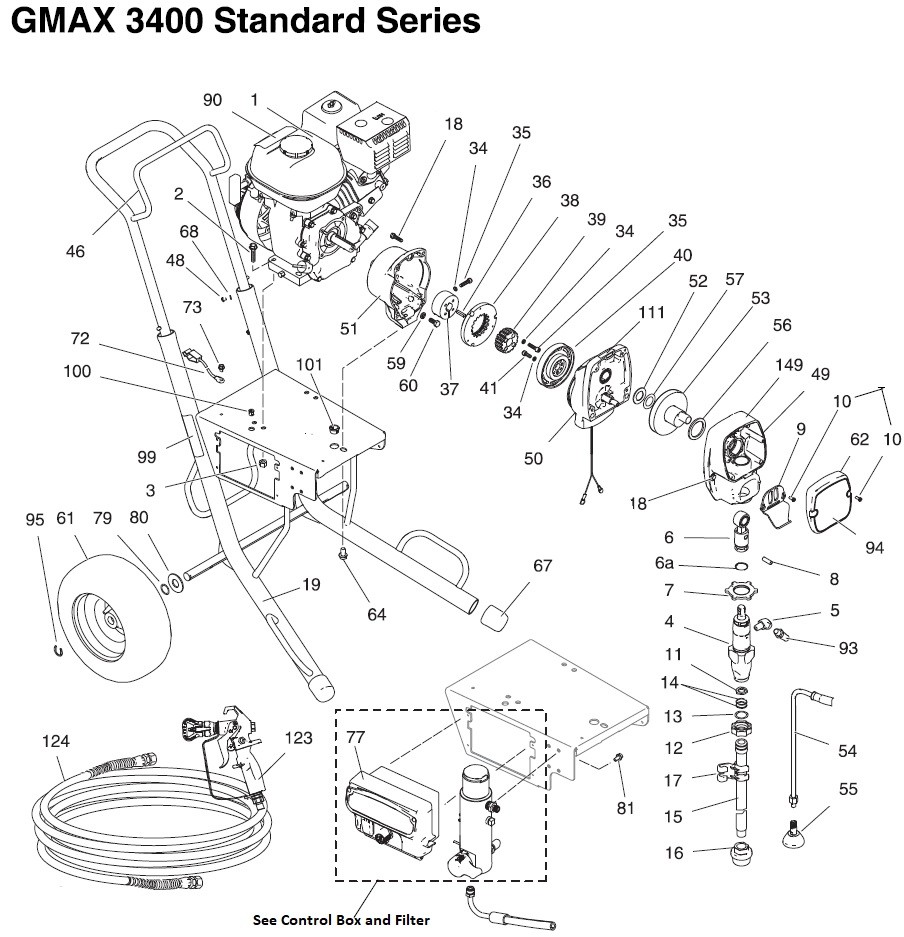

Graco GMAX 3400 Standard Series Gas Airless Sprayer Parts

Graco GMAX 3400 Standard Series Gas Airless Sprayer Parts
Product Image
Graco 108879 Gasoline Engine

Item No: 1

Part Number: 108879

UPC Number: 633955477124

The Graco 108879 Gasoline Engine delivers reliable 4.0 HP power at 3600 RPM, ideal for Graco airless...

Retail Price: $1840.00
You save: $294.4 (16.00%)
Our Price: $1545.60
QTY:
Product Image
Graco 110837 Screw

Item No: 2

Part Number: 110837

UPC Number: 633955268005

Secure critical components in your Graco sprayer with this durable OEM hex flange screw for reliable...

$8.44
QTY:
Product Image
Graco 110838 Lock Nut

Item No: 3

Part Number: 110838

UPC Number: 633955577107

Ensure secure assembly and reliable operation of your Graco sprayer components with this durable OEM...

$9.43
QTY:
Product Image
Graco 246428 Endurance Pump

Item No: 4

Part Number: 246428

UPC Number: 633955950078

Durable Graco 246428 Endurance Chromex Pump designed for long life and smooth performance. Perfect O...

Retail Price: $388.00
You save: $53.93 (13.90%)
Our Price: $334.07
QTY:
Product Image
Graco 119789 1/4 NPT 45° Elbow Fitting

Item No: 5

Part Number: 119789

UPC Number: 633955032705

The Graco 119789 Elbow Fitting 1/4" NPT is a durable OEM 45° street elbow designed for smooth fluid...

$9.47
QTY:
Product Image
Graco 287053 Connecting Rod Kit

Item No: 6

Part Number: 287053

UPC Number: 633955922327

Graco 287053 Connecting Rod Kit keeps your sprayer running smoothly by transferring power from the m...

Retail Price: $95.75
You save: $7.94 (8.29%)
Our Price: $87.81
QTY:
Product Image
Graco 196750 Retaining Spring

Item No: 6a

Part Number: 196750

UPC Number: 633955980518

Graco 196750 Retaining Spring is a durable component that keeps internal parts aligned for smooth, r...

$6.30
QTY:
Product Image
Graco 195150 Pump Jam Nut

Item No: 7

Part Number: 195150

UPC Number: 633955930902

Graco 195150 Pump Jam Nut is a critical component that secures the pump assembly, ensuring reliable ...

$9.47
QTY:
Product Image
Graco 196762 Straight Pin

Item No: 8

Part Number: 196762

UPC Number: 633955980532

Ensure secure and reliable operation of your Graco sprayer with the 196762 Straight Pin. Perfect for...

$8.44
QTY:
Product Image
Graco 15C146 Pail Hook Bracket

Item No: 9

Part Number: 15C146

UPC Number: 633955007178

Graco 15C146 Pail Hook Bracket is a durable OEM hook that keeps your paint pail stable on hi-boy spr...

$13.09
QTY:
Product Image
Graco 117501 Slotted Hexagonal Washer Head Machine Screw

Item No: 10

Part Number: 117501

UPC Number: 633955017160

Graco 117501 Hexagonal Head Slotted Washer Machine Screw provides secure fastening for Graco airless...

$6.30
QTY:
Product Image
Graco 115099 Garden Hose Washer Inlet Seal

Item No: 11

Part Number: 115099

UPC Number: 633955930162

Graco 115099 Garden Hose Washer Inlet Seal prevents leaks at the garden hose connection, ensuring pr...

$0.42
QTY:
Product Image
Graco 15E813 Jam Nut

Item No: 12

Part Number: 15E813

UPC Number: 633955088719

Graco 15E813 Jam Nut is a small yet essential part that locks the siphon hose securely to the fluid ...

$6.30
QTY:
Product Image
Graco 15B652 Suction Swivel Washer

Item No: 13

Part Number: 15B652

UPC Number: 633955017795

Graco 15B652 Suction Swivel Washer is an OEM sealing washer designed to prevent leaks and maintain p...

$6.30
QTY:
Product Image
Graco 103413 O-Ring Packing

Item No: 14

Part Number: 103413

UPC Number: 633955142169

Graco 103413 O-Ring Packing ensures a leak-free seal and consistent pressure in your Graco airless s...

$6.30
QTY:
Product Image

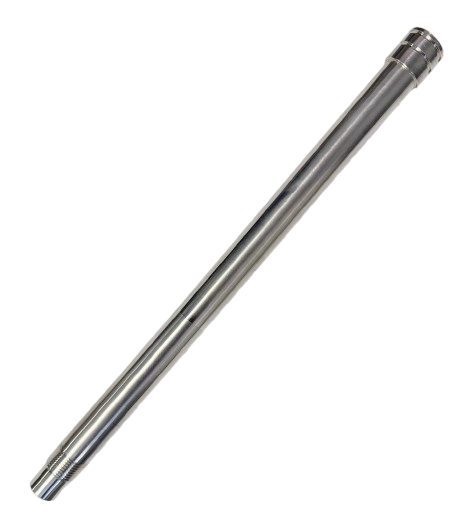

Graco 15E805 Intake Suction Tube

Item No: 15

Part Number: 15E805

UPC Number: 633955088009

The Graco 15E805 Intake Suction Tube ensures efficient fluid suction in Graco pump assemblies: Fu...

Retail Price: $34.60
You save: $0.69 (1.99%)
Our Price: $33.91
QTY:
Product Image
Graco 246385 Inlet Strainer 7/8

Item No: 16

Part Number: 246385

UPC Number: 633955921535

Graco 246385 Inlet Strainer (7/8") keeps debris from entering your sprayer pump, helping maintain pe...

Retail Price: $15.80
You save: $5.06 (32.03%)
Our Price: $10.74
QTY:
Product Image
Graco 276888 Drain Line Clip

Item No: 17

Part Number: 276888

UPC Number: 633955018358

Graco 276888 Drain Line Clip securely holds the drain/prime hose and suction tube in place, preventi...

$6.30
QTY:
Product Image
Graco 119426 Machined Hex Washer Head Screw

Item No: 18

Part Number: 119426

UPC Number: 633955084186

Ensure secure and reliable assembly in your Graco equipment with the 119426 Machined Hex Washer Head...

$11.02
QTY:
Product Image
Graco 287411 Cart Frame for 3400/3900 Sprayers

Item No: 19

Part Number: 287411

UPC Number: 633955088047

The Graco 287411 Cart Frame provides a solid foundation for your sprayer, ensuring stability, balanc...

Retail Price: $564.00
You save: $82.34 (14.60%)
Our Price: $481.66
QTY:
Product Image
Graco 105510 Spring Lock Washer (Hi-Collar)

Item No: 34

Part Number: 105510

UPC Number: 633955507043

The Graco 105510 Spring Lock Washer (Hi-Collar) provides secure fastening in high-vibration applicat...

$8.74
QTY:
Product Image
Graco 108803 Screw

Item No: 35

Part Number: 108803

UPC Number: 633955082199

The Graco 108803 Screw is a durable hex socket head screw that ensures secure fastening of component...

$8.74
QTY:
Product Image
Graco 183401 Parallel Key

Item No: 36

Part Number: 183401

UPC Number: 633955395282

The Graco 183401 Parallel Key secures rotating components in your sprayer, ensuring smooth operation...

$8.74
QTY:
Product Image
Graco 193680 Clutch Rotor Armature Shaft Collar

Item No: 37

Part Number: 193680

UPC Number: 633955855496

The Graco 193680 Shaft Collar secures the clutch rotor armature to the shaft, ensuring smooth and re...

Retail Price: $200.00
You save: $20.8 (10.40%)
Our Price: $179.20
QTY:
Product Image
Graco 101682 Screw Cap

Item No: 41

Part Number: 101682

UPC Number: 633955444584

The Graco 101682 Screw Cap is a genuine OEM fastener designed for secure assembly of Graco airless s...

$24.80
QTY:
Product Image
Graco 287489 Hi-Cart Handle Assembly

Item No: 46

Part Number: 287489

UPC Number: 633955195936

Genuine Graco replacement part designed for easy maneuvering of Hi-Cart airless sprayers. Durable an...

Retail Price: $163.50
You save: $17 (10.40%)
Our Price: $146.50
QTY:
Product Image
Graco 109032 Pan Head Machine Screw

Item No: 48

Part Number: 109032

UPC Number: 633955196346

Graco 109032 Pan Head Machine Screw is an OEM fastener designed for multiple Graco sprayers, ensurin...

$9.89
QTY:
Product Image

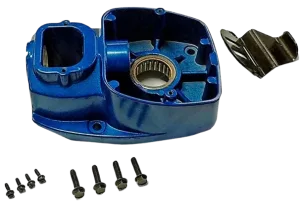

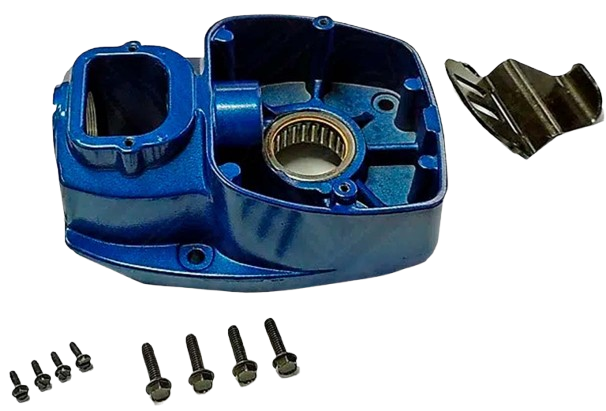

Graco 287483 Drive Housing Repair Kit

Item No: 49

Part Number: 287483

UPC Number: 633955095250

Retail Price: $430.00
You save: $62.78 (14.60%)
Our Price: $367.22
QTY:
Product Image
Graco 15E535 Machine Clutch Housing

Item No: 51

Part Number: 15E535

UPC Number: 633955084193

The Graco 15E535 Machine Clutch Housing protects the clutch assembly and ensures smooth, reliable op...

Retail Price: $200.00
You save: $20.8 (10.40%)
Our Price: $179.20
QTY:
Product Image
Graco 116074 Thrust Washer

Item No: 52

Part Number: 116074

UPC Number: 633955980358

Graco 116074 Thrust Washer helps reduce friction and maintain alignment in the drive mechanism of Gr...

$6.30
QTY:
Product Image

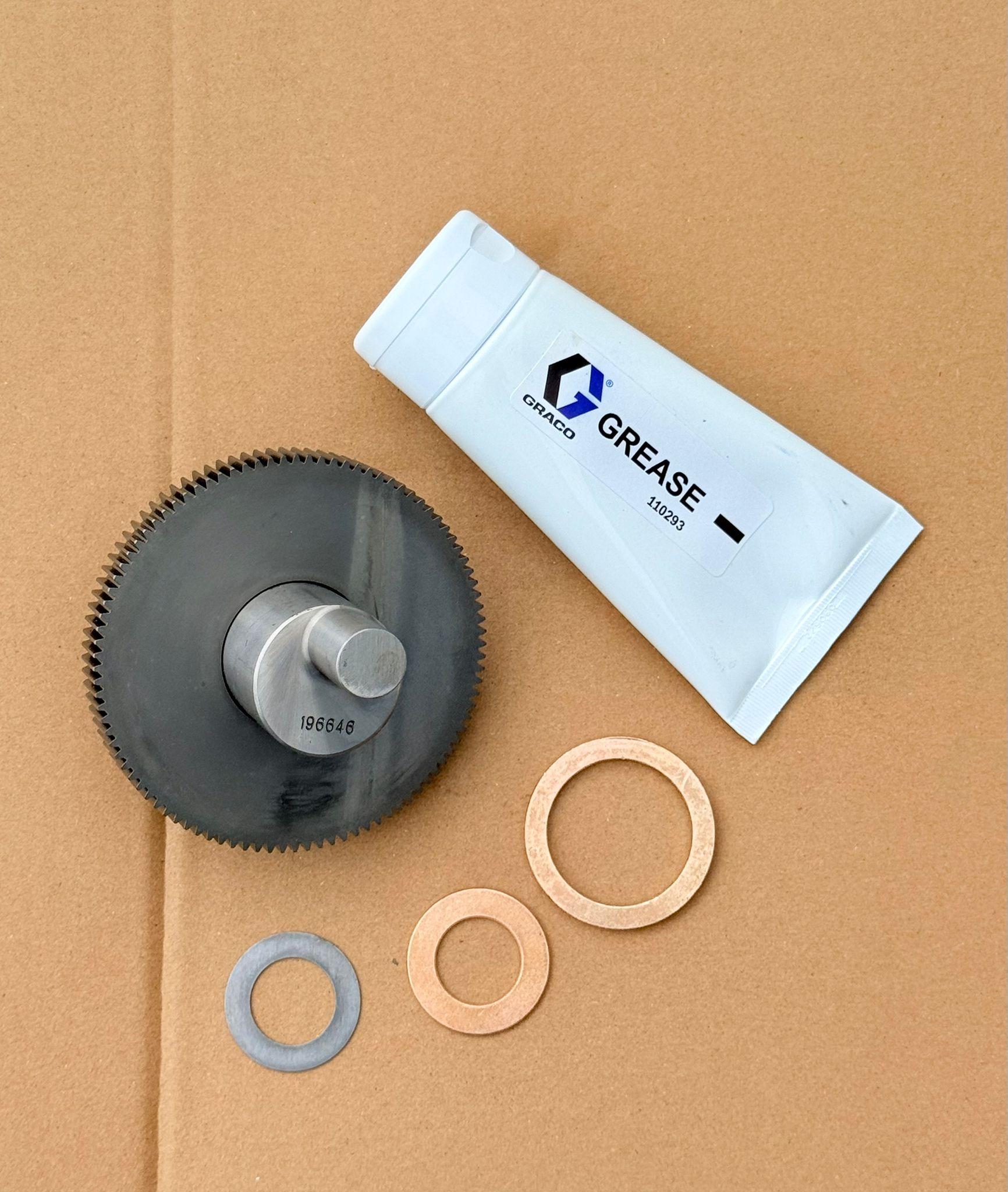

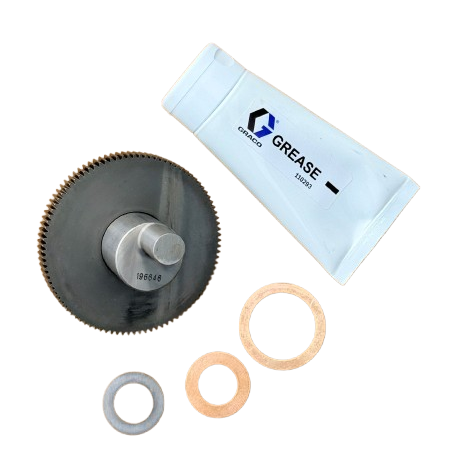

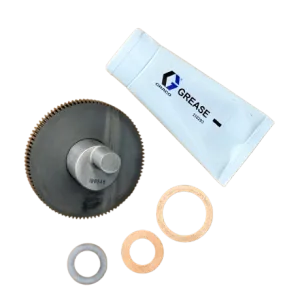

Graco 287484 Crankshaft Repair Kit

Item No: 53

Part Number: 287484

UPC Number: 633955095267

Bring worn pumps back to life with the precision-built Graco 287484 kit. A failing crankshaft c...

Retail Price: $218.50
You save: $27.31 (12.50%)
Our Price: $191.19
QTY:
Product Image
Graco 244240 Return Hose Assembly

Item No: 54

Part Number: 244240

UPC Number: 633955963597

Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...

Retail Price: $70.00
You save: $5.32 (7.60%)
Our Price: $64.68
QTY:
Product Image
Graco 241920 Threaded Deflector

Item No: 55

Part Number: 241920

UPC Number: 633955910379

241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...

$6.30
QTY:
Product Image
Graco 180131 Thrust Bearing

Item No: 56

Part Number: 180131

UPC Number: 633955624924

Graco 180131 Thrust Bearing ensures smooth operation of your sprayer pump by supporting axial loads ...

$11.19
QTY:
Product Image
Graco 107434 Thrust Bearing

Item No: 57

Part Number: 107434

UPC Number: 633955430051

Graco 107434 Thrust Bearing—OEM axial bearing for the drive/crank assembly. Stabilizes end-load, r...

$6.93
QTY:
Product Image
Graco 100214 Lock Washer

Item No: 59

Part Number: 100214

UPC Number: 633955064911

The Graco 100214 Lock Washer prevents nuts and bolts from loosening due to vibration, ensuring secur...

$8.74
QTY:
Product Image
Graco 108842 Screw - 5/16 - 24X3/4

Item No: 60

Part Number: 17W074

UPC Number: 755652798217

The Graco 108842 Screw - 5/16 - 24X3/4 provides secure fastening for Graco sprayers, ensuring reliab...

$9.81
Discontinued by Manufacturer
Product Image
Graco 119420 Pneumatic Wheel

Item No: 61

Part Number: 119420

UPC Number: 633955036376

The Graco 119420 Pneumatic Wheel is a durable, air-filled replacement wheel designed for Graco Hi-Bo...

Retail Price: $80.25
You save: $6.65 (8.29%)
Our Price: $73.60
QTY:
Product Image
Graco 287487 Front Cover Repair Kit

Item No: 62

Part Number: 287487

UPC Number: 633955095311

Graco 287487 Kit, Repair, Front Cover, 3400

Retail Price: $60.50
You save: $4.6 (7.60%)
Our Price: $55.90
QTY:
Product Image
Graco 112395 Screw

Item No: 64

Part Number: 112395

UPC Number: 633955589308

Secure your Graco equipment with the durable 112395 Screw, designed for heavy-duty fastening and rel...

$6.30
QTY:
Product Image
Graco 15C871 Leg Cap

Item No: 67

Part Number: 15C871

UPC Number: 633955031371

Protect your sprayer’s legs and ensure stable operation with this durable OEM leg cap. Fits 650...

$6.30
QTY:
Product Image
Graco 100020 Lock Washer

Item No: 68

Part Number: 100020

UPC Number: 633955272040

The Graco 100020 Lock Washer is a genuine OEM fastener designed to prevent bolt loosening in Graco s...

$8.74
QTY:
Product Image
Graco 237686 Wire Ground Assembly with Clamp

Item No: 72

Part Number: 237686

UPC Number: 633955741928

Ensure proper grounding for your Graco sprayer to maintain safety and reliable performance. Fits ...

Retail Price: $98.25
You save: $8.15 (8.30%)
Our Price: $90.10
QTY:
Product Image
Graco 112798 Hexagonal Thread Forming Screw

Item No: 73

Part Number: 112798

UPC Number: 633955742567

Secure metering valves and filter housings in your Graco sprayer with this OEM hexagonal thread form...

$6.30
QTY:
Product Image
Graco 25P549 GMAX 3400 Control Box

Item No: 77

Part Number: 25P549

UPC Number: 755652950554

Retail Price: $459.00
You save: $67.01 (14.60%)
Our Price: $391.99
QTY:
Product Image
Graco 116038 Wave Spring Washer

Item No: 79

Part Number: 116038

UPC Number: 633955947979

The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...

$11.66
QTY:
Product Image
Graco 156306 Flat Washer

Item No: 80

Part Number: 156306

UPC Number: 633955237209

The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...

$18.77
QTY:
Product Image
Graco 113161 Screw

Item No: 81

Part Number: 113161

UPC Number: 633955824812

The Graco 113161 Screw is a genuine OEM hex-head flange screw designed for strong, vibration-resista...

$12.26
QTY:
Product Image
Graco 194126 Warning Safety Label

Item No: 90

Part Number: 194126

UPC Number: 633955871410

The Graco 194126 Warning Safety Label provides essential hazard warnings to ensure safe operation of...

$5.00
QTY:
Product Image
Graco 241926 High Pressure Coupled Hose Assembly

Item No: 93

Part Number: 241926

UPC Number: 633955908130

Graco 241926 High Pressure Hose Assembly is a coupled high pressure hose measuring 1/4" X 11" for va...

Retail Price: $53.00
You save: $2.91 (5.49%)
Our Price: $50.09
QTY:
Product Image
Graco 16X353 Brand Label GMAX 3400 Front

Item No: 94

Part Number: 16X353

UPC Number: 633955678507

Graco 16X353 Bland Label

$17.03
QTY:
Product Image
Graco 15E891 Axle Clip

Item No: 95

Part Number: 15E891

UPC Number: 633955088597

The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...

$6.30
QTY:
Product Image
Graco 15F638 Safety Label

Item No: 99

Part Number: 15F638

UPC Number: 633955041431

The Graco 15F638 Safety Label is a genuine OEM warning decal designed to maintain operator safety an...

$5.00
QTY:
Product Image
Graco 114678 Strain Relief Bushing

Item No: 100

Part Number: 114678

UPC Number: 633955886087

The Graco 114678 Strain Relief Bushing protects cables and wires from stress and friction, ensuring ...

$6.30
QTY:
Product Image
Graco 119569 Strain Relief Bushing

Item No: 101

Part Number: 119569

UPC Number: 633955037076

The Graco 119569 Strain Relief Bushing is an OEM part that protects electrical cables from wear and ...

$7.94
QTY:
Product Image
Graco 290228 Burn Warning Safety Label

Item No: 111

Part Number: 290228

UPC Number: 633955705739

Graco 290228 Burn Warning Safety Label is a self-adhesive caution decal that alerts users to hot sur...

$5.00
QTY:
Product Image
Graco 288420 Contractor Airless Spray Gun

Item No: 123

Part Number: 288420

UPC Number: 633955215764

Graco 288420 Contractor Airless Spray Gun is built for professional painters who need precision, com...

Retail Price: $450.00
You save: $173.25 (38.50%)
Our Price: $276.75
QTY:
Product Image
Graco 240794 BlueMax II Airless Hose

Item No: 124

Part Number: 240794

UPC Number: 633955862562

Graco 240794 BlueMax II Airless Hose is a durable, lightweight 1/4" x 50 ft hose designed for high-p...

Retail Price: $94.75
You save: $22.44 (23.68%)
Our Price: $72.31
QTY:
Product Image
Graco 15F354 Oil Funnel

Item No: 135

Part Number: 15F354

UPC Number: 633955097018

The Graco 15F354 Oil Funnel is a compact, genuine OEM accessory used for clean and easy oil filling ...

$12.85
QTY:
Product Image
Graco 16X983 Brand Label Standard Series

Item No: 149

Part Number: 16X983

UPC Number: 633955683846

The Graco 16X983 Brand Label is a genuine OEM identification tag for Standard Series sprayers, ensur...

$9.35
QTY:

Power Up Your Projects with Genuine Graco GMAX 3400 Standard Series Gas Airless Sprayer Parts

When precision and performance matter, professionals choose Genuine Graco GMAX 3400 Standard Series Gas Airless Sprayer Parts from Sprayersandparts.com. We’re your one-stop solution for OEM-approved parts—whether you're maintaining your Graco 3400 or sourcing components for related models like the Graco 395, Ultra Max II 695, or Graco Magnum XR7.

With our friction-free shopping experience, fast fulfillment, and expert support, it's no wonder contractors nationwide trust us to keep their jobs moving and margins strong.

Why Choose OEM Graco GMAX 3400 Parts?

Not all sprayer parts are created equal. When you choose genuine Graco GMAX 3400 gas sprayer parts, you’re investing in the long-term reliability and safety of your equipment.

Key Benefits of Genuine GMAX 3400 Parts:

  • Precision Fit: Built to exact tolerances for seamless compatibility and maximum uptime.

  • Proven Performance: Each part is rigorously tested for chemical compatibility, pressure resistance, and field durability.

  • Backed by Graco & Us: Manufacturer warranties plus our hands-on technical support ensure total peace of mind.

Comprehensive Parts Inventory for the Graco GMAX 3400 & More

Whether you're upgrading your current unit or rebuilding a legacy sprayer, our selection has you covered. From small consumables to critical assemblies, find everything you need including:

  • GMAX 3400 Filters, Seals & Pump Kits

  • Graco 395 Repair Parts & Maintenance Kits

  • Graco Magnum XR7 & LTS 17 Accessories

  • Graco Ultra Max II 695 ProContractor Components

  • Recoil Starters, Prime Valves, and Inlet Strainers

Each product listing includes detailed specs, dimensions, material grades, and pressure ratings—making part selection quick, accurate, and stress-free.

Fast Shipping & Pro-Level Support

Speed matters on the jobsite. That's why orders placed by 12 PM CST ship same-day from Graco warehouse ( Terms & Conditions apply). Plus, our technicians are standing by to answer questions about torque specs, compatibility, and installation techniques.

Need help with a Graco paint sprayer repair near you? We’ll guide you through the process—even if you’re working remotely or under a tight deadline.

Pro Tips: Extend the Life of Your GMAX 3400 Sprayer

Getting the most from your Graco sprayer requires more than just quality parts. Here are some pro maintenance tips to keep your equipment performing flawlessly:

  • Track service intervals to preemptively replace wear items and avoid costly downtime.

  • Always pair new seal kits with fresh lubricant to extend pack-off life.

  • Keep a backup sprayer—like the Ultra Max II 695 ProContractor—on hand for seamless job transitions.

  • Use color-coded storage bins to separate similar items (e.g., Graco paint sprayer parts vs. Graco drywall texture machine parts).

Ready to Maximize Productivity?

Whether you're servicing a workhorse like the Graco GMAX 3400, upgrading your shop with Magnum LTS 17 sprayer manuals, or sourcing hard-to-find parts for discontinued models, Sprayersandparts.com is your trusted partner.

Browse our complete inventory of Graco GMAX 3400 Standard Series Gas Airless Sprayer Parts and experience the difference that comes with OEM quality and expert support.

Quality You Can Feel. Performance You Can Trust.

Subscribe to our newsletter to get exclusive discounts and new theme launches right in your inbox.

You may unsubscribe at any moment. For that purpose, please find our contact info in the legal notice.

Payment Method   Payment Method   Payment Method   Payment Method

ADDRESS
