Graco 15G563 Prime Drain Valve Handle

The Graco 15G563 Valve Handle provides smooth, reliable control for valve operation in Graco spray systems.

Ergonomic grip for comfortable use
Durable, solvent-resistant construction
Direct OEM replacement for precise fit and control

$15.3

Based on 0 reviews

Description

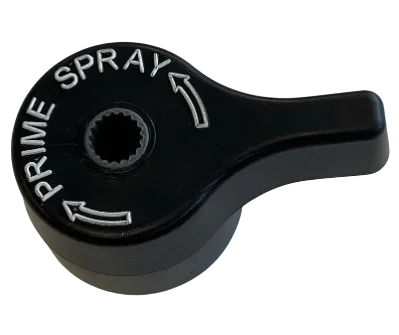

Graco 15G563 Valve Handle

The Graco 15G563 Valve Handle is a precisely molded replacement control lever designed for prime, drain, or system-isolation valves in heavy-duty industrial sprayer systems. Crafted for durability and ergonomic operation, it enables clear, intuitive valve actuation and maintains alignment with original equipment specifications.

Key Features & Specifications

Function	Serves as the manual actuation lever for a fluid-control valve, allowing operators to reliably open, close or isolate the fluid path in paint or coating systems.
Construction & Material	High-impact polymer or composite handle designed to resist solvents, abrasion and frequent operation; fitted with a metal mounting stem to match valve shaft tolerances.
Ergonomics & Use	The handle features a contoured grip that supports comfortable, controlled operation even when wearing gloves or in job-site conditions.
Fit & Compatibility	Designed to directly replace the original handle on qualified Graco valve assemblies—ensuring correct mounting geometry, tactile feedback and visual position indication.

Why Choose This Valve Handle?

Precision and repeatability in manual valve operation is essential in coating and fluid-handling systems. The 15G563 handle offers exact OEM dimensions and durability, preventing looseness, misalignment or operator fatigue that can occur with generic replacements. Replacing a worn or damaged handle ensures reliable control and maintains professional system performance.

Installation & Maintenance Tips

Depressurise the system and ensure valves are in the closed position before removing the original handle.
Inspect the valve shaft and mounting area for corrosion, residue or damage; clean thoroughly prior to installing the new handle.
Slide the new handle onto the valve stem ensuring correct orientation (open/closed indicator aligned), then secure the mounting screw or pin to proper torque.
After installation, cycle the valve a few times to confirm smooth movement, proper detent positions and absence of wobble or play.
During periodic inspection, check for signs of wear in the grip surface, faded position indicators, or looseness—replace the handle if any of these conditions are present to maintain operational reliability.

Frequently Asked Questions

While the handle may physically fit similar valves, it is specifically engineered to match the original Graco mounting geometry and shaft dimensions—verify model compatibility before substitution.

Replace if the handle is cracked, the grip surface is worn, excessive play or looseness is evident, or if the open/closed position is no longer clearly indicated or maintained.

Using a non-OEM handle may lead to improper fit, reduced durability, poor tactile feedback or misalignment on the valve shaft. Using the factory-specified 15G563 helps ensure correct functionality and long-term reliability.
