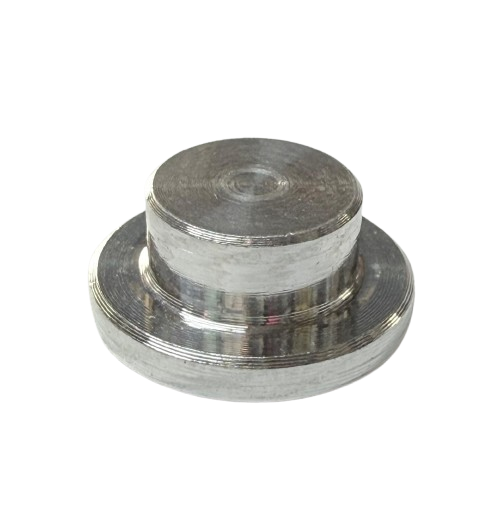

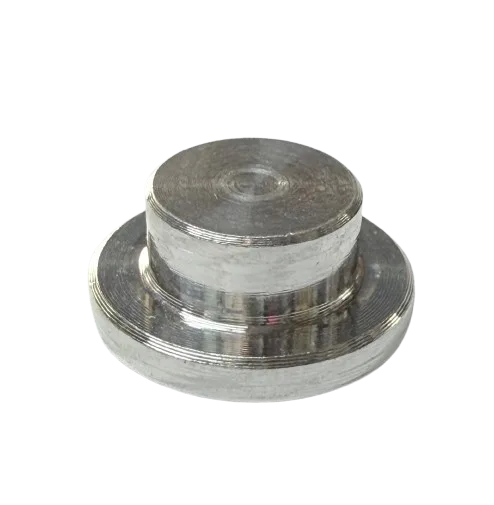

Graco 15J528 Spring Guide

The Graco 15J528 Spring Guide stabilizes internal return springs, promoting consistent operation and reducing component fatigue.

Precision spring guide
Helps maintain spring alignment
Durable construction
Easy to install and service

$7.51

Based on 0 reviews

Description

Graco 15J528 Spring Guide – Product Overview

Compatible Machines

Graco Ultra Max II 395
Graco Ultra Max II 595
Graco Ultra Max II 695
Graco Ultra Max II 795
Graco Ultra Max II 1095
Graco Ultra Max II 1595

The Graco 15J528 Spring Guide is designed to support and align internal return springs in sprayer mechanisms. By keeping the spring centered and stable, it helps maintain consistent spring tension and prevents premature wear or misalignment.

Key Feature	Description
Precise Alignment	Keeps springs centered and aligned for consistent force.
Reduces Fatigue	Prevents side-loading and uneven wear on springs.
Robust Build	Constructed to endure repeated cycling.
Easy to Replace	Serves as a direct-fit component in maintenance routines.

With the 15J528 guide installed, your sprayer’s internal springs operate more reliably, reducing the risk of binding and extending the life of your return spring assemblies.

Installation & Maintenance Tips

Disassemble under no pressure and clean the spring cavity before installation.
Ensure the guide is fully seated and aligned correctly before reassembly.
Inspect for wear or deformation during routine maintenance.
Replace the guide if you observe twisting, cracks, or misalignment.
Replace return springs if they show signs of fatigue or inconsistent springback.
