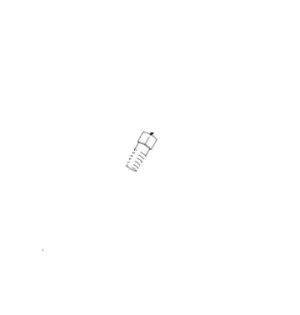

Graco 101543 Screw
$7.20
Available to Order
The Graco 101543 Screw is a genuine OEM fastener designed for reliable assembly in Graco spray guns and accessories.
- Part Number: 101543
- Thread Size: #8-32
- Length: 3/8 inch (approx.)
- Used On: Graco 204000 Series J Spray Gun
- Type: Round-head machine screw
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 101543 Screw — Product Details
Compatible Machines
- Graco 204000 Series J Heavy Fluid Air Spray Gun
Overview
The Graco 101543 Screw is an OEM fastener referenced in Graco parts lists. It is a round-head machine screw with #8-32 threads and approximately 3/8 in length, commonly used to secure internal components on select Graco spray guns.
Specifications
| Part Number | 101543 |
|---|---|
| Type | Round-head machine screw |
| Thread Size | #8-32 (UNC) |
| Length | 3/8 in (approx.) |
| Application | Fastening/internal hardware on select Graco spray guns |
| OEM Quality | Genuine Graco replacement part |
Fitment Notes
- Confirmed for Graco 204000 Series J (Heavy Fluid Air Spray Gun) via OEM parts list.
- For other units, verify by model number and parts diagram before ordering.
Frequently Asked Questions
It’s a round-head machine screw with #8-32 threads and about 3/8 in length, specified by Graco for use in certain spray gun assemblies.
Confirmed fit for Graco 204000 Series J Heavy Fluid Air Spray Gun. Other Graco equipment may also reference part #101543—always confirm against your unit’s OEM parts list.
Locate your sprayer or gun’s model number, open the official parts manual, and search for 101543. If listed, it fits. If unsure, contact support with your model and serial number.
Yes—Graco 101543 is a genuine OEM replacement screw as referenced in Graco documentation.
