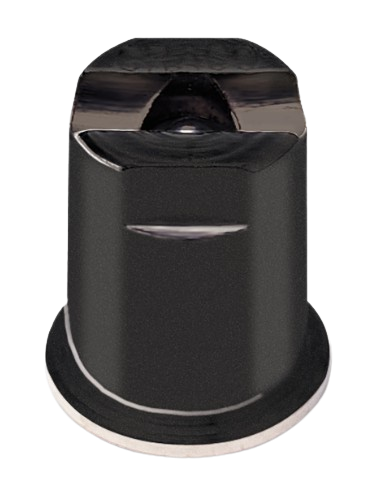

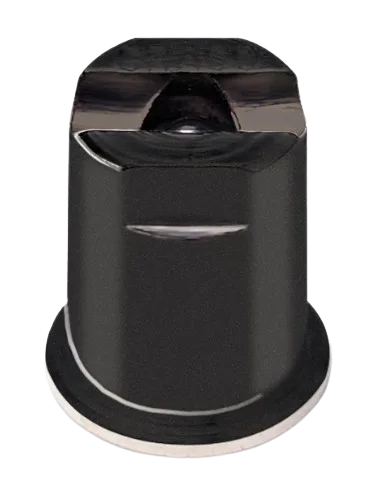

Graco 163416 Fine Finish Flat Tip, 416

The Graco 163416 Fine-Finish Flat Tip 416 ensures a smooth, professional coating with accurate fan control, perfect for detailed surfaces and large panels alike.

  • Tip Type: Fine-Finish Flat Tip
  • Orifice Size: 0.016–0.020 inch
  • Fan Width: 10–14 inches
  • Compatible Machines: Ultra Max II 495, Ultra Max II 695, Mark V ProContractor, Mark X ProXChange, GMAX 3950
  • Material: Hardened stainless steel for durability

List Price: $66
You save: $22.77 (34.50%)
Sale Price: $43.23
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 163416 Fine-Finish Flat Tip 416: High-Precision Spray Tip for Smooth Coatings

Compatible Machines

Machine Model
Graco Ultra Max II 495
Graco Ultra Max II 695
Graco Mark V ProContractor
Graco Mark X ProXChange
Graco GMAX 3950

Product Description

The Graco 163416 Fine-Finish Flat Tip 416 provides precise, even coatings with minimal overspray. Its fine-finish flat tip design allows accurate fan width control for cabinets, trim, doors, and other detailed or large surface applications.

Technical Overview

Tip Type Fine-Finish Flat Tip
Orifice Size 0.016–0.020 inch
Fan Width 10–14 inches
Material Hardened stainless steel
Application Fine-detail architectural and industrial coatings

Installation & Usage Tips

  • Depressurize sprayer before installing the tip.
  • Ensure the tip locks securely into the manifold or holder.
  • Flush thoroughly after use to maintain tip performance.
  • Inspect tip regularly for consistent fan width and quality spray pattern.

Frequently Asked Questions

Suitable for primers, enamels, stains, latex, and other professional coatings.

Flush with water or compatible solvent, avoiding metal objects in the orifice.

Yes, it is compatible with all listed machines and supports pressures up to 4000 psi.

With proper maintenance and cleaning, it lasts for thousands of spray cycles.
