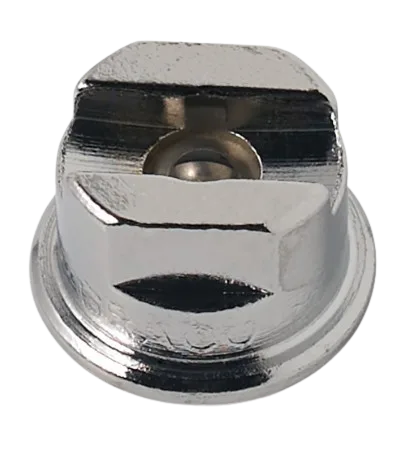

Graco 163509 Silver Flat Tip, 509

The Graco 163509 Silver Flat Tip 509 delivers a wide, even fan spray ideal for medium-viscosity coatings, making it perfect for walls, ceilings, and siding applications.

  • Tip Size: 509 (0.091" orifice)
  • Fan Width: Approx. 14 inches
  • Max Pressure: 5000 psi
  • Ideal for primers, latex, and acrylic paints
  • Compatible with Graco airless sprayers supporting Silver Flat Tips

List Price: $54.25
You save: $18.71 (34.49%)
Sale Price: $35.54
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 163509 Silver Flat Tip 509 – Professional Airless Spray Tip

Compatible Machines

  • Graco airless sprayers rated up to 5000 psi
  • Sprayers compatible with Silver Flat Tips series
  • Ideal for architectural, industrial, and medium-coating applications

Technical Overview

Specification Value
Tip Size 509
Orifice Diameter 0.091 inch
Fan Width Approx. 14 inches
Max Working Pressure 5000 psi (345 bar)
Ideal Coatings Medium-viscosity primers, latex, and acrylic paints

Installation & Usage Tips

  • Use the correct tip guard and seal assembly for Silver Flat Tips.
  • Ensure tip is properly seated to maintain a uniform spray pattern.
  • Keep a steady motion while spraying for even coverage.
  • Flush the tip after use to prevent clogging and extend tip life.

Frequently Asked Questions

Medium-viscosity primers, latex, and acrylic paints.

Yes, suitable for exterior walls, ceilings, and siding with proper coatings.

Compatible with Graco sprayers supporting Silver Flat Tips up to 5000 psi.

Flush after use, inspect for wear, and replace if the spray pattern becomes uneven.
