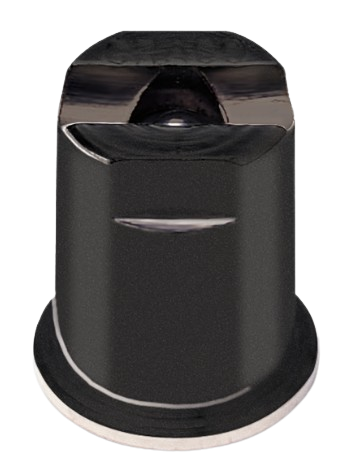

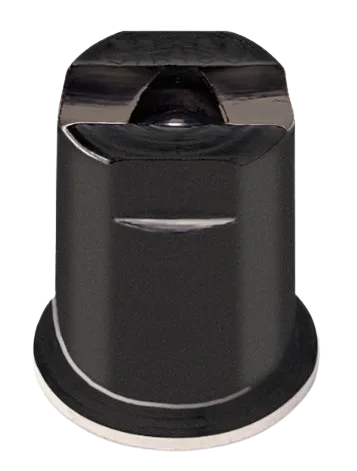

Graco 163818 Fine Finish Flat Tip

The Graco 163818 Fine Finish Flat Tip 818 is engineered for precision coating applications, giving smooth and consistent finishes for fine-detail projects.

Orifice Size: 0.018″ for fine-finish materials
Fan Width: 16–18″ wide pattern
Best For: Lacquers, varnishes, clear coats, enamels
Fits: Standard 7/8″ (22 mm) Graco spray guns and guards

Retail Price: $63.25

You save: $20.55 (32.49%)

Our Price: $42.7

Based on 0 reviews

Description

Precision 0.018″ Fine-Finish Tip (Model 818)

Compatible Machines

The Graco 163818 Fine Finish Flat Tip fits most Graco airless sprayers that accept standard 7/8″ (22 mm) tip guards and are configured for fine-finish materials. Common matches include:

Ultra Max II 695 / 795 / 1095 / 1595
Mark V HD 3-in-1, Mark X HD 3-in-1
GMAX II 3900 / 5900 (when set up for fine finish)
GH 230 / GH 300 (with appropriate airless gun & guard)
Magnum X5, Magnum X7
ProX17, ProX19, ProX21

Overview

The Graco 163818 is a Fine Finish Flat Tip designed for precision, low-flow spraying of trim, cabinetry, doors, furniture, and other detail work where a smooth finish matters. It pairs best with fine-finish guns and properly thinned coatings.

Technical Specifications

Part Number	163818
Tip Series	Fine Finish Flat Tip (Model 818)
Orifice Size	0.018″
Fan Width*	~16–18″ at ~12″ from surface (technique & pressure dependent)
Recommended Use	Clear coats, lacquer, varnish, polyurethane/urethane, enamel, fine-finish coatings
Compatible Guard / Thread	Standard Graco guard, 7/8″ (22 mm) thread (use correct guard/adapter if required)
Typical Pressure Range	Adjust to atomize while minimizing overspray; do not exceed gun/guard rated pressure

Key Benefits

Consistent, fine-finish atomization for smooth results on trim and cabinetry.
0.018″ orifice balances control with productivity for many finish coatings.
Wide 16–18″ fan helps maintain even coverage on doors and panels.
Works with common Graco airless sprayers using standard 7/8″ guards.

Setup & Usage Notes

Start at lower pressure and increase only until a clean, even pattern is achieved.
Strain materials and maintain clean filters to reduce tip clogging.
Match hose ID and length to fine-finish flow needs; avoid excessive hose length when possible.
Use the correct tip guard (7/8″); older 11/16″ guns require an adapter or different guard.

Frequently Asked Questions

If your gun uses a 7/8″ (22 mm) tip guard and is rated for the operating pressure you intend to use, the Graco 163818 will fit. For older guns with 11/16″ guards, use the appropriate adapter or a compatible guard.

Fine-finish coatings such as lacquer, varnish, urethane, clear coats, and properly thinned enamels. Always test and adjust pressure for a clean, consistent fan.

Match orifice size to your coating viscosity and desired flow. The 0.018″ size offers a good balance for many trim and cabinet coatings; thicker materials may need a larger orifice, while very thin materials may atomize better with smaller sizes.

Keep materials filtered, relieve pressure before servicing, clean promptly after use, and store the tip dry. Replace worn tips to maintain pattern and finish quality.
