Precision Fine-Finish Control for Smooth, Even Coats
Compatible Machines / Systems
This tip fits when your spray gun uses a 7/8" (22 mm) Fine Finish Flat Tip Guard such as Graco 220247. If your sprayer is paired with a gun that accepts this guard, it will work.
- Any Graco airless sprayer paired with a gun that accepts Fine Finish Flat Tip Guard 220247 (7/8" thread)
- Graco Silver Plus airless spray gun (e.g., model 235462) configured for Fine Finish Flat Tips
- Most professional Graco stand/cart/hi-boy sprayers when used with a compatible fine-finish gun and the above guard
About Graco 163822 Fine Finish Flat Tip (822)

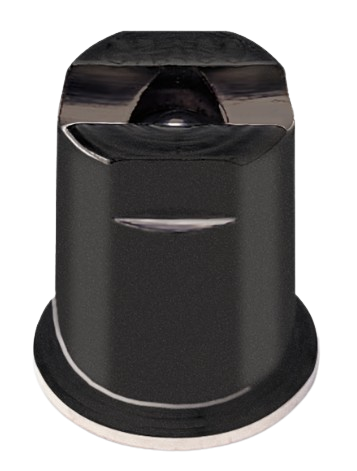

The Graco 163822 Fine Finish Flat Tip (code 822) is an airless flat spray tip designed for ultra-smooth finishing of trim, doors, cabinets, and fine woodwork. It delivers a consistent 16–18" fan with an 0.022" orifice for controlled flow on clear coats, lacquers, varnishes, urethanes, and enamels.
Key Highlights
- Fine Finish pattern for glass-smooth topcoats and detail work
- Flat (non-reversible) tip for precise edge definition and low overspray
- 16–18" fan width (approx.) for efficient coverage on doors and panels
- 0.022" orifice sized for many fine-finish enamels and clear coatings
- Use with Graco 220247 Fine Finish Flat Tip Guard (7/8" thread)
Technical Specifications
| Part Number |
163822 |
| Tip Code |
822 (8 = fan size indicator, 22 = 0.022" orifice) |
| Pattern Type |
Fine Finish Flat (non-reversible) |
| Approx. Fan Width |
16–18" (application dependent) |
| Orifice Size |
0.022" |
| Recommended Guard |
220247 Fine Finish Flat Tip Guard (7/8" / 22 mm thread) |
| Typical Max Working Pressure* |
Up to 3000 psi (*verify against your gun/sprayer rating) |
| Typical Materials |
Lacquers, varnishes, polyurethanes, enamels, fine water/solvent-borne topcoats |
Usage Notes
- Always match the guard and thread—this tip is for the Fine Finish Flat guard (7/8").
- Strain coatings and use clean filters to protect the 0.022" orifice.
- Start with lower pressure and increase only until a uniform fan is achieved.
Frequently Asked Questions
A flat (non-reversible) tip prioritizes edge control and a very smooth pattern—great for trim and cabinetry. A reversible (RAC) tip can be flipped to clear clogs quickly, trading a bit of pattern finesse for convenience. Many finishers choose Fine Finish Flat for the very best surface quality on detail work.
Compatibility depends on the gun & guard, not only the pump. If your gun uses the 7/8" Fine Finish Flat Guard (p/n 220247), the 163822 tip will fit. Check your gun manual for the guard/thread spec and maximum pressure rating.
Medium-flow fine-finish enamels, lacquers, varnishes, and polyurethanes are common matches. Always fine-strain your material and size the filter appropriately to maintain a clean, uniform fan.
Start at the lowest pressure that fully atomizes the coating, hold a steady 10–12" gun distance, overlap passes by ~50%, and keep the gun perpendicular to the surface. Replace worn tips to maintain a crisp Fine Finish pattern.
