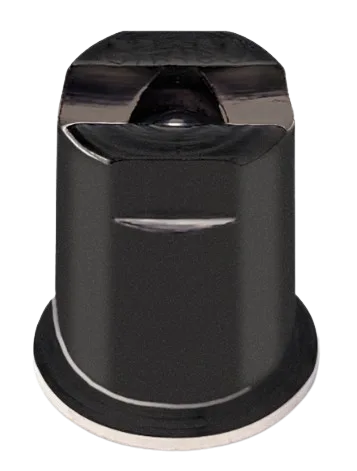

Graco 163824 Fine Finish Flat Tip

Graco 163824 Fine Finish Flat Tip (824) for smooth, cabinet-grade results with fine-finish coatings. Verify your gun uses a 7/8" (22 mm) Fine Finish Flat Tip Guard before installing.

Orifice: 0.024"
Fan Width: 16–18" (typical)
Guard: Fine Finish Flat Tip Guard (e.g., 220247)
Best For: lacquers, varnishes, urethanes
Note: Confirm sprayer’s max recommended tip size before use

Retail Price: $63.25

You save: $20.55 (32.49%)

Our Price: $42.7

Based on 0 reviews

Description

Fine Finish Flat Tip — 163824 (Model 824) Overview

Compatible Machines

Compatibility depends on the spray gun & tip guard. This Fine Finish Flat Tip fits guns using the 7/8" (22 mm) Fine Finish Flat Tip Guard (e.g., Part 220247).

Graco Silver Plus Airless Spray Gun (with 220247 guard)
Most Graco airless sprayers when paired with a gun that accepts a 7/8" Fine Finish Flat Tip Guard (confirm your sprayer’s recommended max tip size)

Graco 163824 Fine Finish Flat Tip (824) delivers a smooth, uniform fan for cabinet-grade and trim finishes with fine-finish coatings.

Key Specifications

Part Number	163824 (Tip code: 824)
Orifice Size	0.024"
Typical Fan Width	16–18" (at standard spray distance)
Max Working Pressure	Up to 3000 psi (207 bar)
Recommended Materials	Lacquers, varnishes, urethanes, and other fine-finish coatings
Tip Family	Fine Finish Flat Tips (163xxx series)
Compatible Tip Guard	Fine Finish Flat Tip Guard (e.g., 220247, 7/8" / 22 mm threads)

Fan width varies by coating viscosity, pressure, and distance. Always follow your sprayer/gun manual; never exceed the lowest rated component.

Why Choose This Tip

Fine-finish fan for smooth, even coverage on doors, cabinets, trim, and furniture.
0.024" orifice balances flow and atomization for common fine-finish materials.
Pairs with the correct Fine Finish Flat Tip Guard for safe, accurate alignment.

Setup & Selection Hints

Material Type	Guidance
Thin (lacquer/varnish)	Start at lower pressure; increase until edges of fan are clean and uniform.
Medium (waterborne clear/urethane)	Warm/condition material per product TDS; ensure adequate filtration.
Heavier paints	May require a different tip/orifice size; verify sprayer’s rated max tip size.

Frequently Asked Questions

It fits when your spray gun accepts a 7/8" (22 mm) Fine Finish Flat Tip Guard (e.g., 220247) and your sprayer supports a 0.024" tip size. Always check your sprayer and gun manuals for approved tip sizes and guards.

Lacquers, varnishes, and urethane topcoats are typical. For heavier paints, confirm viscosity and consider a different tip size if atomization or fan shape is poor.

Yes. Use the Fine Finish Flat Tip Guard (7/8" / 22 mm, e.g., 220247) to ensure proper threading, alignment, and safety at the required pressure.

Keep filters clean, strain coatings, and replace the tip when fan edges round off or flow increases noticeably—tip wear enlarges the orifice and degrades finish quality.
