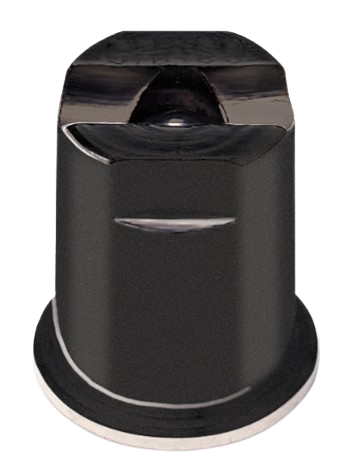

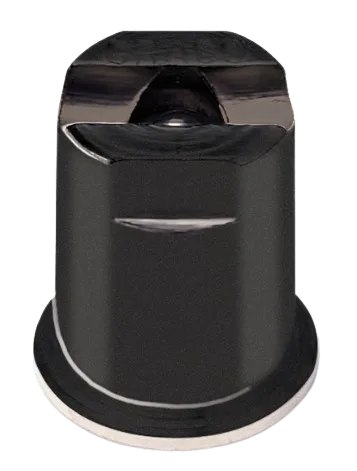

Graco 163826 Fine Finish Flat Tip

The Graco 163826 Fine Finish Flat Tip (826) delivers a soft, controlled fan for cabinetry, trim, and furniture. Pair with a Silver Plus gun using the correct flat-tip guard for best results.

Fan: approx. 16–18 in.
Orifice: 0.026 in.
Guard: 220247 flat-tip, 7/8"
Use With: Silver Plus Airless Spray Gun
Materials: lacquers, varnishes, urethanes
Max Pressure: up to ~3000 psi*
Note: not a RAC reversible tip

Retail Price: $63.25

You save: $20.55 (32.49%)

Our Price: $42.7

Based on 0 reviews

Description

Overview & Compatibility (Graco 163826 Fine Finish Flat Tip – 826)

Compatible Machines / Guns

This Graco 163826 Fine Finish Flat Tip (826) is a flat, non-reversible fine-finish tip. It is used on guns/rigs that accept the dedicated Fine Finish Flat Tip Guard (220247, 7/8" thread).

Graco Silver Plus Airless Spray Gun (with 220247 tip guard)
Graco electric & gas airless sprayers when paired with the Silver Plus gun (e.g., many Ultra Max II and GMAX II units that use a Silver Plus gun and 7/8" guard)

Key Details

Part Number	163826 (Fine Finish Flat Tip – 826)
Fan Pattern	16–18 in. (approx. 41–45 cm)
Orifice Size	0.026 in.
Max Working Pressure	Up to 3000 psi (depending on gun/pump limits)
Tip Guard Required	220247 Fine Finish Flat Tip Guard (7/8" thread)
Recommended Materials	Lacquers, varnishes, urethanes, and other fine-finish coatings
Series / Type	Fine Finish Flat Tip (163xxx series), airless spray tip

Where this tip excels

Cabinetry, millwork, doors, trim, furniture and other fine-finish surfaces
When a soft, controlled flat-fan pattern is preferred for thin-to-medium coatings

Setup & selection tips

Match filter/strain level to coating; keep clean to maintain fine atomization.
Start at the lowest pressure that fully atomizes; excessive pressure increases wear and overspray.
Confirm your gun uses the 220247 flat-tip guard; RAC X/5 reversible guards are not compatible with this tip style.

Frequently Asked Questions

No. Graco 163826 is a Fine Finish Flat tip and uses the dedicated Flat Tip Guard 220247 (7/8"). It is not compatible with RAC reversible guards.

Use sprayers that are paired with a Graco Silver Plus Airless Spray Gun equipped with the 220247 guard and operating within pressure/flow limits. Many Graco contractor rigs (e.g., selected Ultra Max II and GMAX II units) can be configured this way—verify your gun/guard and sprayer specifications before use.

Best for fine-finish materials such as lacquers, varnishes, and urethanes. Always follow the coating manufacturer’s recommendations for thinning and filtration.

The 826 size produces an approximate 16–18 inch fan with a 0.026 in. orifice (when sprayed at typical working pressures).
