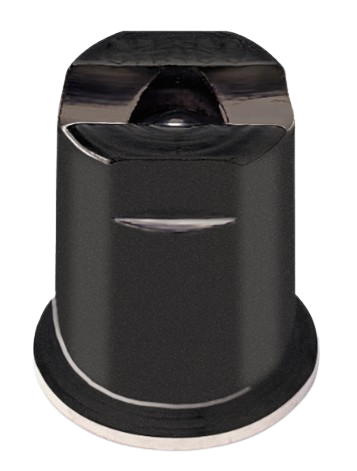

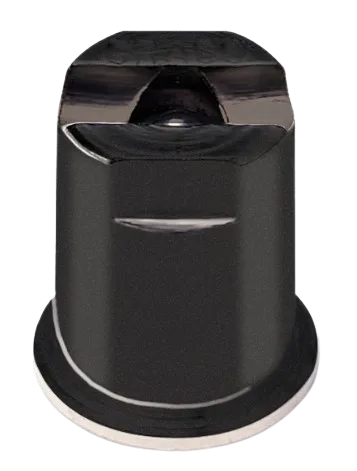

Graco 163832 Fine Finish Flat Tip

The Graco 163832 Fine Finish Flat Tip 832 delivers a smooth, controlled fan for trim, cabinets, and detail work. Confirm your gun/guard setup before purchase for best results.

Part #: 163832 | Tip Family: Fine Finish Flat Tip
Orifice: 0.032 in | Fan: ~16–18 in (material & pressure dependent)
Required Guard: 220247 Fine Finish Flat Tip Guard
Compatible Guns: e.g., Silver Plus Airless Spray Gun (verify guard/thread)
Best For: lacquer, varnish, urethane & other fine-finish coatings
Note: Verify your sprayer’s gun and guard compatibility before ordering.

Retail Price: $63.25

You save: $20.55 (32.49%)

Our Price: $42.7

Based on 0 reviews

Description

Key Details & Compatibility Overview

Compatible Machines

This Graco 163832 Fine Finish Flat Tip 832 installs on spray guns/guards that accept Fine Finish Flat Tips. Use the list below to confirm your setup:

Any Graco airless sprayer configured with a compatible gun such as the Silver Plus Airless Spray Gun (or equivalent).
Uses the required Fine Finish Flat Tip Guard (220247) with the correct thread/fit.
Sprayer/system can operate within the tip’s typical range (see specs below) for fine-finish materials.
Examples of professional lines that commonly support compatible guns/guards (verify your gun/guard): Ultra Max II (e.g., 695/795/1095/1595), Mark V HD, Mark X HD, GMAX II 3900/5900, GH series.

About the Graco 163832 Fine Finish Flat Tip 832

The 163832 is a Fine Finish Flat Tip engineered for smooth, high-quality finishing on trim, cabinets, doors, and similar detail work. Pair it with the Fine Finish Flat Tip Guard (220247) for safe operation and correct seating.

Specification	Detail
Part Number	163832
Tip Family	Fine Finish Flat Tip (832)
Orifice Size	0.032 in (typical for this model)
Fan Width	~16–18 in (material & pressure dependent)
Max Working Pressure	Up to ~3,000 psi (application dependent)
Required Guard	Fine Finish Flat Tip Guard (220247)
Recommended Materials	Fine-finish coatings such as lacquer, varnish, urethane, and similar low-to-medium viscosity finishes

Setup & Usage Tips

Use with the correct guard (220247) and ensure the guard seats firmly on the gun.
Start at lower pressure and increase only until a clean, even fan is achieved—avoid excessive pressure that can cause overspray.
Strain coatings and keep filters clean to reduce tip wear and maintain a consistent fan.
Monitor tip wear; worn fine-finish tips widen the fan and degrade finish quality.

Frequently Asked Questions

It fits when your sprayer is paired with a compatible gun (e.g., Silver Plus Airless Spray Gun) and the Fine Finish Flat Tip Guard (220247). If your current gun/guard differs, confirm compatibility before ordering.

Fine-finish materials like lacquer, varnish, and urethane. Always match pressure and thinning to the manufacturer’s guidance for best results.

Fan size depends on pressure, coating viscosity, filter condition, and tip wear. Begin at lower pressure and adjust until you see a uniform pattern without tails.

Not usually. If your 220247 guard is undamaged and locks securely, you can swap tips. Replace the guard if threads are worn or the lock no longer secures the tip properly.
