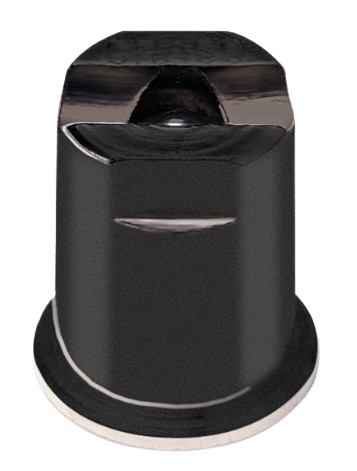

Graco 163924 Fine Finish Flat Tip, 924
$42.70
$63.25
Save 32%
Out of Stock
Precision tip for smooth finishing on professional airless rigs. Confirm your gun/guard before ordering to ensure a proper fit and finish.
- Part: Graco 163924 – Fine Finish Flat Tip 924
- Orifice: 0.024" | Fan: ~18" (at 12")
- Fits: Graco Silver Plus Airless Spray Gun (and compatible guards)
- Use for: lacquer, varnish, urethane, fine-finish coatings
- Tip code “924”: 9→fan width, 24→orifice size
This product has been discontinued by the manufacturer.
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatibility & Key Details for Graco 163924 – Fine Finish Flat Tip 924
Compatible Machines / Guns
This fine-finish flat tip is designed for airless fine-finish work. It directly fits the gun listed below and can be used on sprayers that accept the same gun/guard standard.
- • Graco Silver Plus Airless Spray Gun (direct fit)
- • Airless sprayers that use a Silver Plus–compatible tip guard and can support a 0.024" orifice and ~18" fan width (verify guard thread and pump capacity)
- • Typical professional airless rigs in the Ultra Max II / Mark / GMAX / GH families (model acceptance depends on gun/guard installed)
What is the Graco 163924 Fine Finish Flat Tip 924?
A fine-finish flat spray tip identified by code 924: the first digit “9” indicates an approximate 18" fan width (at 12"), and “24” indicates a 0.024" orifice. Optimized for smooth finishing with lacquers, varnishes, urethanes, and other fine-finish coatings.
Key Specifications
| Part Number | 163924 |
|---|---|
| Tip Code | 924 (≈ 18" fan, 0.024" orifice) |
| Spray Pattern | Approx. 18" fan width (at 12") |
| Orifice Size | 0.024" |
| Application | Fine-finish coatings (lacquer, varnish, urethane, similar) |
| Gun / Guard Fit | Silver Plus–style guard (confirm guard thread & seating) |
Usage & Setup Tips
- Start with the lowest pressure that achieves a full, even fan; increase only as needed.
- Use appropriately filtered material and gun filters to protect the 0.024" orifice from debris.
- Match tip to coating viscosity; for heavier materials you may need larger pumps or different tips.
- Verify your tip guard is compatible with Silver Plus pattern/seat geometry.
Frequently Asked Questions
The first digit (9) × 2 ≈ fan width at 12" (~18"). The last two digits (24) are the orifice size in thousandths of an inch (0.024").
It is intended for the Graco Silver Plus Airless Spray Gun. If your sprayer uses a compatible Silver Plus tip guard, the tip will typically fit. Always confirm thread/seat compatibility.
Fine-finish materials such as lacquer, varnish, and urethane. Thin and filter per manufacturer guidance for best atomization.
Start at lower pressure and increase only until the fan fully forms, keep filters clean, maintain consistent distance (~12"), and strain material to prevent partial blockages.
