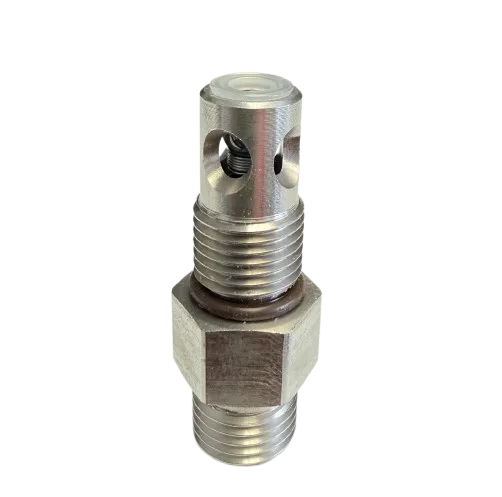

Graco 16E845 Pump Outlet Valve Repair Kit

The Graco 16E845 Pump Outlet Valve Repair Kit restores pressure and performance in Magnum-series airless sprayers by replacing the worn discharge valve. Ideal for fixing pulsation, loss of prime, or poor spray pattern.

OEM Graco replacement part
Includes valve assembly and small parts
Fits Magnum X5, X7, LTS 15, LTS 17, and Project Painter Plus
Quick and reliable pump repair solution

Retail Price: $60.25

You save: $4.57 (7.59%)

Our Price: $55.68

Based on 0 reviews

Description

Compatible Machines — 16E845 Outlet Valve Kit

Use the Graco 16E845 Pump Outlet Valve Repair Kit when your sprayer’s outlet (discharge) valve is worn or leaking. This kit restores proper sealing and flow so you can maintain consistent spray pressure and finish quality.

Magnum X5 (select series)
Magnum X7 (select series)
LTS 15
LTS 17
Project Painter Plus (Magnum homeowner series)

Product Overview

The Graco 16E845 Pump Outlet Valve Repair Kit replaces the discharge-side check valve components in compatible Magnum-series airless sprayers. Replacing a worn outlet valve helps prevent pressure loss, pattern flutter, and hard starts after priming.

Key Points

Genuine Graco repair kit for outlet (discharge) valve
Restores sealing and pressure consistency
Designed for select Magnum X5/X7, LTS 15/17, Project Painter Plus units
Ideal maintenance item when experiencing pulsation or pattern instability

What’s Typically Included

Outlet valve assembly and service small-parts needed for the repair (contents may vary by kit revision).

Specifications & Details

Part Number (SKU)	16E845
Item Type	Pump Outlet Valve Repair Kit
Function	Replaces the discharge-side check valve to restore sealing and pressure.
Compatible Series	Selected Magnum X5, Magnum X7, LTS 15, LTS 17, Project Painter Plus
Typical Symptoms Repaired	Pulsation at the gun, pressure drop, rough spray pattern, loss of prime/hold.
Notes	Match your sprayer’s exact model/series to confirm fit. Series designations can affect kit selection.

When to Choose 16E845

You own one of the compatible Magnum/LTS/Project Painter Plus models above.
You’re experiencing outlet valve wear symptoms (pulsing, poor pattern, hard restarts).
You want an OEM fix that maintains factory performance and reliability.

Frequently Asked Questions

Check your sprayer’s model and series label (e.g., X5/X7 with a specific series letter). If your unit is listed under the Compatible Machines section above, this kit is typically correct. When in doubt, share your model/series and we’ll verify before you order.

Common signs include pulsation at the gun, pressure instability, rough or uneven spray pattern, or difficulty maintaining prime/pressure after the pump stops cycling.

Yes—this kit includes the outlet valve assembly and associated small parts required for the service. Exact contents may vary by kit revision; if you need a contents breakdown, let us know your sprayer’s model/series.

Depressurize and unplug the sprayer, follow the service procedure in your model’s manual, keep the valve seat and bore clean, torque to spec, and test with water before paint. Replace worn inlet components at the same time if needed for a complete refresh.

The outlet valve controls flow from the pump to the hose (discharge side), while the inlet valve controls flow from the suction tube into the pump. Each has its own service kit; using the correct kit for each side ensures proper one-way flow and stable pressure.
