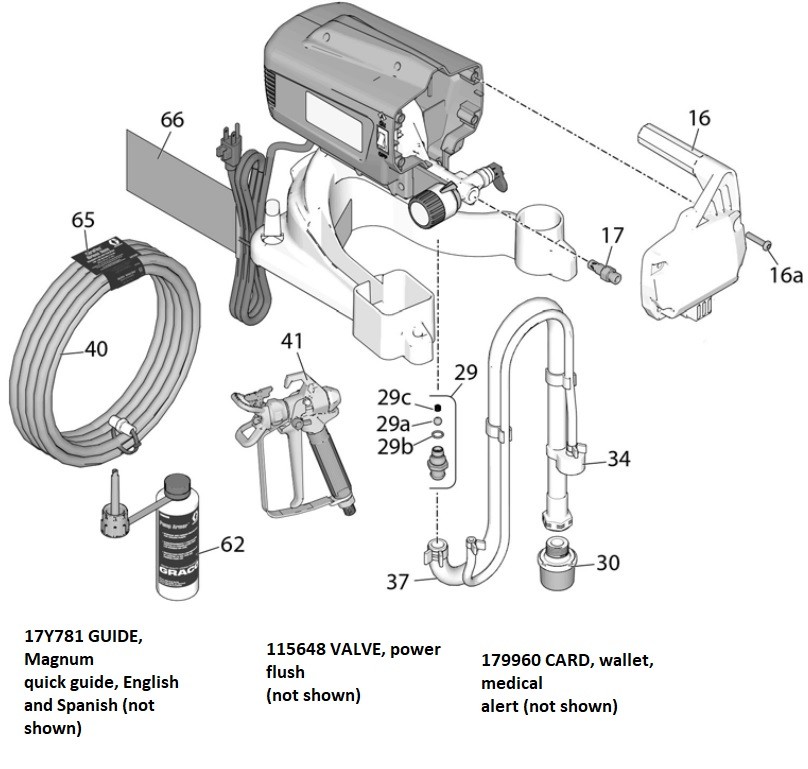

Sprayer and Parts Provide Graco Magnum Project Painter Plus 257025 Parts List | Get the Right Graco Magnum Project Painter Plus 257025 Parts List Components for Peak Performance
To maintain your sprayer operating at its best, we offer a comprehensive variety of Graco Magnum Project Painter Plus 257025 Parts at SprayersAndParts.com. Our premium replacement components guarantee seamless and effective operation, whether you're a professional painter taking on larger works or a homeowner doing do-it-yourself projects. Graco 24V074 Magnum Inlet Suction Set Assembly is an essential part of maintaining adequate paint flow because it facilitates the effective drawing of paint from the container to the sprayer. This crucial component guarantees steady suction, cutting down on downtime and increasing spraying effectiveness. Magnum Project Painter Plus 257025 is Graco’s best-selling DIY/Pro-sumer sprayer: a 10-lb stand unit that puts 0.24 gpm and 2 800 psi into a 0.015″ tip without the price shock of job-site rigs. It sprays walls, fences, garage doors—even small elastomeric roofs when you respect the tip limit. Like any airless, peak performance rides on fresh packings, a smooth rod and tight inlet valve seats. The OEM parts list keeps those consumables labelled, cross-referenced, and ready in your toolbox so “downtime” never shows on the schedule.
Graco 243011 Magnum SG2 Spray Gun, which is packaged and made with precision and durability in mind, is another essential replacement part. With its ergonomic grip and improved control, this spray gun makes it simpler to get a clean, expert-caliber finish. This high-performance SG2 model is essential whether you need to enhance your equipment or replace a worn-out spray gun. To maintain your sprayer performing at its peak, we also have filters, hoses, pump repair kits, spray tips, and pressure regulators in addition to these necessary parts. Our goal at SprayersAndParts.com is to offer premium Graco Magnum Project Painter Plus 257025 Parts at affordable costs. We make it simple for you to locate the appropriate parts for your sprayer with our quick shipping and knowledgeable customer service. Make sure your Graco sprayer consistently produces exceptional results by visiting our website today!
Why Choose Genuine Graco Magnum Project Painter Plus Parts?
- Exact-Fit Threads—fine-pitch NPSM on housings mate without cross-threads, cutting swap time in half.
- Stainless & Carbide Internals—abrasion-class alloys outlast brass clones by 2 × on titanium-dioxide latex.
- Factory Pressure Rating—all wear parts carry the full 2 800 psi stamp—no mystery metal or burs hiding inside.
- Backed by Graco OEM warranty.
Core Sprayer Specifications
| Metric | Value |
|---|---|
| Max Working Pressure | 2 800 psi / 19.3 MPa |
| Max Flow | 0.24 gpm / 0.91 l min |
| Max Tip Size | 0.015″ (1 gun) |
| Motor | ⅜ hp universal, 120 V, 7.5 A |
| Generator Req. | 1 500 W minimum |
| Hose Length | 25 ft supplied — 50 ft max |
High-Rotation Parts You Should Stock
- 16E845 Pump Outlet Valve Repair Kit—OEM replacement for seat, ball, spring; solves “won’t prime” complaints in 15 minutes.
- 17J859 Piston & Packing Kit—Chromex rod + V-Max packings rated to 700 gal of latex.
- 243041 Inlet Seat & Strainer—35-mesh stainless keeps bucket trash off the valve face.
- SG2 Gun Repair Kit—springs, seals and trigger pin for the stock gun that comes with every Project Painter Plus.
- Pink (200-mesh) & Blue (100-mesh) Gun Filters—match tip ≤0.013″ or ≥0.015″ respectively.
- 515 TrueAirless Tip + Guard—replace after 40–50 gal; keep fan sharp to avoid tiger-striping.
Cross-Compatible Graco Machines that Benefit
Graco’s small-electric family shares many seals and filters, so one parts drawer covers several rigs:
- Graco X5 & X7—identical piston packings and pump outlet kit.
- Graco LTS 15 & LTS 17 big-box twins—use the same repair manual and tip guard.
- Graco 230 paint sprayer—ball/seat kit and SG2 gun internals match 1:1.
- Graco handheld sprayers (TrueCoat 360 series)—RAC IV tips interchange, streamlining trim touch-ups.
- Graco 230-bar gas paint sprayers retro-fit with electric lowers for tight interior work.
Pro Tips for Long-Term Reliability
- Strain & Stir: Use a 5-gal elastic mesh bag; trash never reaches the pump.
- Flush Every Break: 60-second water or mineral-spirits flush halves pack-off wear.
- Tip Discipline: Replace a 515 tip after 40 gal; worn tips ↑ paint use 25 %.
- Log Hours: Sharpie the frame each Monday—packings last ~100 h on wall latex.
- Keep a drywall skimming blade: Knock down orange-peel or touch missed roller fibers without breaking out sandpaper.
Frequently Asked Questions
How often should I replace the inlet strainer?
Every 50 gal or when you see visible dents—whichever comes first.
Is the 17J859 piston kit hard to install?
No—10 minutes, two wrenches, and the instruction sheet in the bag. Our tech video walks you through aligning the packing stack.
Can I run a 0.017″ tip?
Only if you like pressure spikes and pattern tails. Stick to 0.015″ max; for thicker coatings jump to a Graco X5 or 230.
Will the SG3 gun from an X7 work?
Yes—thread & flow are identical. Keep 100-mesh gun filters for enamel, 60-mesh for latex.
Ready to Paint—Not Pause?
The parts are in stock, and the price beats the big-box aisle. Add your pump kit, tip pack, and a fresh graco pump replacement parts seal to the cart now. Tomorrow’s walls won’t wait.
