Graco Magnum ProS21 Hopper Airless Sprayer – Parts, Upkeep & Compatibility Guide

The Graco Magnum ProS21 (17H213) is a durable graco electric paint sprayer featuring a hopper design—perfect for heavy coatings, stains, and high-throughput jobs. As part of the robust Pro series, this sprayer pairs professional-grade graco airless spray guns with a rugged frame that supports long work sessions and easy usability. To maintain peak performance, it’s essential to understand each component, from pistons to seals.

Why OEM Parts Matter

Your ProS21 relies on high-quality paint sprayer parts to ensure consistent output and minimal downtime. Off-brand replacements often warp, wear out, or even void your warranty. Graco spray equipment is engineered with tight tolerances and durable materials—ensuring each part lives up to strictly tested standards.

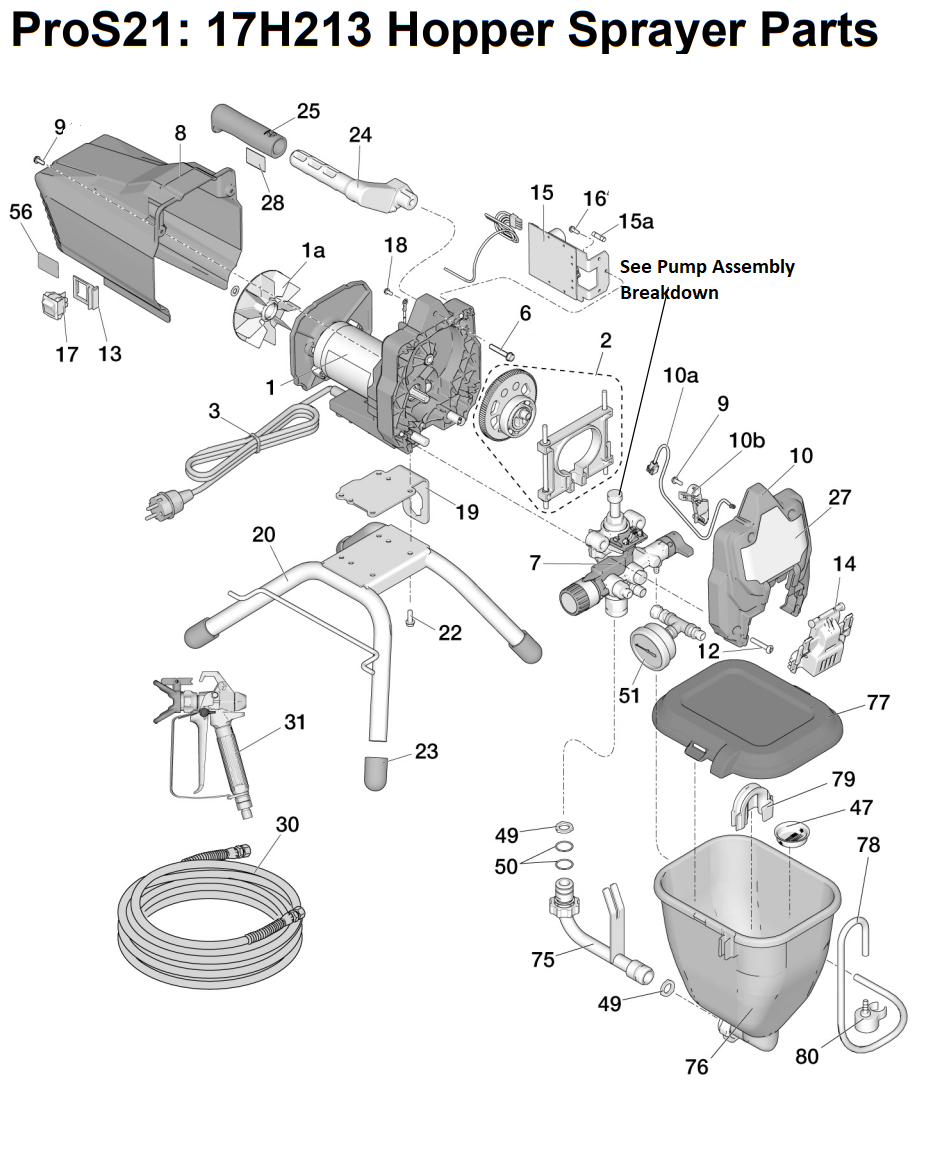

Exploded View: Understanding the ProS21 Parts Breakdown

Referencing Graco’s original parts diagram, here's a breakdown of high-wear components you’ll likely need for maintenance or repair:

1. Pump Housing (17G447)
   The core of the ProS21 pump system. It supports the pistons and seals, holding steady under up to 3,000 psi.

2. Inlet Housing Kit (17J877)
   This assembly ensures smooth spray pickup from the hopper. A failing inlet housing can cause prime issues or uneven flow.

3. Ball Guide & Compression Spring (17D364/128336)
   These internal parts regulate fluid flow through the check valves. Replacing them restores proper pumping function.

4. Ball Knocker Kit (17J878)
   This spring-loaded component helps clear clogs in the inlet valve—essential for coatings that pick up batter and debris.

5. Prime Drain Valve Spray Kit (235014)
   Upgrading to the newer Prime Drain valve ensures reliable cleaning and drain cycles in modern units.

6. Seal & O‑Ring Packs
   Across items like 16P303, 16D531, and 122486, these keep high-pressure seals intact. Replace them regularly to prevent leaks.

7. ProXChange Pump Assembly (24Y472)
   Need a full rebuild? This bolt-in paint sprayer parts kit lets you quickly restore pressure and performance without retooling.

8. Pressure Control Kit (17J881)
   Regulates spray pressure so your graco airless spray guns deliver smooth surfaces—if faulty, expect erratic output.

9. Electrical & Wiring Kits (17F227, 17F229)
   Safe wiring ensures consistent control, especially on electric models susceptible to moisture and paint exposure.

Daily Maintenance Routine

Maintaining your ProS21 is straightforward:

• After spraying, flush the pump and inlet housing thoroughly to remove residue.

• Inspect and clean the Ball Knocker—it’s a small part, but keeps the inlet valve working.

• Check seals and O‑rings monthly; replace at the first sign of wear.

• If you’re losing pressure—even after maintenance—it’s time for a ProXChange pump—or find graco pump repair near me to fix seals or pistons professionally.

Compatibility Across Graco Lines

The ProS21 shares parts with several other models:

• The pump housing, seals, and valves match those used in the ProS19 and other hopper sprayers.

• It also draws on components from the graco magnum x7 parts inventory—like pressure controls and prime valves—making it easy to source replacements.

• Many graco spray equipment accessories like RAC X tips, whip hoses, and guards are interchangeable.

Essential Accessories to Keep Stocked

Here are other parts and accessories that streamline your spraying:

• SG2 or SG3 spray guns (included in kits)—keep a backup for uninterrupted workflow.

• TrueAirless 515 tip & guard, ideal for coating and pattern control on textured surfaces.

• DuraFlex hoses, ¾″ or 3/8″, for extended reach and kink-free use.

• Paint Strainers (35 mesh) to filter contamination before fluid enters the pump.

• Accessory bundles: whip hoses, pressure rollers, and tip extension wands make projects easier.

• RAC X tip guard sets from the Magnum X7 line cover all common nozzle sizes and protect your tips.

Troubleshooting & Finding Local Repair

If your pressure drops or the pump leaks:

1. Check internal seals and O‑rings.

2. Clean inlet housing and ball assembly.

3. If issues persist, use the ProXChange assembly or contact graco pump repair near me—authorized centers service pistons and seals quickly.

Routine maintenance and timely repairs protect your investment and performance.

Key Benefits of OEM Components

• Exact tolerances mean parts fit right, not hastily.

• Factory pest resistance—O-rings are Viton or EPDM-rated for solvent durability.

• Extended warranties—using OEM parts keeps vehicle and pump warranties intact.

• Rapid shipping & diagrams—SprayersAndParts.com provides exploded parts diagrams to help you order the right item fast. 

FAQs

Can I use BlueMax hose from other Graco sprayers?
Yes. The ProS21 uses standard ¼″ NPSM hose fittings, compatible with BlueMax II hoses used on Magnum X7 and ProX lines.

Do Magnum X7 tips fit the ProS21?
Absolutely. Guards and RAC X tips interchange across models, simplifying inventory.

How do I find parts if I only know the symptom?
Use exploded diagram and part names. We recommend prime drain, ball knocker, or inlet housing based on where the problem is.

Wrapping Up

The Graco Magnum ProS21 is a heavy-duty graco electric paint sprayer ideal for contractors. Proper maintenance—including flushing, seal checks, and component replacements—ensures reliable operation. With shared parts across Magnum and ProX, and accessibility to graco magnum x7 parts and graco pump repair near me, keeping your sprayer in top condition is easier than ever.

Use SprayersAndParts.com to access exploded schematics, OEM component lists, and fast part shipping. With the right care and accessories, your ProS21 will continue to perform for years to come.
