Graco 17F233 Pump Locking Door Cover

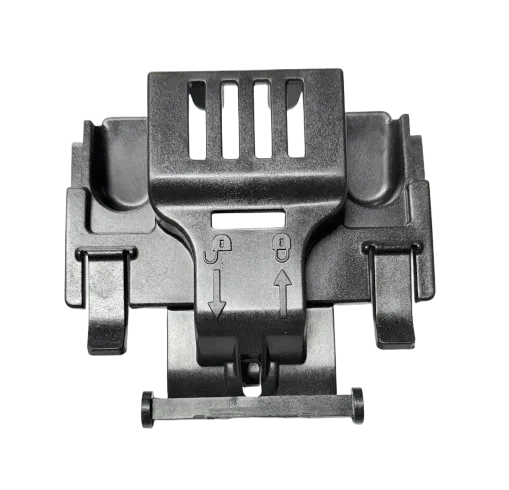

The Graco 17F233 Pump Locking Door Cover is an OEM front guard that protects the pump compartment on select Magnum ProX and GX sprayers. It ensures safe operation and easy access for maintenance.

OEM Graco part for ProX17, ProX19, ProX21 & GX FF sprayers
Protects pump area from debris and overspray
Easy to install and aligns with factory hinge and latch points
Durable construction for long-lasting performance

Based on 0 reviews

Description

Overview & Compatibility (Pump Guard 17F233)

Compatible Machines

Graco Magnum ProX17 Electric TrueAirless Sprayer — Stand (17G177)
Graco Magnum ProX17 Electric TrueAirless Sprayer — Cart (17G178)
Graco Magnum ProX19 Electric TrueAirless Sprayer — Stand (17G179)
Graco Magnum ProX19 Electric TrueAirless Sprayer — Cart (17G180)
Graco Magnum ProX21 Electric TrueAirless Sprayer — Stand (17G181)
Graco Magnum ProX21 Electric TrueAirless Sprayer — Cart (17G182)
Graco GX FF Portable Hopper Sprayer (select serial ranges)

Tip: If your model isn’t listed, share the exact model/serial and we’ll confirm fitment before you order.

What is it?

The Graco 17F233 Pump Locking Door Cover is the OEM protective front guard for the pump compartment on select Magnum ProX & GX units. It helps secure and protect the pump area from dust, overspray, and accidental contact while allowing quick access for service.

Quick Specs

Part Number	17F233
Part Type	Pump front guard / locking door cover
Compatibility	Magnum ProX17 / ProX19 / ProX21 (Stand & Cart); GX FF (select)
OEM	Genuine Graco replacement part
Function	Protects pump area, helps retain access to pump for maintenance

Why choose the OEM cover?

Exact fit for listed machines—no trimming or modification.
Durable build resists jobsite bumps and overspray.
Quick access to pump for swap-outs and routine service.

Fitment Notes

Matches the original 17F233 geometry used on ProX17/19/21 units (both Stand and Cart variants listed above).
For GX FF units, compatibility may vary by serial range. Confirm before purchase.
If your pump housing or latch hardware was previously damaged, inspect and replace related hardware as needed for a secure fit.

What’s Included

1 × Graco 17F233 Pump Locking Door Cover (front guard)

Mounting hardware not always included—reuse existing hardware if serviceable or order separately.

Install Tips

Power off and unplug the sprayer; relieve system pressure.
Open/remove old cover and inspect latch points and hinges.
Position the new 17F233 cover and verify hinge/latch alignment; tighten as required.
Cycle the cover open/closed to confirm smooth operation.

Frequently Asked Questions

It fits the listed ProX17, ProX19, and ProX21 models (Stand & Cart variants shown above). If your model is different, share the exact model/part list to confirm.

Many GX FF units use 17F233, but some serial ranges differ. Check your unit’s parts list or contact us with your serial to verify before ordering.

Yes, 17F233 is a genuine Graco part for the specified models, ensuring proper fit and durability.

Replace worn latch or hinge hardware to ensure the new pump locking door cover secures properly. We can help identify any additional parts you may need.

Provide your sprayer’s exact model number and serial. We’ll cross-reference the official parts list and confirm whether 17F233 fits or suggest the correct cover.
