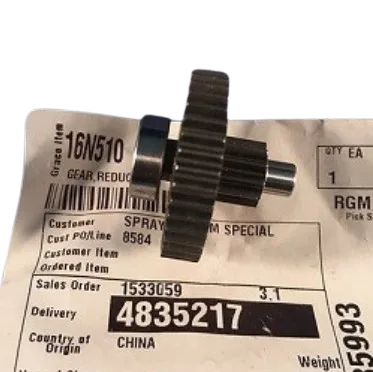

Graco 16N510 Gear Reducer

The Graco 16N510 Gear Reducer ensures stable drive performance and proper torque delivery in XForce HD and protective-coating handheld sprayers.

OEM gear reducer for select XForce HD units
Improves torque and motor-to-pump alignment
Ensures smooth, consistent spray performance

Retail Price: $37.9

You save: $0.76 (2.01%)

Our Price: $37.14

Based on 0 reviews

Description

Graco 16N510 Gear Reducer Replacement Part

Compatible Machines

Graco XForce HD 16H960
Graco XForce HD 16N927
Graco XForce HD 16N654
Graco XForce HD 16N655
Graco XForce HD 16N656
Graco Handheld Protective Coating Sprayer 3A2308A
Graco Handheld Protective Coating Sprayer 3A2308 Series

Product Details

The Graco 16N510 Gear Reducer is an OEM drive-train component designed for handheld protective-coating sprayers. This reducer stabilizes motor output speed, increases torque, and ensures reliable pump performance during high-demand coating applications.

Improves torque delivery for consistent spraying.
Ensures smooth power transfer from motor to pump assembly.
Genuine OEM component for long-term reliability.
Used in select XForce HD and protective-coating handheld sprayers.

Key Advantages

Prevents drive-train instability caused by worn reducer mechanisms.
Maintains correct operating speed for accurate product atomization.
Designed specifically for heavy-duty coating sprayer applications.
Provides optimal alignment with Graco drive housing and pump components.

Installation Notes

Confirm model and serial before ordering to ensure correct fitment.
Inspect drive housing and alignment components during installation.
Replace any worn O-rings or packings associated with the reducer section.

Frequently Asked Questions

It adjusts motor speed and increases torque to maintain stable and consistent pump performance, especially for heavy coatings.

No. This reducer is specifically designed for XForce HD and protective-coating handheld sprayers. Standard Magnum or Ultra sprayers use different drive components.

Check your sprayer’s parts manual or verify your exact model number with the compatibility list above to ensure correct fitment.
