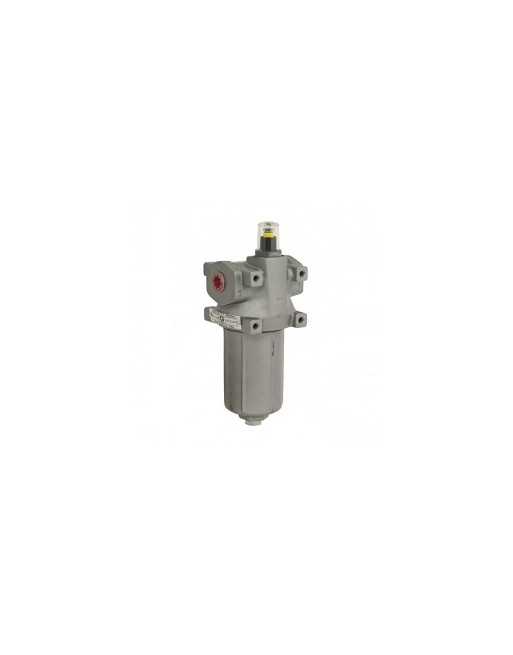

Graco 102929 HP Filter Housing

The Graco 102929 HP Filter Housing is a durable high-pressure filter body designed for industrial coating and mastic systems using Red Alert filters.

  • Max Pressure: 3000 psi (210 bar)
  • Port Size: 1¼″ NPT(F) inlet & outlet
  • Material: Aluminum, plated steel, PTFE, fluoroelastomer
  • Compatible System: Graco Red Alert high-pressure filter assemblies

$2356.2
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Overview & Specs for Graco 102929 HP Filter Housing

Industrial high-pressure filter housing for medium-to-high volume coating systems using Graco’s Red Alert filter family.

Compatible Machines / Systems

  • Selected Graco industrial high-pressure fluid systems that use Red Alert filter assemblies / bowls.
  • Systems designed for 1¼″ NPT(F) fluid inlet & outlet and up to 3000 psi (210 bar) working pressure.
  • Typical use on larger airless and plural-component rigs (confirm by parts manual for your exact model).

Product Highlights

  • High-Pressure housing engineered for demanding coating applications.
  • Works with Red Alert filter elements (e.g., common mesh sizes such as 30, 60, 100, 200—per system requirements).
  • 1¼″ NPT(F) inlet/outlet ports with drain boss (¾-16 UNF plug interface).
  • Durable wetted path materials (aluminum/iron/PTFE/fluoroelastomer/plated steel per family manual).

Technical Specifications

Part Number 102929
Description Housing, Filter, HP (High-Pressure) – Red Alert family
Max Working Pressure 3000 psi (210 bar) (per Red Alert HP filter documentation)
Fluid Ports 1¼″ NPT(F) inlet & outlet
Drain Boss ¾-16 UNF plug interface
Typical Wetted Materials Aluminum, iron, PTFE, fluoroelastomer, plated steel (family)
Approx. Dimensions ~15.6″ H × 8.4″ L × 8.4″ W (housing family reference)
Typical Shipping Weight ~32 lb (14.5 kg) (reference)
Filter Elements Compatible with Red Alert elements (mesh & stab-point types; choose mesh per material)

Selection & Compatibility Notes

  • Match the housing number on your sprayer’s parts manual to ensure interchange with 102929.
  • Choose element mesh size based on coating viscosity and tip size (coarser mesh for heavy materials; finer mesh for finishes).
  • Confirm orientation and clearance for bowl removal during maintenance.

Frequently Asked Questions

The part is the HP Filter Housing. Elements are selected and purchased separately according to your material and flow needs (e.g., 30/60/100/200 mesh where applicable).

It is rated up to 3000 psi (210 bar) with 1¼″ NPT(F) inlet and outlet and a drain boss that accepts a ¾-16 UNF plug interface (per Red Alert documentation).

It fits selected Graco industrial systems that use Red Alert high-pressure filter housings. Because OEM manuals do not publish a simple model list for 102929, confirm against your sprayer’s parts list or housing callout before ordering.

Use coarser mesh (lower number) for heavy, high-solids coatings and larger tips; use finer mesh for light finishes and small tips. Always follow material manufacturer and sprayer guidelines.
