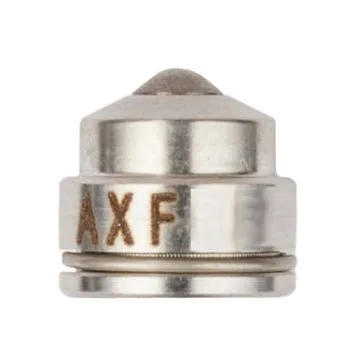

Graco AXF306 Performaa Ff Spray Tip

Graco AXF306 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.007 inches (0.178 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 4 fl oz/min (0.12 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 5.2 fl oz/min (0.15 L/min)
• Maximum Pattern Width: 6 to 8 inches (200 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is designed for fine, low-fluid output applications requiring a narrower spray pattern, making it ideal for detailed or intricate spraying jobs.
