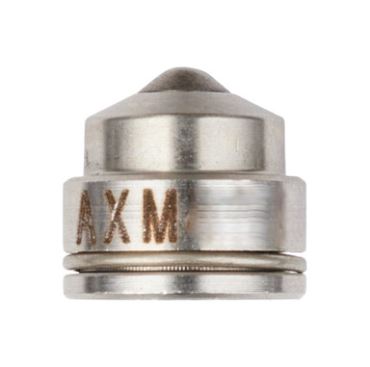

Graco AXM317 Performaa Spray Tip

Graco AXM317 Performaa Spray Tip has the following specifications:

AXM317 Specifications:

• Orifice Size:
  0.017 inches (0.432 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 20 fl oz/min (0.59 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 26.5 fl oz/min (0.78 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  6 to 8 inches (200 mm)

Key Features:

• The orifice size of 0.017 inches (0.432 mm) provides a moderate fluid output, making it suitable for spraying applications where a controlled flow and steady coverage are important.
• At 600 psi, the fluid output is 20 fl oz/min (0.59 L/min), and at 1000 psi, it increases to 26.5 fl oz/min (0.78 L/min), providing flexibility for different spraying pressures and task requirements.
• The maximum pattern width at 12 inches is between 6 to 8 inches (200 mm), allowing for a moderate spray pattern that delivers a balanced coverage area with controlled spraying.

Summary:

The AXM317 spray tip is designed for moderate fluid output with a moderate spray pattern (6 to 8 inches). It is ideal for medium to larger spraying applications where steady fluid delivery and consistent coverage are needed, such as coatings, touch-ups, and other tasks requiring control over the sprayed area.
