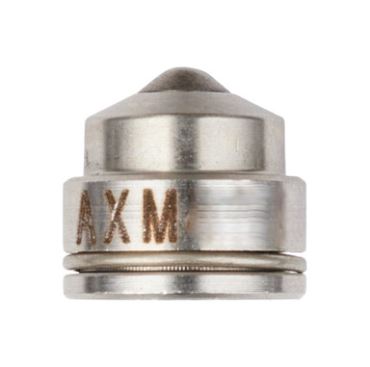

Graco AXM717 Performaa Spray Tip

Graco AXM717 Performaa Spray Tip has the following specifications:

• Orifice Size: 0.017 inches (0.432 mm)
• Fluid Output:
  • 600 psi (4.1 MPa, 41 bar): 20 fl oz/min (0.59 lpm)
  • 1000 psi (7.0 MPa, 70 bar): 26.5 fl oz/min (0.78 lpm)
• Maximum Pattern Width at 12 inches (305 mm): 14 to 16 inches (400 mm)

The AXM717 is suitable for applications where you need a higher fluid output and a broader pattern width. It provides an efficient and consistent spray coverage over larger areas while maintaining fluid flow at varying pressures.
