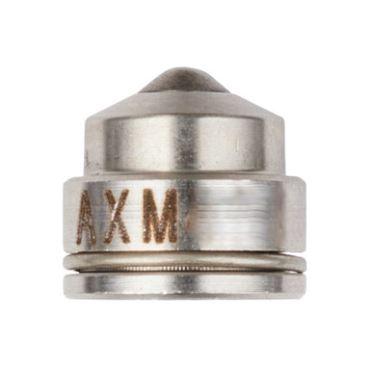

Graco AXM719 Performaa Spray Tip

Graco AXM719 Performaa Spray Tip is designed for high-efficiency spraying with specific characteristics:

• Orifice Size: 0.019 inches (0.483 mm) — this defines the size of the opening through which the fluid is sprayed.
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 28.0 fl oz/min (0.8 L/min).
  • At 1000 psi (7.0 MPa, 70 bar): 36.3 fl oz/min (1.09 L/min).
• Maximum Pattern Width: 14 to 16 inches (355 to 400 mm) at a 12-inch distance (305 mm) from the surface being sprayed. This refers to the width of the spray pattern produced by the tip.

This spray tip is ideal for tasks requiring consistent fluid delivery and a wide, even spray pattern at different pressure levels.
